| Material: | Stainless Steel 304 , 316 , 316L | Rope Constructions: | 7 X 7 , 7 X 19 |
|---|---|---|---|
| Wire Rope: | 1.2 Mm To 4.0 Mm | Mesh Orientation: | Horizontal , Vertical |
| Product Name: | Stainless Steel X-tend Inox Cable Wire Rope Mesh | Hole Shape: | Rhombus , Diamond |
| Feature: | Corrosion Resistance,beautiful,durable,Easily Assembled | Mesh Openning: | 100 X 173mm |
| High Light: | Anti Corrosion Wire Rope Mesh,Balustrade Stainless Steel Wire Rope Mesh |
||

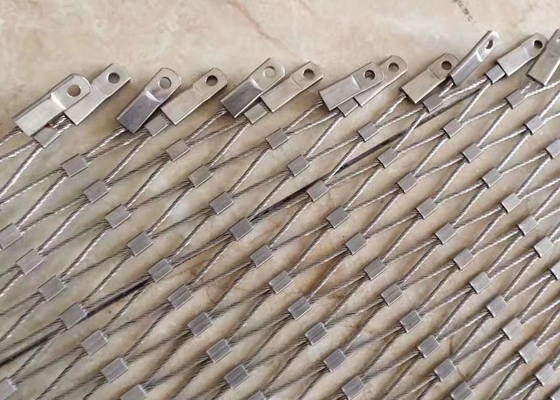

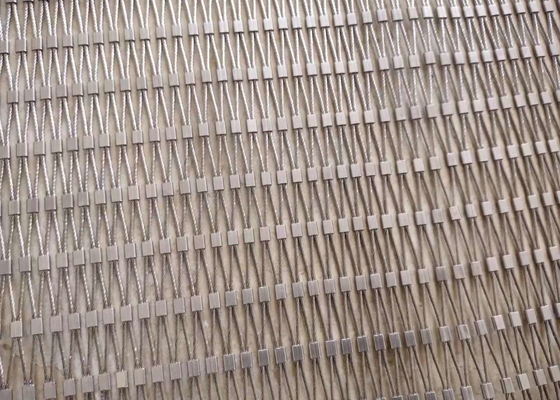

Balustrade Anti Corrosion Stainless Steel 316 Wire Rope Mesh For Protection And Safety
Stainless Steel 316 Wire Rope Mesh For Protection And Safety
Wire rope mesh is a wire mesh that satisfies protection and safety without losing beauty. In traditional concepts, thick and closed building materials are generally used for protection and security. The emergence of stainless steel woven mesh and stainless steel buckle mesh has subverted this concept. This is one of the reasons why stainless steel wire mesh is sought after by designers and architects as soon as it appears.
Wire rope mesh for protection and safety are used in a very wide range. For example: protection net for bridges, vertical safety net for observation decks, balcony railing protection net, stair fall prevention net, horizontal fall protection net around helipads, and stadium fence net. The application of wire rope mesh in this project is reliable, beautiful, but not dominant.
Stainless steel woven rope net is hand-woven with stainless steel wire. It has unique excellence. Corrosion resistance, never rust, long service life; flexible and elastic; lightweight, excellent perspective; indestructible and stable; beautiful appearance. Due to the special wire rope structure and unique weaving process, the bearing capacity and breaking force of the stainless steel wire mesh are 7 times that of the wire mesh with the same diameter. Therefore, under the same bearing capacity, the stainless steel rope net can show a light and breathable effect.
Specification:
The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19.
The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64",
the standard mesh opening size includes .1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
Specification of zoo mesh:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Recommended Balustrade Infill Cable Wire Mesh:
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 1/16" (1.6MM) | 2.5" x 2.5" | 480 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 2" x 2" | 480 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.5" x 2.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2" x 2" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 3" x 3" | 676 LBS |
Advantage:
The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customized to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
Application:
It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
