Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 304 | Thickness: | 0.5mm |
|---|---|---|---|
| Hole Diameter: | 0.8mm | Hole Distance: | 1.8mm |
| Use: | Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, And Industrial & Urban Effluent Treatment | Application: | Screen,decoration,Protecting Mesh,decorative Perforated Metal |
| Type: | Perforated Mesh | Technique: | Perforated |
| Hole Shape: | Round,diamond,octagonal | ||
| High Light: | 0.5mm Perforated Aluminium Mesh,Round Hole Perforated Aluminium Mesh,0.5mm Perforated Metal Mesh |
||

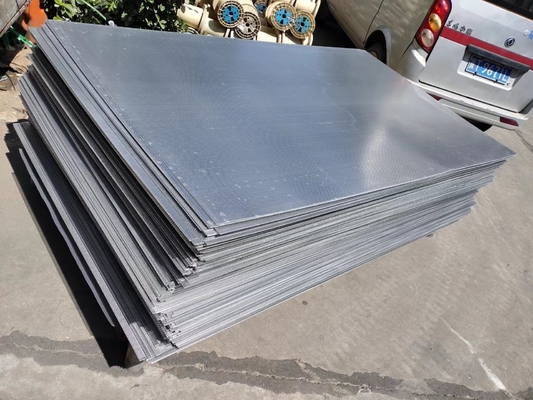

Small Round Hole Decorative Aluminum Perforated Metal Mesh For Cladding Of Building
Small Hole Decorative Aluminum Perforated Metal Mesh
Aluminium perforated metal, also known as aluminium perforated sheet or aluminium perforated panel, is an aluminium sheet that has been stamped or punched to create a patterned holes, slots, or decorative shapes. Aluminium perforated metal sheets or aluminium perforated panels are lightweight, aesthetically appealing and have great strength, thus they are generally used for cladding purposes and industrial applications. Aluminium perforated panels or aluminium perforated sheets are versatile, offers good ventilation and have high strength-to-weight ratio which is widely used in filtration applications. The holes and openings of aluminium perforated sheets can be square, round, hexagonal or slotted to match the setting style of the architectures.
Material
Aluminum perforation: light weight for use in many aerospace applications
Stainless steel perforation: used in corrosion resistant applications
Brass perforation: easy to work with and spark resistant
Titanium perforation, Nickel perforation and alloy steel perforation.
Perforated Metal Hole Patterns

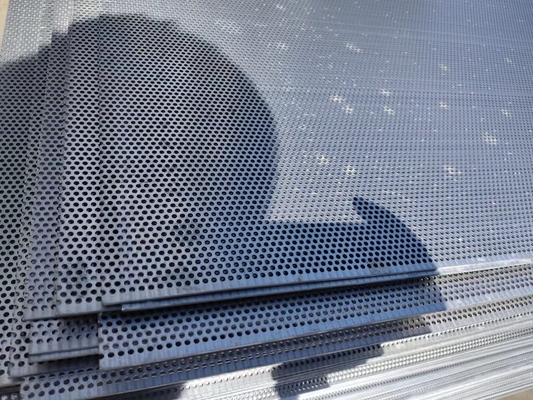

Standard Round Holes Perforations
Straight Line Round Perforations
Optional Round Perforation
Square Staggered Perforations
Straight Line Square Perforations

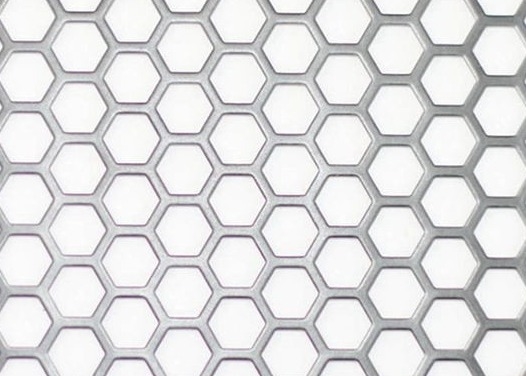

Hexagonal Staggered perforations
Ornamental Perforations
Side Staggered slots
Straight line rectangular
End Staggered Slots
Plate material |
Thickness of metal(mm ) | Hole Dia. (mm) |
Pitch (mm) |
Sheet Width(m) |
Porosity (%) |
Weight (kg/m2) |
|
| Rolling plate |
0.2 | 6 | 2 | 1 | 44 | 0.88 | |
| 0.35 | 5 | 4 | 1 | 24 | 2 | ||
| 0.45 | 6 | 3 | 1 | 35 | 2.5 | ||
| 0.8 | 3 | 3 | 1 | 19.6 | 3 | ||
| Flat plate | 0.5 | 1 | 1 | 1 | 19.6 | 3.14 | |
| 0.55 | 1.1 | 2.2 | 1 | 22.67 | 3.411 | ||
| 0.55 | 1.5 | 2.8 | 1 | 26.03 | 3.268 | ||
| 0.8 | 1.5 | 1.5 | 1 | 19.6 | 5 | ||
| 0.8 | 2 | 3.4 | 1 | 30.78 | 4.465 | ||
| 1.5 | 2 | 2 | 1 | 19.6 | 9.4 | ||
| 1.5 | 5 | 8.0 | 1 | 35.39 | 7.843 | ||
| 3 | 5 | 16 | 1 | 19.6 | 18.8 | ||
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 19.6 | 3.14 | |
| 0.8 | 1.5 | 1.5 | 1 | 19.6 | 5 | ||
| 1 | 2 | 2 | 1 | 19.6 | 6.28 | ||
| 2 | 5 | 16 | 1 | 19.6 | 6.28 | ||
| Aluminum plate |
0.5 | 1 | 1 | 1 | 19.6 | 1.08 | |
| 0.8 | 3 | 3 | 1 | 19.6 | 1.72 | ||
| 1.6 | 2 | 2 | 1 | 19.6 | 3.24 | ||
| 3 | 4 | 16 | 1 | 19.6 | 4.23 | ||
| We can do according to customer! | |||||||
APPLICATIONS
Uses of aluminium perforated metal sheet include columns cladding of building, facades, decorative roof panel, architectural, automotive, construction, chemical and energy, food processing, fencing screens and mesh covers.
