Product Details:
Payment & Shipping Terms:
|
| Features: | Even Mesh, Strong Structure | Material: | Stainless Steel Wire |
|---|---|---|---|
| Aperture: | 3/4in | Size: | 1.5mx2m |
| Install: | Hooked | ||
| High Light: | High Carbon Vibrating Screen Mesh,65Mn Mine Vibrating Screen Mesh |
||

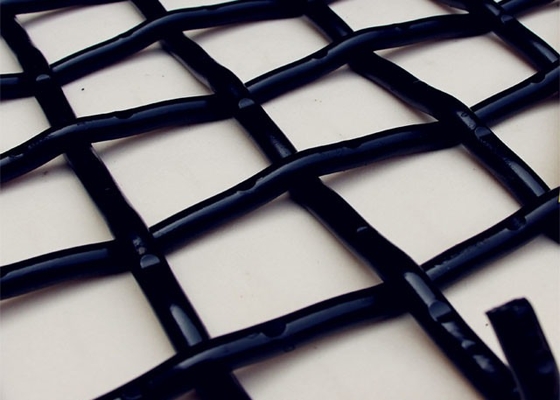

Hight Carbon Vibrating Screen Mesh for Mining and Crusher
For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high-quality production, fast parts changes and a longer part wear life will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.
1. Material:
1) Stinless steel wire(201, 202, 302, 304, 304L, 310, 316, 316L)
2) High carbon steel wire, low carbon steel, medium carbon steel, Mn steel wire, black wire.
3) Galvanized iron wire, galvanized steel wire
Aluminum wire, copper wire, non-ferrous metal wire, Other materials are available on request.
2. Crimp methods: Plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3. Features: Even mesh, strong structure
4. Specifications:

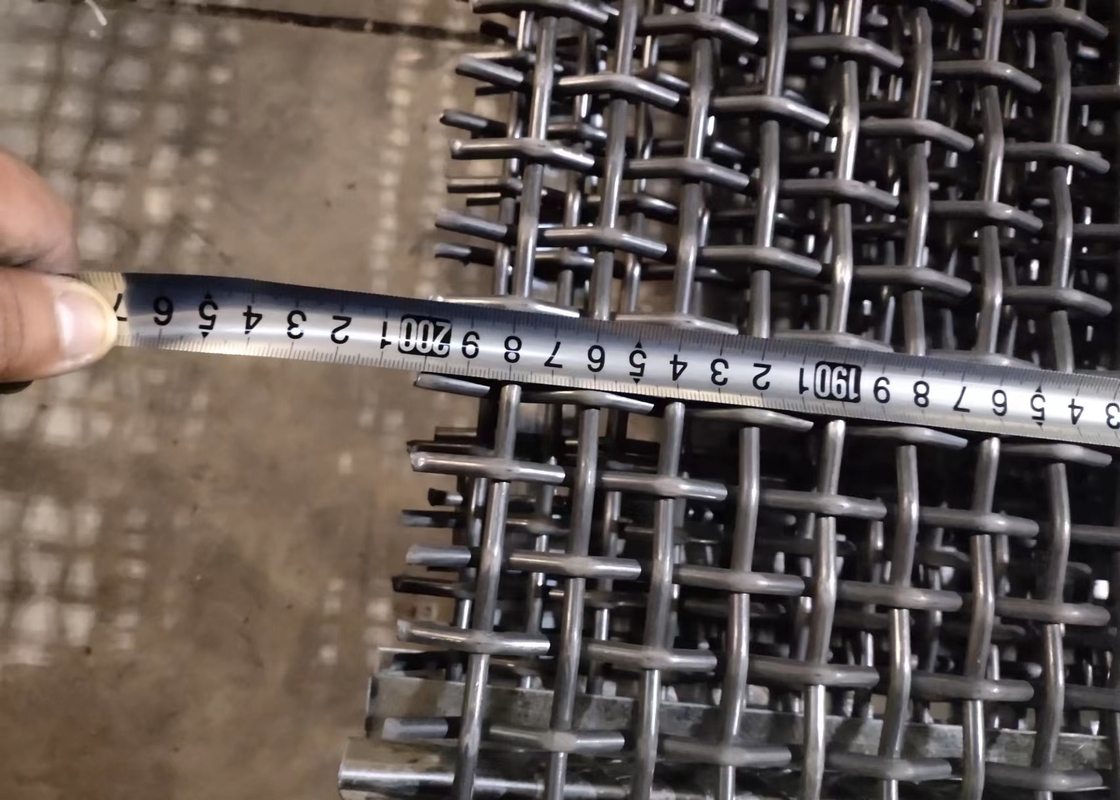

Wire diameter: 0.3mm~12mm
Hole size: 1.5mm ~50mm
Width: As request
Length: As request

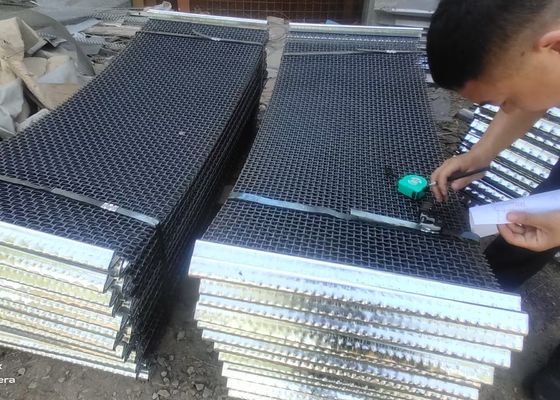

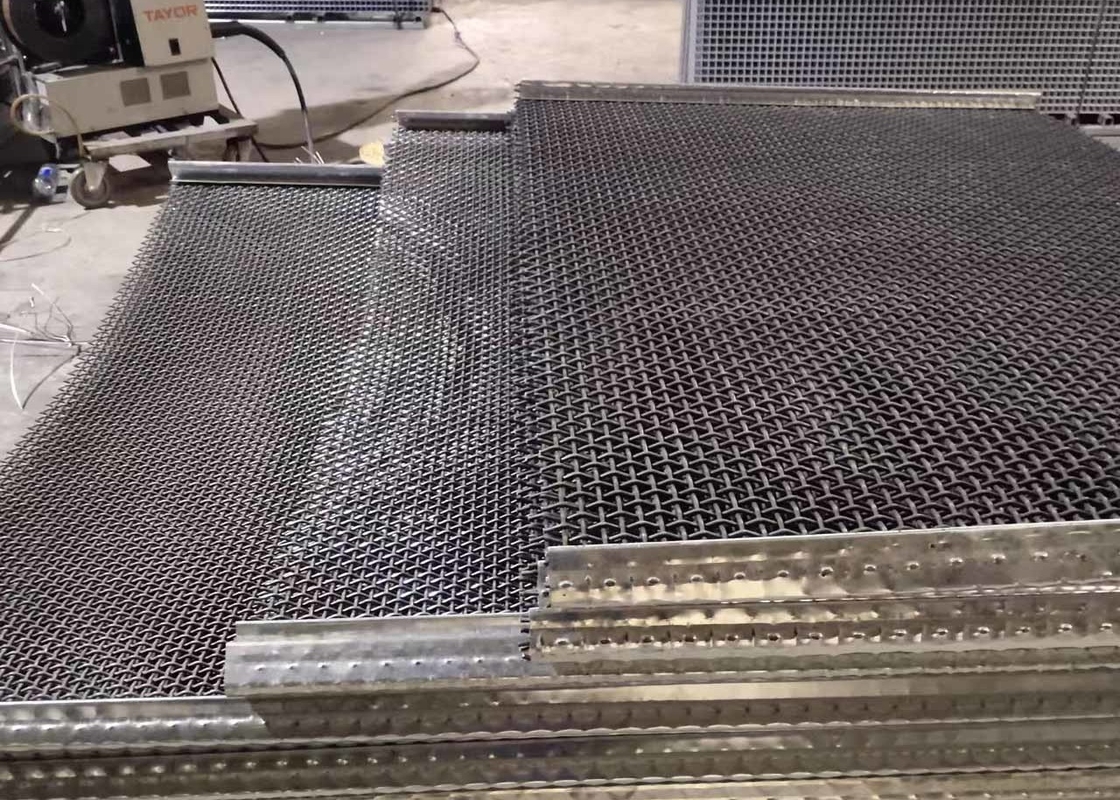

5. Hook: 60-180 degree, C hook available
Hook Covered edge: Galvanized metal or others
6. Application: It is used extensively in the minerals extraction, food and chemical processing, water and waste treatment, and construction industries, coal industry, decorate area, etc
|
Specification List of Crimped Wire Mesh/Wire Mesh for Roast |
||||
|
|
|
Mesh/Inch |
|
|
|
14 |
2.0 |
21 |
1 |
4.2 |
|
8 |
4.05 |
18 |
1 |
15 |
|
25 |
0.50 |
20 |
0.61 |
2.6 |
|
23 |
0.61 |
18 |
0.8 |
3.4 |
|
24 |
0.55 |
16 |
0.1 |
2.5 |
|
24 |
0.55 |
14 |
0.12 |
4 |
|
22 |
0.71 |
12 |
0.14 |
2.94 |
|
19 |
1 |
2.3 |
0.18 |
1.45 |
|
6 |
4.8 |
1.2 |
2 |
20 |
|
6 |
4.8 |
1 |
2 |
20 |
|
6 |
4.8 |
0.7 |
3 |
14 |
|
14 |
2.0 |
5.08 |
0.3 |
12 |
|
14 |
2.0 |
2.1 |
1 |
2.5 |
|
14 |
2.0 |
3.6 |
1.5 |
1.9 |
1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.
7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
|
NO.
|
Grade
|
Chemical Composition % | ||
| c | si | mn | ||
| 1 | 45 | 0.42-0.50 |
0.17-0.37
|
0.50-0.80
|
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
