Product Details:
Payment & Shipping Terms:
|
| Features: | Even Mesh, Strong Structure | Material: | Stinless Steel Wire |
|---|---|---|---|
| Aperture: | 3/4in | Size: | 1.5mx2m |
| Install: | Hooked | ||
| High Light: | Quarry Rock Vibrating Screen Mesh,High Tensile Vibrating Screen Mesh |
||
Heavy duty Crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio. The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped, flat mesh, etc.).
Crusher screen wire mesh is also called vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh, quarry screen mesh etc. it is wearable resistance, high frequency and longer life. Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.
Below are the popular material chemical composition:
| No. | Steel Grade | Chemical Composition | ||
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| Material | low carbon steel wire, mild steel wire, high carbon steel wire, 45# , 65Mn wire |

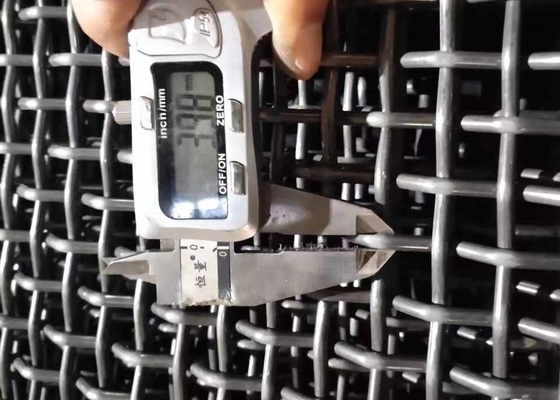

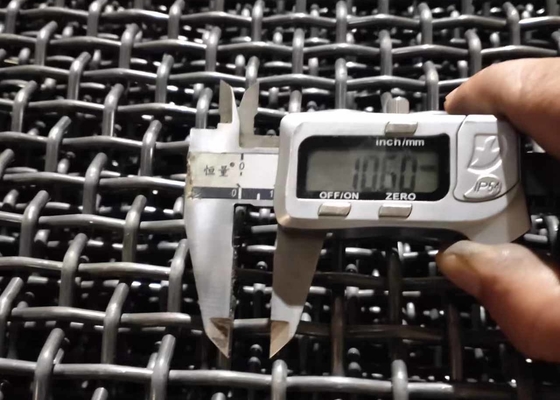

| Wire diameter | 0.3-12mm |

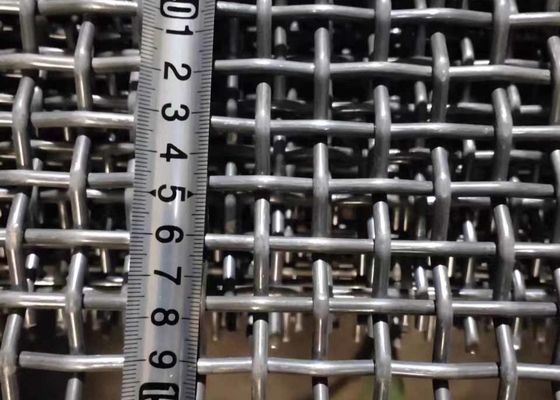

| Hole size | 0.5mm-70mm |
| Hole shape | square hole, rectangle hole. if hole is rectangle, please advice the hole length and width. |
| Hook | Flat (without hook), with hook and steel plate, with hook not with steel plate |
| Dimension | A and B. if with hook, please show it on above drawing. |
| Remark | We can produce any size crusher stone screens according to customer's requirements like different mesh opening, width or length. If you have drawings, it is best. |
1. Material:
1) Stinless steel wire(201, 202, 302, 304, 304L, 310, 316, 316L)
2) High carbon steel wire, low carbon steel, medium carbon steel, Mn steel wire, black wire.
3) Galvanized iron wire, galvanized steel wire
Aluminum wire, copper wire, non-ferrous metal wire, Other materials are available on request.
2. Crimp methods: Plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3. Features: Even mesh, strong structure
4. Specifications:
Wire diameter: 0.3mm~12mm
Hole size: 1.5mm ~50mm
Width: As request
Length: As request
5. Hook: 60-180 degree, C hook available
Hook Covered edge: Galvanized metal or others
6. Application: It is used extensively in the minerals extraction, food and chemical processing, water and waste treatment, and construction industries, coal industry, decorate area, etc
Crimped wire mesh, Square wire mesh, mining screen wire mesh Feature:
* wearable
* high temperature-proof.
* Good toughness, shake-proof and draw-proof
* keep-distance, better rate filter than sheet iron screen.
packing of vibrating screen mesh
Characteristics:
Wires are pre-crimped on one side only, leaving the other side
flat. This minimizes friction on delicate sieve material.Improves material flow with a much smoother,flatter surfaces than other weaves. Wear is equal over the whole upper surface of the screen.It is generally used with coarse material.
CRUSHER SCREEN APPLICATION:
Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts
