Mining And Quarry Screening Vibrating Screen Mesh Self Cleaning Media

Crimped wire mesh also called square wire mesh is cloth made from wire strands.The wires that make up wire mesh run parallel to the width of the roll (cross wires) and parallel to the length (line wires).The cross and line wires are interwoven.That is, the wires cross over and under each other.Wire Mesh can be woven in a number of different styles depending on the material type, wire diameter, and opening size.Crimped wire mesh is available in rolls, sheets or panels, and cut-to-size.
Screen mesh is widely used in industry, agruculture, crusher, building, house fencing and so on.

specification:
material: 65Mn high carbon steel wire,45Q# high carbon steel wire,
Wire diameter: 2.0-22mm
Hole size: 5mm-200mm as your requested
Width: 0.5-2.0M
Length: 1-30m or as your requestd
Weave Method: weaving after crimping.

Specification:

Carbon Steel Parameter:

feature
1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.
7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.

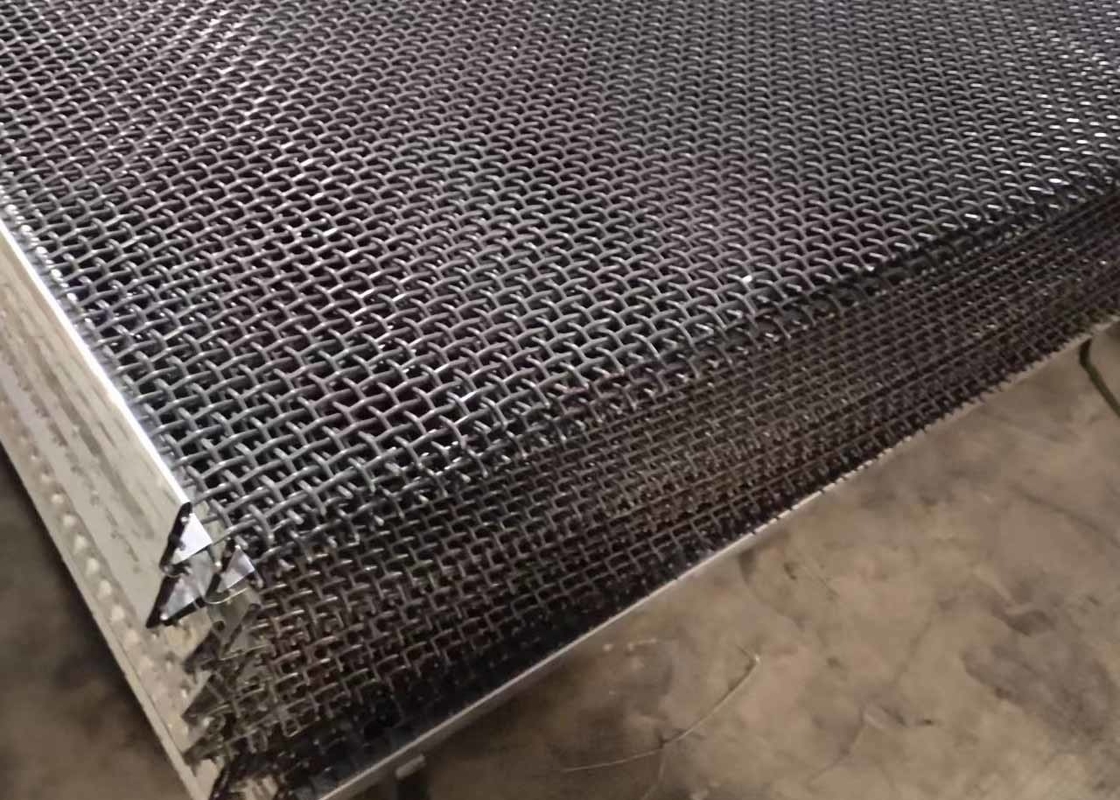

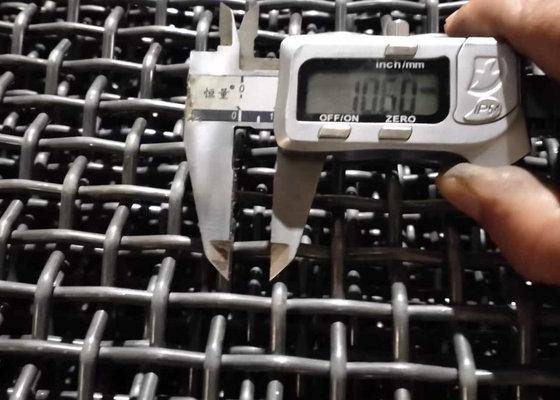

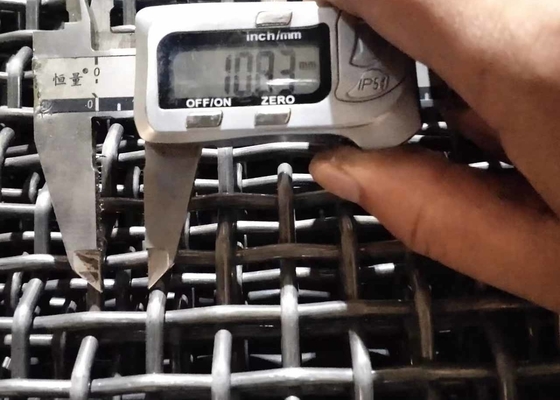

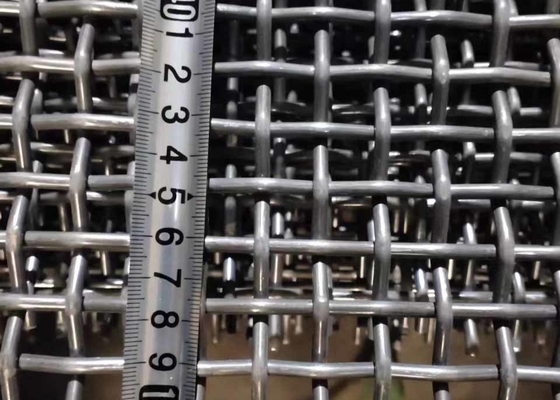

Photo:

Application:
Applies to vibrating screens or stone crusher for sieving of mine and aggregates, as well as asphalt mixer plant in road building.It also can be used in filtering and protection of petroleum, chemical industry and ocean industries with acid and alkali environment, making glass reinforce, various baskets for life and industrial use, art crafts, baskets used in the kitchen and the refrigerator.
