High Tensile Stainless Steel Weave Crimped Wire Mesh Customizable

High Tensile Stainless Steel Weave Crimped Wire Mesh Customizable
High Tensile Stainless Steel Weave Crimped Wire Mesh Customizable

Large Image :  High Tensile Stainless Steel Weave Crimped Wire Mesh Customizable

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 4mm
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 100pieces per week
Detailed Product Description
Material: Black Wire, Spring Steel Wire, 65mn Manganese Steel Wire And Stainless Steel Wire Aperture: 0.8 - 8 Mm
Size: 1.5mx1.95m Install: Hooked
Surface Treatment:: Galvanized Or Painted Mesh Size: 1mm - 100mm
Hole Type: Square, Rectangular And Long Slot.
High Light:

Customizable Crimped Wire Mesh

,

Stainless Steel Weave Crimped Wire Mesh

Customizable High Tensile Stainless Steel Weave Crimped Wire Mesh​





Crimped Mesh is also known as wave woven screen. According different materials can also be called wire crimped mesh, galvanized crimped mesh, white steel crimped mesh, black steel crimped mesh, stainless steel crimped mesh, wire crimped mesh, copper-clad steel crimped mesh. The use of different gin mesh can also be a mine sieve gin mesh, piggin mesh, barbecue gin mesh, granary gin mesh, decorative gin mesh. According to the shape can also be called a knot crimped mesh, wrapped edge crimped mesh, crimped mesh. Ginning mesh is a square mesh product with a variety of uses, which is woven by the ginning machine and then through the new mesh machine to different materials and different specifications of metal wire.



Material: Mild steel,Medium carbon steel,High carbon steel,Manganese wire, Spring steel,High tensile wire,Stainless steel etc.
Mesh: Square mesh and Triple Slot mesh.
Crimping: Double crimped,Inter crimped,Lock crimped etc.
Opening: 3mm to 150mm with wires 1.4mm to 12.7mm thick;
pecification: width up to 2.2m, no length limitation.
Edge: Raw Edge,plated sheathed,hooked,inner plated welded etc.
Thinner wire screen can also be supplied in rolls.
Screens are consumables,so we focus on quality to win long term business cooperation.





vibrating screen mesh sheets



Specification:

Crimped wire mesh specifications list
Wire No. Wire diameter(mm) Mesh Hole diameter(mm) Weight(kg/sqm)
14 2.0 21 1 4.2
8 4.05 18 1 15
25 0.50 20 0.61 2.6
23 0.61 18 0.8 3.4
24 0.55 16 0.1 2.5
24 0.55 14 0.12 4
22 0.71 12 0.14 2.94
19 1 2.3 0.18 1.45
6 4.8 1.2 2 20
6 4.8 1 2 20
6 4.8 0.7 3 14
14 2.0 5.08 0.3 12
14 2.0 2.1 1 2.5
14 2.0 3.6 1.5 1.9



No. Grade chemical composition(%) C Si Mn Wire diameter(mm)
1 45 0.42-0.50 0.17-0.37 0.50-0.80 2.00-6.00
2 50 0.47-0.55 0.17-0.37 0.50-0.80
3 55 0.52-0.60 0.17-0.37 0.50-0.80
4 50 0.57-0.65 0.17-0.37 0.50-0.80
5 65 0.62-0.70 0.17-0.37 0.50-0.80
6 70 0.67-0.75 0.17-0.37 0.50-0.80 2.00-6.00
7 65Mn 0.62-0.70 0.17-0.37 0.90-1.20 2.00--14.0

Features:

wear resistance, high temperature resistance, toughness, seismic resistance to tension, no disturbance, screen penetration rate is better than steel plate, iron sheet screen.



Photo:

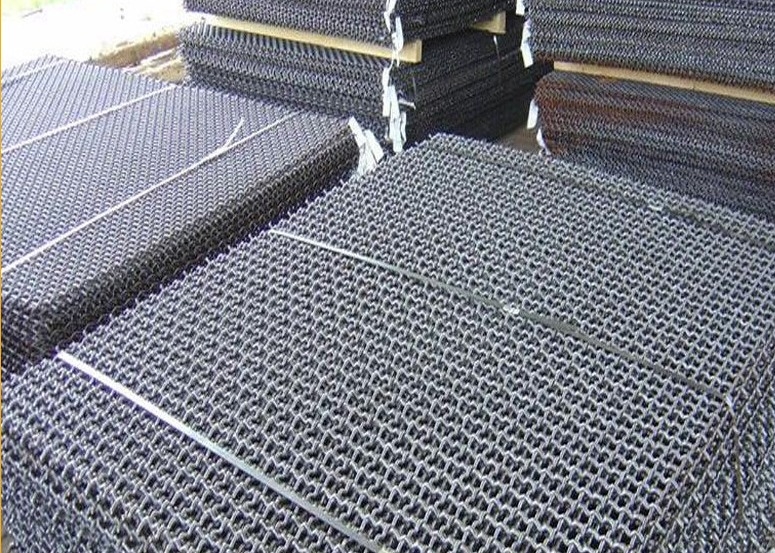

vibrating screen mesh

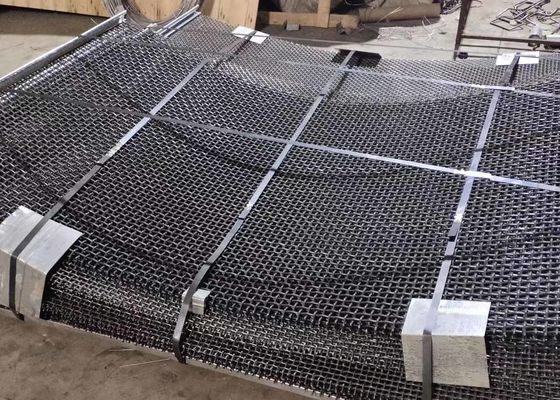

vibrating screen mesh



Application:
Applies to vibrating screens or stone crusher for sieving of mine and aggregates, as well as asphalt mixer plant in road building.It also can be used in filtering and protection of petroleum, chemical industry and ocean industries with acid and alkali environment, making glass reinforce, various baskets for life and industrial use, art crafts, baskets used in the kitchen and the refrigerator.

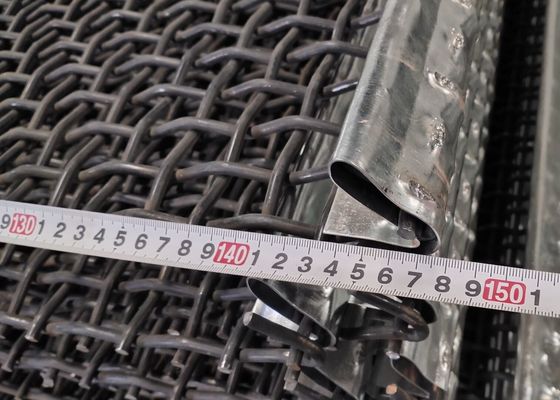

vibrating screen mesh
