Black Iron Square Woven Crimped Vibrating Screen Mesh 1.5mx1.95m

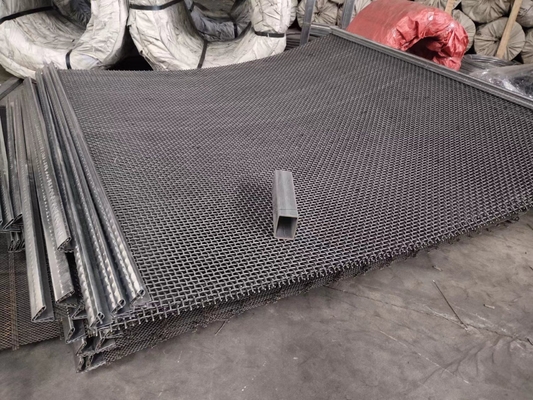

Large Image : Black Iron Square Woven Crimped Vibrating Screen Mesh 1.5mx1.95m

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	4mm

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	pallets
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	100pieces per week

Contact Now

Detailed Product Description

Material:	Black Wire, Spring Steel Wire, 65mn Manganese Steel Wire And Stainless Steel Wire	Aperture:	0.8 - 8 Mm
Size:	1.5mx1.95m	Install:	Hooked
Surface Treatment::	Galvanized Or Painted	Mesh Size:	1mm - 100mm
Hole Type:	Square, Rectangular And Long Slot.
Highlight:	Square Woven Crimped Wire Mesh , Crimped Vibrating Screen Mesh , Black Iron Vibrating Screen Mesh

Black Iron Square Woven Crimped Wire Mesh Vibrating Screen Mesh

Customizable High Tensile Stainless Steel Weave Crimped Wire Mesh

Crimped Mesh is also known as wave woven screen. According different materials can also be called wire crimped mesh, galvanized crimped mesh, white steel crimped mesh, black steel crimped mesh, stainless steel crimped mesh, wire crimped mesh, copper-clad steel crimped mesh. The use of different gin mesh can also be a mine sieve gin mesh, piggin mesh, barbecue gin mesh, granary gin mesh, decorative gin mesh. According to the shape can also be called a knot crimped mesh, wrapped edge crimped mesh, crimped mesh. Ginning mesh is a square mesh product with a variety of uses, which is woven by the ginning machine and then through the new mesh machine to different materials and different specifications of metal wire.

Material: Mild steel,Medium carbon steel,High carbon steel,Manganese wire, Spring steel,High tensile wire,Stainless steel etc.
Mesh: Square mesh and Triple Slot mesh.
Crimping: Double crimped,Inter crimped,Lock crimped etc.
Opening: 3mm to 150mm with wires 1.4mm to 12.7mm thick;
pecification: width up to 2.2m, no length limitation.
Edge: Raw Edge,plated sheathed,hooked,inner plated welded etc.
Thinner wire screen can also be supplied in rolls.
Screens are consumables,so we focus on quality to win long term business cooperation.

Black Iron Square Woven Crimped Vibrating Screen Mesh 1.5mx1.95m 0

Specification:

Material Grade	Chemical Composition			Wire Diameter
	C	Si	Mn	mm
45	0.42-0.50	0.17-0.37	0.50-0.80	2.00-6.00
50	0.47-0.55
55	0.52-0.60
60	0.57-0.65
65	0.62-0.70
72	0.67-0.75
65Mn	0.62-0.70		0.90-1.20	2.00-14.0
Aperture width/hole size		0.75-100
Width & Length		12m, 22.5m
Weaving type		Double Crimp Screen, Single Intermediate Crimp Screen, Double Intermediate Crimp Screen, Lock Crimp Screen
Edge type		Cut Edges, Plain Hooks, Sheathed Hooks

Note: Special size and specifications can be made according to customers requires.

No.	Grade	chemical composition(%) C	Si	Mn	Wire diameter(mm)
1	45	0.42-0.50	0.17-0.37	0.50-0.80	2.00-6.00
2	50	0.47-0.55	0.17-0.37	0.50-0.80
3	55	0.52-0.60	0.17-0.37	0.50-0.80
4	50	0.57-0.65	0.17-0.37	0.50-0.80
5	65	0.62-0.70	0.17-0.37	0.50-0.80
6	70	0.67-0.75	0.17-0.37	0.50-0.80	2.00-6.00
7	65Mn	0.62-0.70	0.17-0.37	0.90-1.20	2.00--14.0

Features:

wear resistance, high temperature resistance, toughness, seismic resistance to tension, no disturbance, screen penetration rate is better than steel plate, iron sheet screen.

Photo:

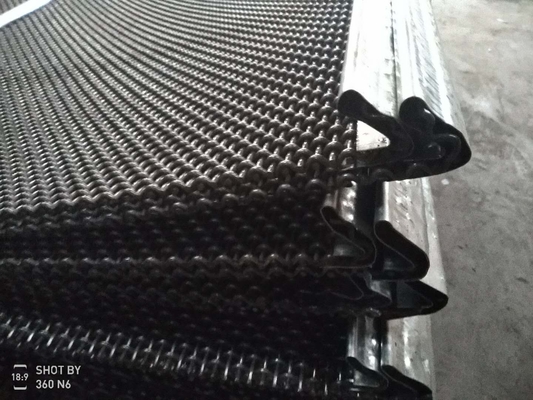

Black Iron Square Woven Crimped Vibrating Screen Mesh 1.5mx1.95m 2

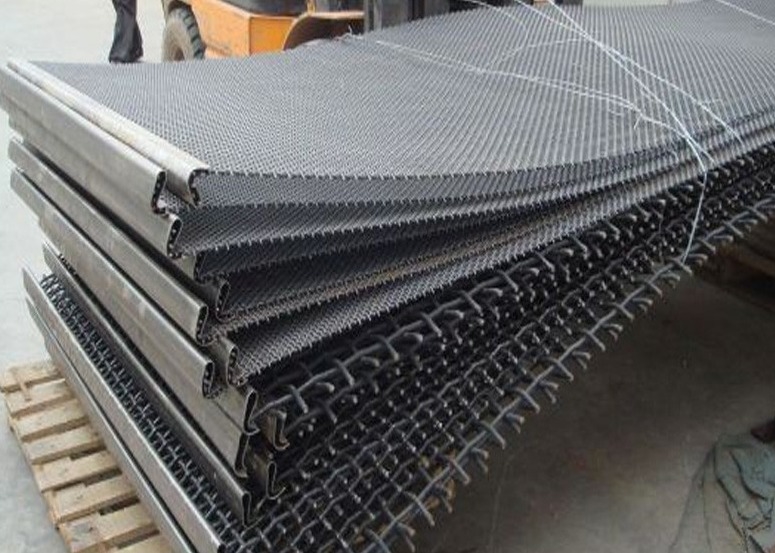

Black Iron Square Woven Crimped Vibrating Screen Mesh 1.5mx1.95m 3

Application:
Applies to vibrating screens or stone crusher for sieving of mine and aggregates, as well as asphalt mixer plant in road building.It also can be used in filtering and protection of petroleum, chemical industry and ocean industries with acid and alkali environment, making glass reinforce, various baskets for life and industrial use, art crafts, baskets used in the kitchen and the refrigerator.

Black Iron Square Woven Crimped Vibrating Screen Mesh 1.5mx1.95m 4
