Product Details:
Payment & Shipping Terms:
|
| Material: | Black Wire, Spring Steel Wire, 65mn Manganese Steel Wire And Stainless Steel Wire | Aperture: | 0.8 - 8 Mm |
|---|---|---|---|
| Size: | 1.5mx1.95m | Install: | Hooked |
| Surface Treatment:: | Galvanized Or Painted | Mesh Size: | 1mm - 100mm |
| Hole Type: | Square, Rectangular And Long Slot. | ||
| High Light: | Mining Equipment Vibrating Screen Mesh,Painted Vibrating Screen Mesh,4mm Mining Screen Mesh |
||
Mining Equipment Vibrating Screen Mesh For Screening
Mining screen, also known as vibrating screen mesh, quarry screen, and crusher screen, is one of the most
important and versatile parts of screening machines in the mining industry, which separates a mix of particles into two or more groups
depending on size and is widely used in a variety of sizing, grading, scalping, dewatering, wet screening, and washing applications.
In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.
Material: Mild steel,Medium carbon steel,High carbon steel,Manganese wire, Spring steel,High tensile wire,Stainless steel etc.
Mesh: Square mesh and Triple Slot mesh.
Crimping: Double crimped,Inter crimped,Lock crimped etc.
Opening: 3mm to 150mm with wires 1.4mm to 12.7mm thick;
pecification: width up to 2.2m, no length limitation.
Edge: Raw Edge,plated sheathed,hooked,inner plated welded etc.
Thinner wire screen can also be supplied in rolls.
Screens are consumables,so we focus on quality to win long term business cooperation.
Specification:
| Material Grade | Chemical Composition | Wire Diameter | ||
| C | Si | Mn | mm | |
| 45 | 0.42-0.50 | 0.17-0.37 |
0.50-0.80 |
2.00-6.00 |
| 50 | 0.47-0.55 | |||
| 55 | 0.52-0.60 | |||
| 60 | 0.57-0.65 | |||
| 65 | 0.62-0.70 | |||
| 72 | 0.67-0.75 | |||
| 65Mn | 0.62-0.70 | 0.90-1.20 | 2.00-14.0 | |
| Aperture width/hole size | 0.75-100 | |||
| Width & Length | 1*2m, 2*2.5m | |||
| Weaving type | Double Crimp Screen, Single Intermediate Crimp Screen, Double Intermediate Crimp Screen, Lock Crimp Screen | |||
| Edge type | Cut Edges, Plain Hooks, Sheathed Hooks | |||
Note: Special size and specifications can be made according to customers requires.
| No. | Grade | chemical composition(%) C | Si | Mn | Wire diameter(mm) |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 2.00-6.00 |
| 2 | 50 | 0.47-0.55 | 0.17-0.37 | 0.50-0.80 | |
| 3 | 55 | 0.52-0.60 | 0.17-0.37 | 0.50-0.80 | |
| 4 | 50 | 0.57-0.65 | 0.17-0.37 | 0.50-0.80 | |
| 5 | 65 | 0.62-0.70 | 0.17-0.37 | 0.50-0.80 | |
| 6 | 70 | 0.67-0.75 | 0.17-0.37 | 0.50-0.80 | 2.00-6.00 |
| 7 | 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | 2.00--14.0 |
Features:
wear resistance, high temperature resistance, toughness, seismic resistance to tension, no disturbance, screen penetration rate is better than steel plate, iron sheet screen.

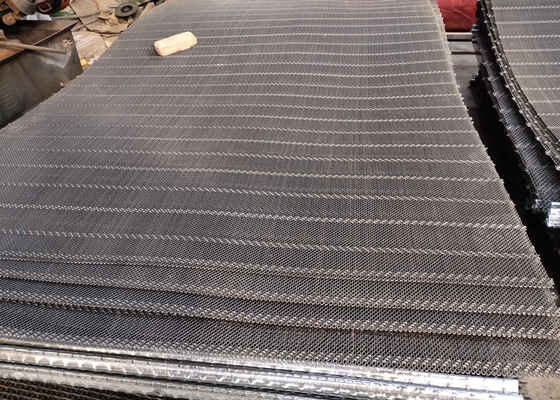

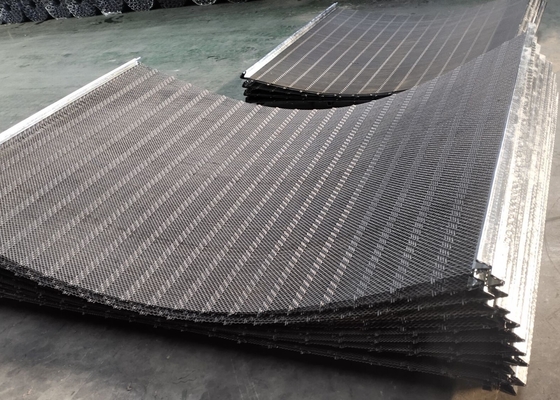

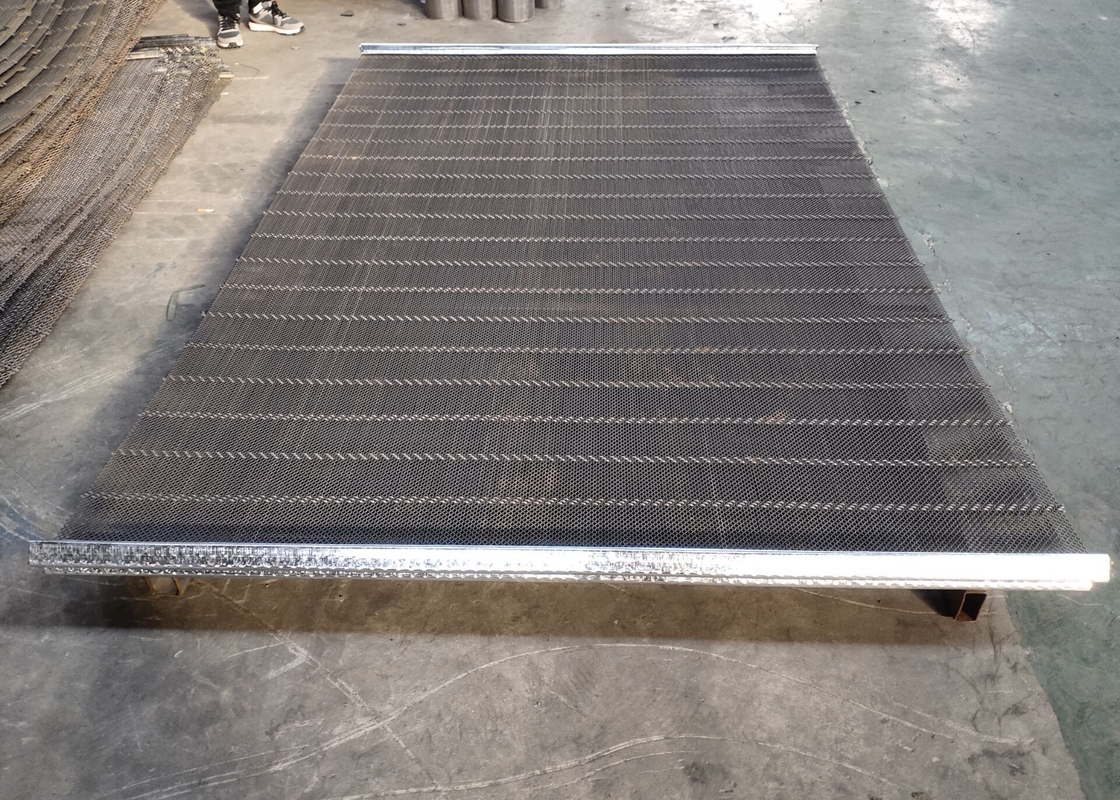

Photo:
Application:
Applies to vibrating screens or stone crusher for sieving of mine and aggregates, as well as asphalt mixer plant in road building.It also can be used in filtering and protection of petroleum, chemical industry and ocean industries with acid and alkali environment, making glass reinforce, various baskets for life and industrial use, art crafts, baskets used in the kitchen and the refrigerator.
