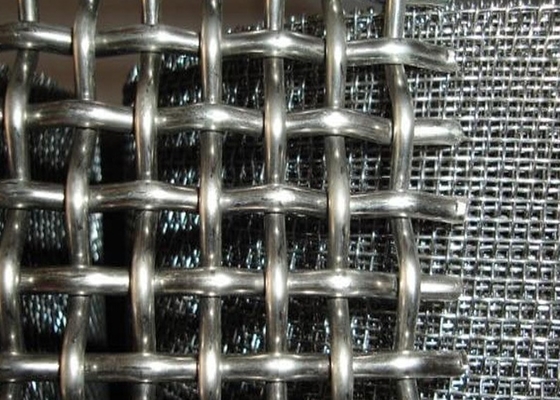

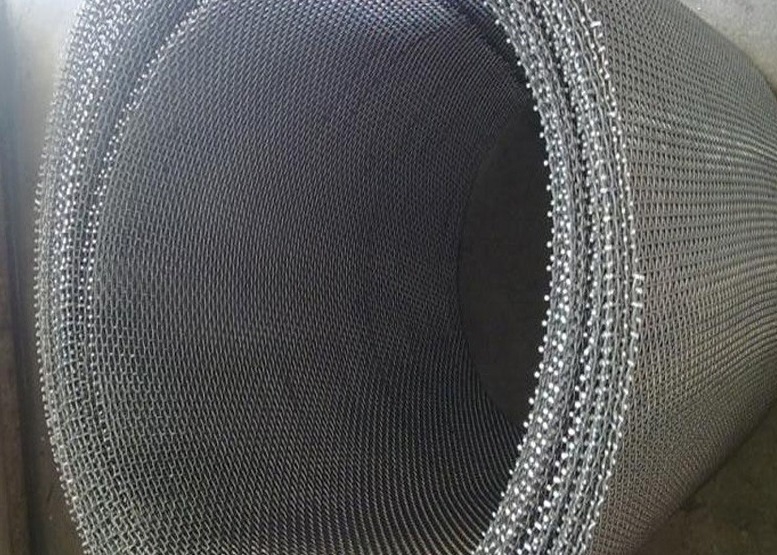

100 Micron 150 Mesh Ss 304 Stainless Steel Woven Wire Mesh Screen
Stainless steel wire mesh is mainly made of stainless steel wire by weaving or welding, and the shape is cloth or grid. Other manufacturing
methods include punching and expanding with steel plates. Because the material contains a lot of chromium and nickel, it has good corrosion
resistance, and most of our materials are mainly 304 stainless wire and 316 stainless wire.
Material: SS 201, 202, 304, 304L, 316, 316L, 321, 430, etc.
Types of weave: Plain Weave, Twill Weave or Dutch Weave
Mesh count: 1-635 mesh
Diameter: 0.0008″-0.08″ (0.02-2.0 mm)
Standard width/roll: 3 ft (36 in.), or 1 m in metric, customization available
Standard length/roll: 100 ft (1,200 in.), or 30m in metric, customization available
Packing: Bubble film, kraft, plastic cloth, wooden case
Use: Filters, sieve, chemical industry, mine industry, paper-making, etc.
Delivery Time: 5 days for stock material
| Mesh | Guage | Wire dia (mm) |
8 |
24 | 0.558 |
| 26 | 0.457 | |
| 27 | 0.400 | |
| 28 | 0.376 | |
10 |
24 | 0.558 |
| 26 | 0.457 | |
| 28 | 0.376 | |
12 |
24 | 0.558 |
| 26 | 0.457 | |
| 27 | 0.400 | |
| 28 | 0.376 | |
| 30 | 0.315 | |
14 |
24 | 0.558 |
| 26 | 0.457 | |
| 27 | 0.400 | |
16 |
27 | 0.400 |
| 28 | 0.376 | |
| 30 | 0.315 | |
18 |
26 | 0.457 |
| 28 | 0.376 | |
20 |
26 | 0.457 |
| 28 | 0.376 | |
| 30 | 0.315 | |
| 32 | 0.274 | |
30 |
30 | 0.315 |
| 32 | 0.274 | |
| 34 | 0.234 | |
40 |
32 | 0.274 |
| 33 | 0.254 | |
| 34 | 0.234 | |
| 36 | 0.193 | |
| 37 | 0.173 | |
| 50 |
34 | 0.234 |
| 36 | 0.193 | |
| 38 | 0.152 | |
| 60 | 34 | 0.234 |
| 38 | 0.152 | |
80 |
38 | 0.152 |
| 40 | 0.122 | |
| 42 | 0.102 | |
100 |
41 | 0.112 |
| 42 | 0.102 | |
| 43 | 0.091 | |
| 200 | 47 | 0.051 |
300 |
48 | 0.041 |
| 49 | 0.031 |
