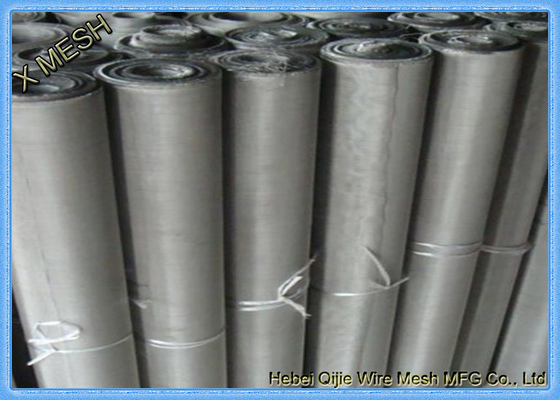

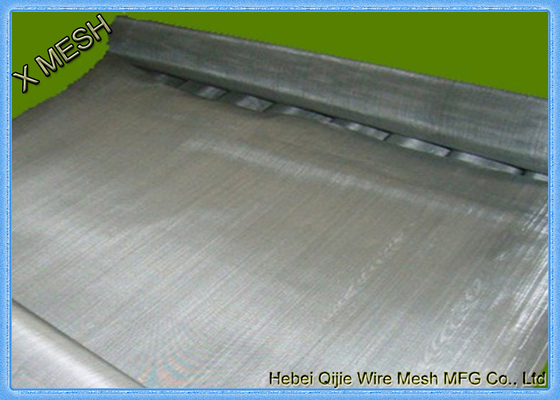

Stainless Steel Woven Wire Mesh For Liquid Filter Mesh

Stainless Steel Woven Wire Mesh For Liquid Filter Mesh
Stainless Steel Woven Wire Mesh For Liquid Filter Mesh Stainless Steel Woven Wire Mesh For Liquid Filter Mesh

Large Image :  Stainless Steel Woven Wire Mesh For Liquid Filter Mesh

Product Details:
Place of Origin: HeBei,China
Brand Name: QiJie
Certification: Certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 rolls
Price: Discuss
Packaging Details: Wooden carton
Delivery Time: within 7-30 days
Payment Terms: 30%TT
Supply Ability: 1500 Roll/Rolls per Week
Detailed Product Description
Type: Weave Wire Mesh, Wire Cloth, Crimped Wire Mesh, Rope Mesh, Welded Mesh Material: Stainless Steel Wire
Technique: Woven, Welded Mesh Application: Woven Wire Mesh, Filters, Screen, Decorative Wire Mesh, Protecting Mesh
Weave Style: Stainless Steel Wire, 316, 304, Copper, Plain Steel Galvanized Hole Shape: Square Hole, Round
Usage: Liquid Filter, Chmical Industry, Oil, Filtration, Filtering And Sieveing
High Light:

Round Hole SS Woven Wire Mesh

,

Square Hole SS Woven Wire Mesh

,

Liquid Filter Ss Woven Mesh

Stainless Steel Woven Wire Mesh for Filter Mesh Factory





STAINLESS STEEL WIRE MESH
316 Advantages of stainless steel mesh:
8cr-12ni-2.5mo has excellent corrosion resistance, atmospheric corrosion resistance and high temperature strength due to the addition of Mo, so it can be used in harsh conditions, and it is less likely to be corroded than other chromium-nickel stainless steels in brine, sulfur water or brine. The corrosion resistance is better than that of 304 stainless steel mesh, and it has good corrosion resistance in pulp and paper production. Moreover, 316 stainless steel mesh is more resistant to ocean and aggressive industrial atmosphere than 304 stainless steel mesh.
304 Advantages of Stainless Steel Mesh:
304 stainless steel mesh has excellent corrosion resistance and intergranular corrosion resistance. In the experiment, it is concluded that 304 stainless steel mesh has strong corrosion resistance in nitric acid with concentration ≤65% below boiling
temperature. It also has good corrosion resistance to alkali solution and most organic and inorganic acids.

producut name stainless steel wire mesh
use It is widely used in mining, chemical, food,petroleum, medicine, machinery and other industries.
material 304,316,316Lstainless steel



Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth
Meshes Per Linear Inch Diameter of Wire Width of Opening Open
Area, %

  Inches mm Inches mm
1 0.135 3.5 0.865 21.97 74.8
1 0.120 3.0 0.880 22.35 77.4
1 0.105 2.5 0.895 22.73 80.1
1 0.080 2.0 0.920 23.36 84.6
3/4" 0.120 3.0 0.630 16.00 70.5
3/4" 0.080 2.0 0.670 17.01 79.8
2 x 2 0.120 3.0 0.380 9.65 57.8
2 x 2 0.105 2.5 0.395 10.03 62.4
2 x 2 0.080 2.0 0.420 10.66 70.6
2 x 2 0.063 1.6 0.437 11.10 76.4
2 x 2 0.047 1.2 0.453 11.50 82.1
3 x 3 0.080 2.0 0.253 6.42 57.6
3 x 3 0.063 1.6 0.270 6.85 65.6
3 x 3 0.047 1.2 0.286 7.26 73.6
4 x 4 0.080 2.0 0.170 4.31 46.2
4 x 4 0.063 1.6 0.187 4.75 56.0
4 x 4 0.047 1.2 0.203 5.15 65.9
5 x 5 0.047 1.2 0.153 3.88 58.5
5 x 5 0.041 1.0 0.159 4.01 63.2
6 x 6 0.063 1.6 0.104 2.64 38.9
6 x 6 0.047 1.2 0.120 3.04 51.8
6 x 6 0.035 0.9 0.132 3.35 62.7
8 x 8 0.063 1.6 0.062 1.57 24.6
8 x 8 0.047 1.2 0.078 1.98 38.9
8 x 8 0.035 0.9 0.090 2.28 51.8
8 x 8 0.032 0.8 0.093 2.36 55.4
8 x 8 0.028 0.7 0.097 2.46 60.2
10 x 10 0.047 1.2 0.053 1.34 28.1
10 x 10 0.035 0.9 0.065 1.65 42.3
10 x 10 0.032 0.8 0.068 1.27 46.2
10 x 10 0.025 0.63 0.075 1.90 56.3
12 x 12 0.041 1.0 0.042 1.06 25.4
12 x 12 0.035 0.9 0.048 1.22 33.2
12 x 12 0.032 0.8 0.051 1.29 37.5
12 x 12 0.028 0.7 0.055 1.39 43.6
12 x 12 0.023 0.58 0.060 1.52 51.8
14 x 14 0.032 0.8 0.039 1.52 29.8
14 x 14 0.025 0.63 0.046 0.99 41.5
14 x 14 0.020 0.5 0.051 1.30 51.0
Please consult us for details about other sizes
