Product Details:
Payment & Shipping Terms:
|
| Type: | Weave Wire Mesh, Wire Cloth, Crimped Wire Mesh, Rope Mesh, Welded Mesh | Material: | Stainless Steel Wire |
|---|---|---|---|
| Technique: | Woven, Welded Mesh | Application: | Woven Wire Mesh, Filters, Screen, Decorative Wire Mesh, Protecting Mesh |
| Weave Style: | Stainless Steel Wire, 316, 304, Copper, Plain Steel Galvanized | Hole Shape: | Square Hole, Round |
| Usage: | Liquid Filter, Chmical Industry, Oil, Filtration, Filtering And Sieveing | ||
| High Light: | Flat Stainless Steel Woven Wire Mesh,Flat Surface Stainless Steel Wire Mesh |
||

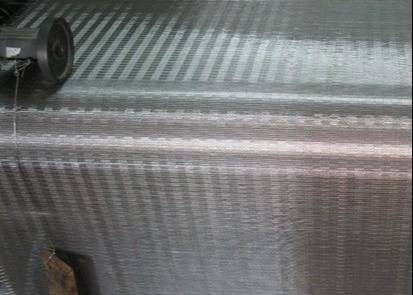

Flat Surface High Precision Woven Stainless Steel Wire Mesh

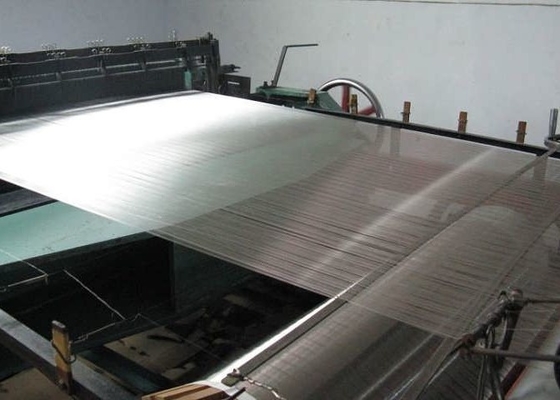

Stainless steel mesh is wire mesh, which is produced using weaving technology specially adapted to the material. The wires used can have a diameter of 12 µm to 7 mm, depending on the stainless steel alloy.
In industry, stainless steel mesh is mainly used in filtration and separation technology.
The stainless steel alloys used are crucial in determining the fields of use in terms of corrosion, temperatures and strengths. The currently available materials made of stainless steel and its alloys can be used in extremely corrosive environments as well as in applications exposed to very high temperatures.

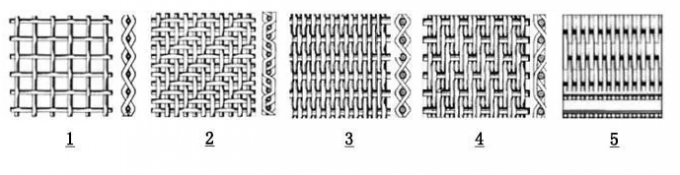

Woven type available
1. [ Plain Weave ]: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves.
In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern.
Each weft thread crosses the warp threads by going over one, then under the next, and so on.
The next weft thread goes under the warp threads that its neighbor went over, and vice verse.
2. [ Twill Weave ]: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left,
forming a distinct diagonal line. This diagonal line is also known as a wale.
A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. [ Plain Dutch Weave ]: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. [ Twill Dutch Weave ]: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. [ Reversed Dutch Weave ]: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Specifications
| Maishi Plain Weave Stainless Steel Woven Wire Mesh | ||||||
| Mesh/inch | Wire diameter (mm) |
Aperture (mm) |
-- | Mesh/inch | Wire diameter (mm) |
Aperture (mm) |
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 500mesh | 0.025 | 0.0385 | |

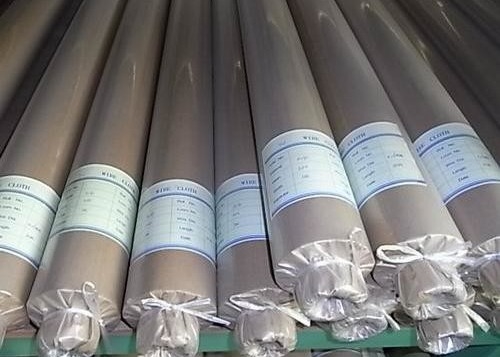

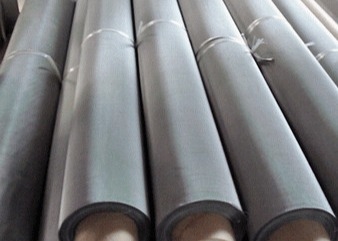

| Technical Note: 1.Standard roll length:15.24m, 30m, 30.5m, 61m 2.Standard roll width:0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25') 3.Special sizes available at request 4.Packing:In waterproof paper, PVC bag, wooden case.Custom packing available at request. 5. If you did not find the mesh you want, please contact us. |
||||||
