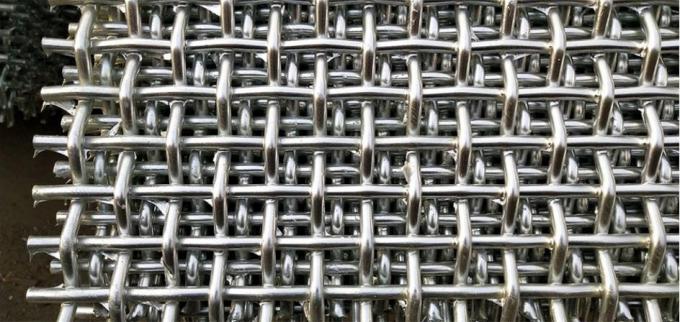

65mn Crimped Vibrating Wire Mesh For Mining Sieve Screen

65mn Crimped Vibrating Wire Mesh For Mining Sieve Screen
65mn Crimped Vibrating Wire Mesh For Mining Sieve Screen 65mn Crimped Vibrating Wire Mesh For Mining Sieve Screen

Large Image :  65mn Crimped Vibrating Wire Mesh For Mining Sieve Screen

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-355
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: With steel pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 3000 pcs per month
Detailed Product Description
Material: Manganese Steel Wire Diameter: 6.0 Mm
Hole Shape: Rectangle Weaving Type: Plain Weave
Technic: Woven Mesh Tensile Strength: 800 - 1000 MPa
High Light:

Vibrating Crimped Wire Mesh

,

Mining Screen Mesh Crimped

,

65mn Crimped Wire Mesh

65mn Crimped Vibrating Wire Mesh For Mining Sieve Screen



Mining screen, also known as vibrating screen mesh, quarry screen, and crusher screen, is one of the most
important and versatile parts of screening machines in the mining industry, which separates a mix of particles into two or more groups
depending on size and is widely used
in a variety of sizing, grading, scalping, dewatering, wet screening, and washing applications.



In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either
pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is
determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.

There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt
high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS

Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire

Grade Chemical Composition(%)
C Si Mn
45 0.42-0.50


0.52-0.60


0.50-0.80
50 0.47-0.55
55 0.52-0.60
60 0.57-0.65
65 0.62-0.70
70 0.67-0.75
65Mn 0.62-0.70 0.90-1.20
72A 0.15-0.75 0.15-0.75 0.30-0.60


Technical Parameters of Stainless Steel Wire

Grade Chemical Composition(%)
C Si Mn Cr
304 ≤0.08 8.0-10.5 ≤2.0 18.0-20.0
321 ≤0.08 9.0-12.0 ≤2.0 17.0-19.0
316 ≤0.08 10.0-14.0 ≤2.0 16.0-18.0
2205 ≤0.03 4.5-6.5 ≤2.0 21.0-23.0
2207 ≤0.03 6-8 ≤1.2 24.0-26.0
PRODUCT RANGES

Crimped Vibrating Wire Mesh for Mining Sieve Screen

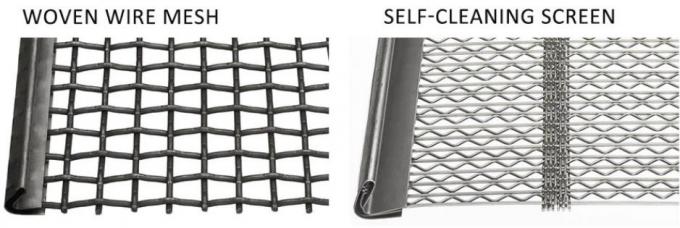

Our woven wire meshes are divided into two categories as shown below.
Crimped Vibrating Wire Mesh for Mining Sieve Screen

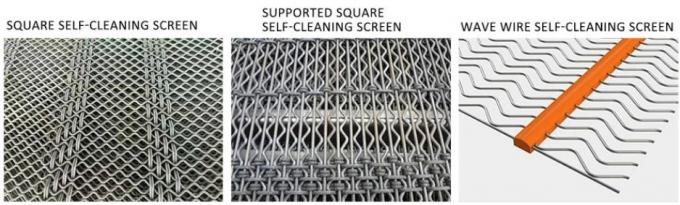

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below.

Crimped Vibrating Wire Mesh for Mining Sieve Screen

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life


Crimped Vibrating Wire Mesh for Mining Sieve Screen
Crimped Vibrating Wire Mesh for Mining Sieve Screen
Crimped Vibrating Wire Mesh for Mining Sieve Screen

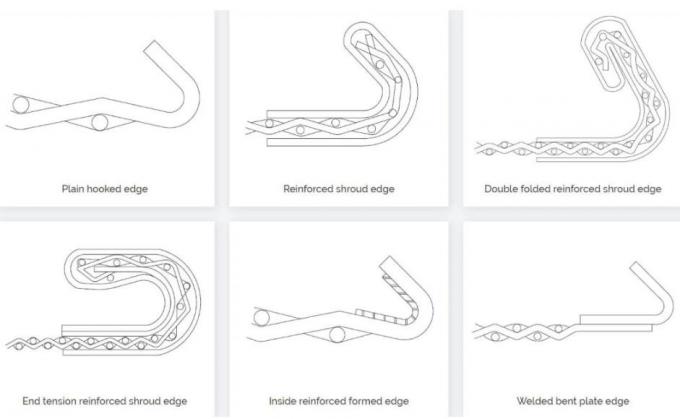

EDGE TYPES OF MINING SCREEN


Crimped Vibrating Wire Mesh for Mining Sieve Screen
