Product Details:
Payment & Shipping Terms:
|
| Material: | 65mn High Tensile Strength Wire | Wire Diameter: | 6.0 Mm |
|---|---|---|---|
| Hole Shape: | Square | Weaving Type: | Plain Weave |
| Technic: | Woven Mesh | Tensile Strength: | 800 - 1000 MPa |
| Aperture: | 10mm | ||
| High Light: | 65mn Mining Screen Mesh,Mining Screen Mesh Plain weave,65mn vibrating screen mesh |
||

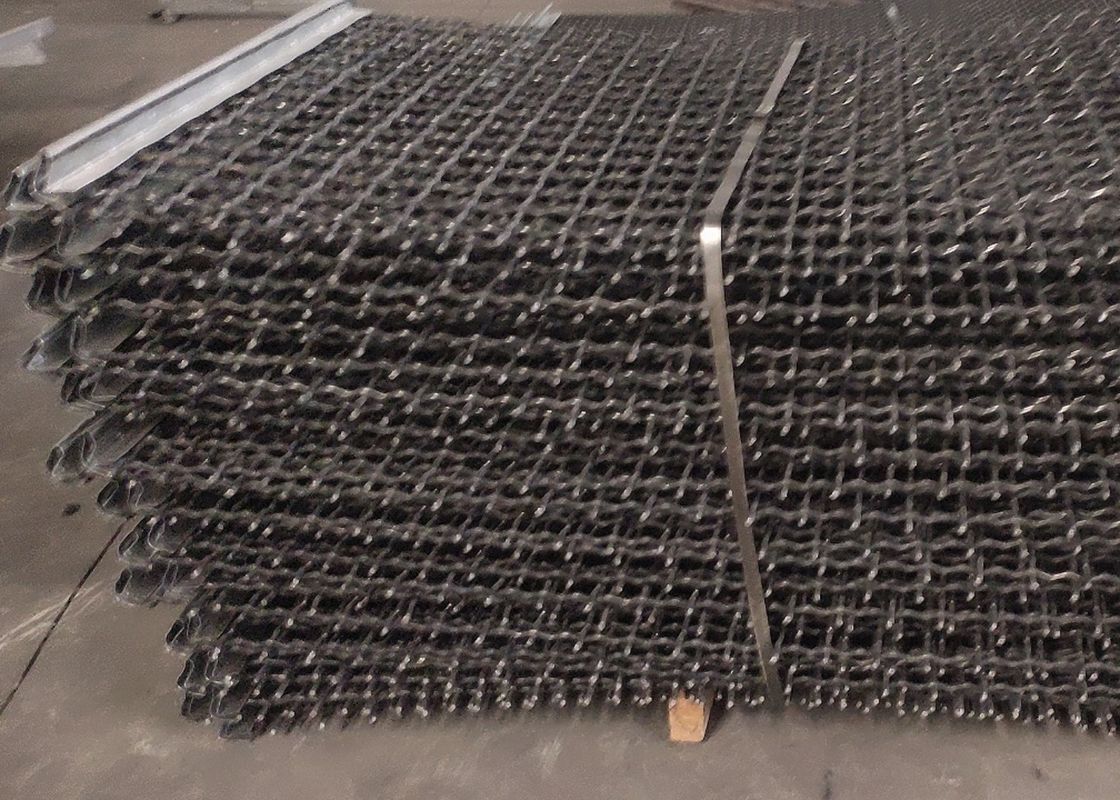

65mn High Carbon Vibrating Woven Screen Mesh for Mining and Crusher
Heavy industrial screens vibrating screen wire mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.
crimped wire mesh
Commonly used in industries with strict requirements on stability. For example, the food industry is used as a net basket for food, and the chemical industry is used for screening and filtering in acid and alkali environments. Electroplating industry is used as pickling net, petroleum industry as mud net, architectural decoration as decorative net, oil-water separator in automobile industry, etc. Stainless steel has been widely used in mining, chemical industry, medicine, petroleum, metallurgy, machinery, protection, construction, handicrafts and other industries in crimped wire mesh.
1. Vibrating screen mesh Material:
1) Stinless steel wire(201, 202, 302, 304, 304L, 310, 316, 316L)
2) High carbon steel wire, low carbon steel, medium carbon steel, Mn steel wire, black wire.
3) Galvanized iron wire, galvanized steel wire
Aluminum wire, copper wire, non-ferrous metal wire, Other materials are available on request.
2. Vibrating screen mesh Crimp methods: Plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3. Vibrating screen mesh Features: Even mesh, strong structure
4. Vibrating screen mesh Specifications:
Wire diameter: 0.3mm~12mm
Hole size: 1.5mm ~50mm
Width: As request
Length: As request

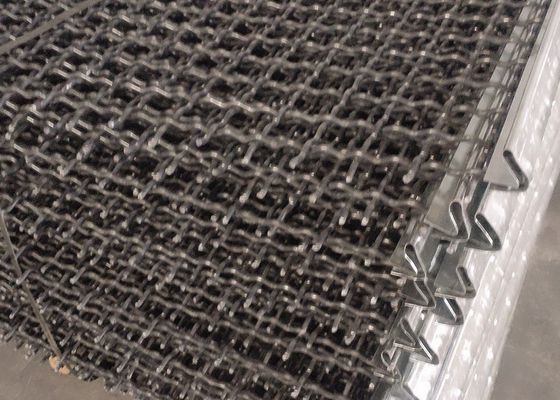

5. Vibrating screen mesh Hook: 60-180 degree, C hook available
Hook Covered edge: Galvanized metal or others
6. Vibrating screen mesh Application: It is used extensively in the minerals extraction, food and chemical processing, water and waste treatment, and construction industries, coal industry, decorate area, etc
| specification | ||
| WIRE DIAMETER | OPENING | |
| 0.5 MM x | 0.4 MM | |
| 1 MM x | 0.7 MM | |
| 1.5 MM x | 1 MM | |
| 2 MM x | 1.4 MM | |
| 4 MM x | 2 MM | |
| 3MM x | 2 MM | |
| 4 MM x | 2.5 MM | |
| 5 MM x | 2.5 MM | |
| 4 MM x | 3 MM | |
| 5 MM x | 3 MM | |
| 6 MM x | 3.5 MM | |
| 7 MM x | 3.5 MM | |
| 8 MM x | 3.5 MM | |
| 10 MM x | 4 MM | |
| 12 MM x | 4 MM | |
| 12 MM x | 4.5 MM | |
| 14 MM x | 5 MM | |
| 13 MM x | 4.5 MM | |
| 15 MM x | 5 MM | |
| 16 MM x | 5.5 MM | |
| 18 MM x | 5.5 MM | |
| 19 MM x | 5.5 MM | |
| 20 MM x | 5.5 MM | |
| 18 MM x | 6 MM | |
| 19 MM x | 6 MM | |
| 20 MM x | 6 MM | |
| 22 MM x | 7 MM | |
| 24 MM x | 7 MM | |
| 25 MM x | 7 MM | |
| 22 MM x | 8 MM | |
| 24 MM x | 8 MM | |
| 25 MM x | 8 MM | |
| 35 MM x | 8 MM | |
| 38 MM x | 8 MM | |
| 45 MM x | 8 MM | |
| 50 MM x | 8 MM | |
| 63 MM x | 10 MM | |
| 75 MM x | 10 MM | |
| 100 MM x | 12 MM | |
| 40 MM x | 11 MM | |
| 45 MM x | 11MM | |
| 50 MM x | 11 MM | |
| 63 MM x | 12 MM | |
| 75 MM x | 10 MM | |
| 100 MM x | 14MM | |
| 110 MM x | 14 MM | |
| 100 MM x | 16MM | |
| 110 MM x | 16 MM | |
