Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum,Galvanized Steel Wire | Products Name: | Grip Strut Grating |
|---|---|---|---|
| Type: | Perforated Mesh,Etching Or Stamping | Technique: | Perforated |
| Weave Style: | Perforated,Punched,Punching | Hole Shape: | Round,diamond,etc,plum Blossom,octagonal |
| Surface Treatment: | Spray Coating/Spray Painting/Fluorocarbon Coating,Hot Dipped Galvanized,galvanized And Fluoroca | Color: | All The Color Chip Have,White,blue,Silver,golden |
| Product Name: | Hexagonal Perforated Metal Sheet,expandable Sdiamond Mesh | Thickness: | 0.5-8mm,0.3MM- 8MM |
| Feature: | Corrosion Resistance,Good-looking And Good Quality,Durable,Acid Resistance,anti-resistance | Width: | 1m Or 1.22m,1.22 M Or Below |
| Usage: | Etc.,decorative,oil/air Filter,food | Size: | Customized Size,standard |
| Shape: | Square,Can Be Cut Into Round Or Square Shape,Round Shape,oval,Hexagon | Length: | Max 6000mm |
| High Light: | 6000mm Grip Strut Safety Grating,6000mm grip strut plank grating,Stair Treads Grip Strut Safety Grating |
||

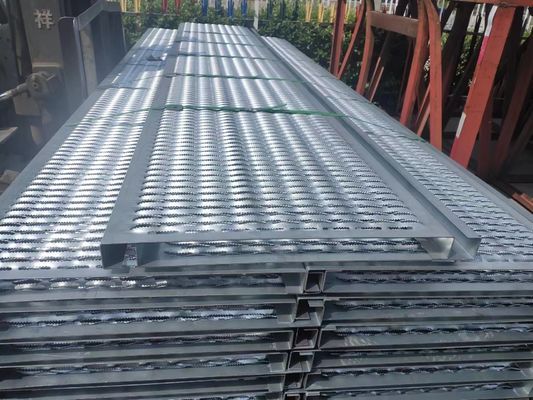

Heavy Duty Grip Strut safety grating Non-serrated surface Slip resistance

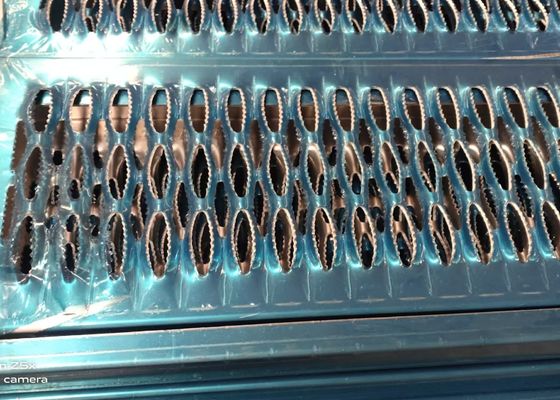

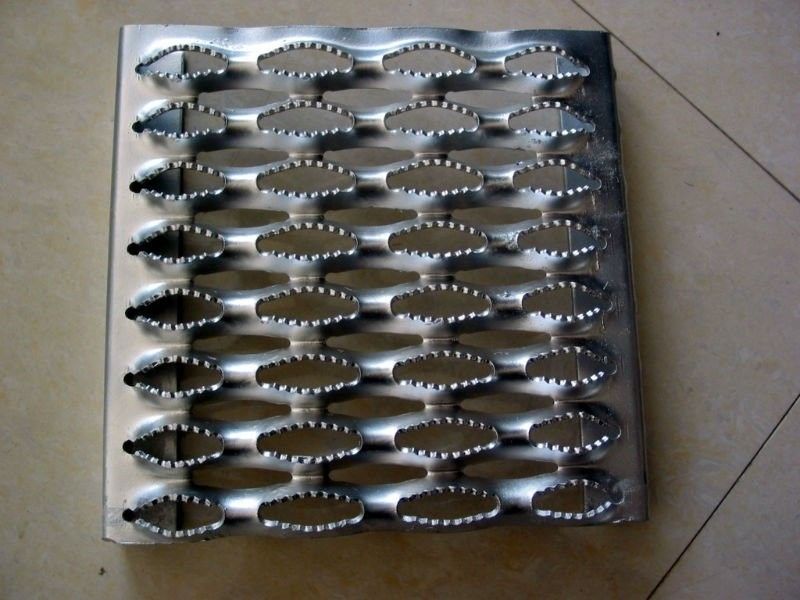

Grip Strut Plank Grating also named diamond grip plank grading, grip strut safety grating. Our this perforated plank grating has serrated surface, provide a safer surface than many other grating products. It helps eliminate costly accidents, which reduces insurance costs and lost production. The open diamond pattern allows most debris and dirt to drain. Grip Strut Plank Grating is available in serrated and smooth diamond patterns, create non-slip walkways and stair treads. Material be Pre-Galvanized,Plain Steel,Stainless Steel and Aluminum Alloy.
Custom Design:
All Guorun safety gratings are also available as flat blanks without folded edges.
In that case, the maximum embossed field width must not be greater than 750 mm for diamond forms.
For manufacturing reasons, these flat cuts have a slightly curved finish.
Gratings with other dimensions (H/W/L) than those mentioned above can also be produced.
Gratings with unperforated edges or surfaces on one or both front surfaces are also available.
We can also be supplied with ø 5-mm drain holes.
Please contact us for further technical questions.
Materials of grip strut plank grating, stairs trends grating
| Material Grade | Pre-Galvanized Steel Hot Rolled Pickled and Oiled (HRPO) steel Aluminum Alloy 5052 Stainless Steel 304, Stainless Steel 316 |
| Material Gauge | 9Guage, 10Guage, 11Guage, 12Guage, 13Guage, |
| Available Patterns | Standard Serrated, Non-serrated, Heavy duty |
| Widths and holes number | 2 Diamond holes for 4-3/4"width 3 Diamond holes for 7" width 4 Diamond holes of 9-1/2" width 5 Diamond holes of 11-3/4" width 6 Diamond holes of 14-3/4" width 7 Diamond holes of 17" width 9 Diamond holes of 21-1/2" width 10 Diamond holes of 24" width |
| Channel Depth | 1-1/2, 2, 2-1/2, 3" or customized |
| Channel Length | 6',8', 10', 12', or customized |
| Loading capacity | To check with our sales or engineers for Loading capacity table list |
| Slip resistance | complies with Federal Specification RR-G-1602D standards |
| 2 Diamond / 9-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 2 Diamonds | 9-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 9-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 3 Diamond / 13-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 3 Diamonds | 13-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 13-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 5 Diamond / 23-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 5 Diamonds | 23-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 23-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 6 Diamond / 27-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 6 Diamonds | 27-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 27-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 8 Diamond / 36" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 8 Diamonds | 36" | 1-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 36" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
Applications of Grip Strut Plank
Grip Strut Plank can be made out of iron plate, aluminium plate or stainless steel plate, etc, based upon different working environments. If iron plate is used, when grip strut plank is ready, it can be electro-galvanized, hot dip galvanized or spray-painted. Grip strut plank has nicer skid resistance and beautiful look, so it is widely used as stair tread, walkway and workshop floor in factories and transportation facilities, etc. When grip strut plank is covered with mud, ice, snow, grease, oily soil or cleaning media, grip strut plank can efficiently safeguard the safety of operating personnel.
Features of Grtp Strut Grating:
Advantages of grip strut grating
Economical to install In addition to low material cost and nominal erection cost, Grip Strut safety grating also helps save with its long-lasting, rust-resisting materials and finishes.
• Standard mill-galvanized finish resists corrosion to help provide lasting surfaces.
• High-strength aluminum and Types 304 and 316L stainless steel help provide maximum corrosion resistance.
• Black unpainted steel available for installations requiring hot dipped galvanized finish after fabrication.
• These light weight yet brawny panels permit substantial reduction in structural steel requirements.
Versatility of grip strut grating
Available in a variety of standard widths and channel heights.
• Numerous non-standard shapes and sizes.
• One piece construction with no welds or rivets to fail, minimizes need for plant fabrication.
• Special shapes and forming can be accomplished to suit unusual requirements.
Safer, serrated surface of grip strut grating
• Grips soles securely in all directions.
• Non-slip surface is ideal for inside or outside locations where mud, ice, snow, oil and detergents can create hazardous walking conditions.
• Openings are small enough to catch most falling tools and other dangerous objects.
|
|
|
|
|
|

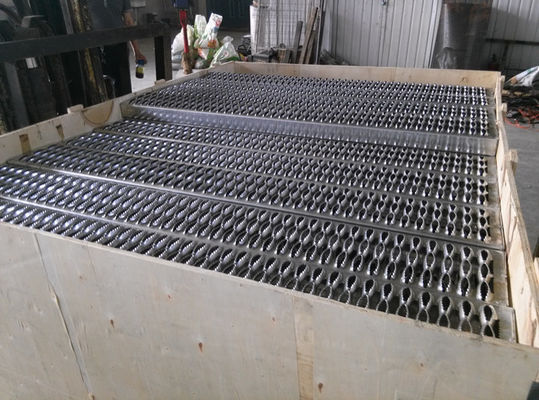

Packing:
