Product Details:
Payment & Shipping Terms:
|
| Type: | Weave Wire Mesh, Wire Cloth, Crimped Wire Mesh, Rope Mesh, Welded Mesh | Material: | Stainless Steel Wire |
|---|---|---|---|
| Technique: | Woven, Welded Mesh | Application: | Woven Wire Mesh, Filters, Screen, Decorative Wire Mesh, Protecting Mesh |
| Weave Style: | Stainless Steel Wire, 316, 304, Copper, Plain Steel Galvanized | Hole Shape: | Square Hole, Round |
| Usage: | Liquid Filter, Chemical Industry, Oil, Filtration, Filtering And Sieveing | ||
| High Light: | chemical industry Stainless Steel Wire Mesh,chemical industry Woven Wire Mesh,304SS Plain Weave Wire Mesh |
||

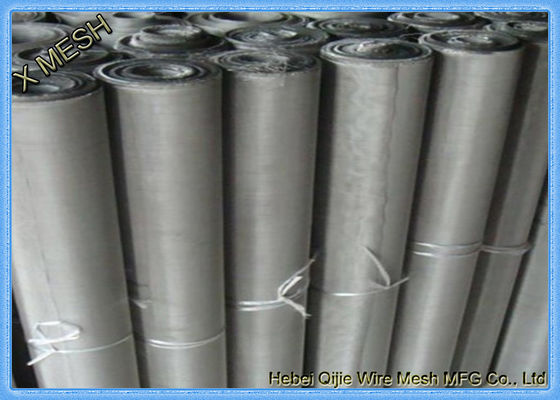

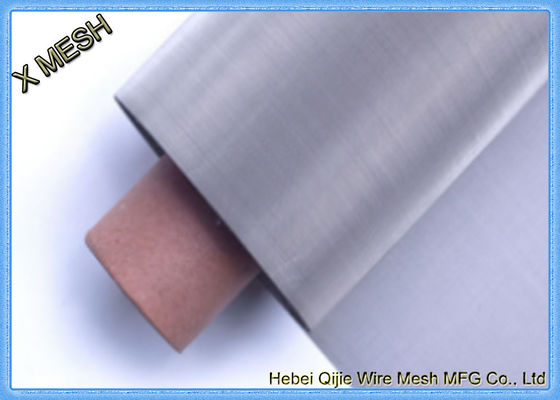

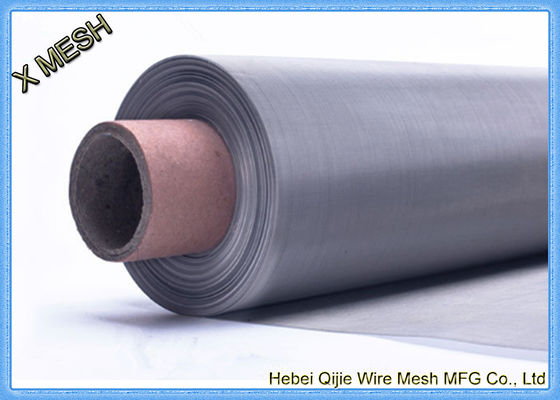

China Free Sample Plain Weave Woven Stainless Steel Wire Mesh
Stainless steel wire mesh can be supplied in square mesh or space mesh as a result of different weaving patterns or to meet the demand of specific application devices. This kind of wove Mesh is formed by interlocking wire to produce a given aperture. Arch offers a range of woven wire meshes from 10 micron to the heavy industrial meshes with big apertures. Special weaves for intense filter cloth applications can also be supplied.
Wire Materials:
Stainless Steel Wire: Aisi 304, 304L, 316, 316L, 310, 314, 410, 430.
Special Steel: Cromax, Incoloy, Alloy Ni-Cr, Inconel, Nichel, Monel, Titanium, Duplex.
Woven wire mesh is also available with carbon steel, low carbon steel, galvanized steel, brass, bronze, copper, aluminum alloy, etc.
Plain Weave Description:
Plain Weave is a kind of commonly used weaving method. The warp wire establishes the length of the wire mesh and the weft wire, paralleles to the width, crosses one another, alternates one on the top and one under and formes a 90° angle between each other.Solid woven wire mesh may have a square or rectangular opening.
Stainless steel Wire Mesh Specification
| Stainless Steel Wire Mesh and Wire Cloth, Plain Weave | |||
| Mesh | Wire Dia. (MM) | Opening (MM) | Material (AISI) |
| 7meshx7mesh | 1.00 | 2.63 | 304 or316 |
| 10meshx10mesh | 0.60 | 1.94 | 304 or316 |
| 12meshx12mesh | 0.50 | 1.62 | 304 or316 |
| 16meshx16mesh | 0.40 | 1.19 | 304 or316 |
| 16meshx16mesh | 0.35 | 1.24 | 304 or316 |
| 18meshx18mesh | 0.35 | 1.06 | 304 or316 |
| 20meshx20mesh | 0.40 | 0.87 | 304 or316 |
| 24meshx24mesh | 0.26 | 0.80 | 304 or316 |
| 30meshx30mesh | 0.30 | 0.55 | 304 or316 |
| 35meshx35mesh | 0.17 | 0.56 | 304 or316 |
| 40meshx40mesh | 0.23 | 0.40 | 304 or316 |
| 50meshx50mesh | 0.20 | 0.31 | 304 or316 |
| 60meshx60mesh | 0.15 | 0.27 | 304 or316 |
| 70meshx70mesh | 0.12 | 0.24 | 304 or316 |
| 80meshx80mesh | 0.13 | 0.19 | 304 or316 |
| 90meshx90mesh | 0.12 | 0.16 | 304 or316 |
| 100meshx100mesh | 0.10 | 0.15 | 304 or316 |
| 120meshx120mesh | 0.09 | 0.12 | 304 or316 |
| 150meshx150mesh | 0.063 | 0.11 | 304 or316 |
| 180meshx180mesh | 0.053 | 0.09 | 304 or316 |
| 200meshx200mesh | 0.053 | 0.07 | 304 or316 |
Chemicals: acid solution filtration, chemical experiments, chemical particulate filter, gas filter corrosive, caustic dust filtration
Oil: oil purification, oil mud filtration, separation of impurities, etc.
Medicine: Chinese medicine decoction filtration, the solid particulate filtration, purification and other drugs
Electronics: Circuit board framework, electronic components, battery acid, radiation module
Printing: Ink filtration, carbon filtration, purification and other toner
Equipment: vibrating screen
Heat, acid, corrosion resistance, wear resistance. Surface smooth, clean, non-toxic, health, environmental protection
Stainless steel wire mesh offers high filtering efficiency, low pressure loss, constant mesh opening, good dimensional stability, high opensurface area and good fireproof property.
