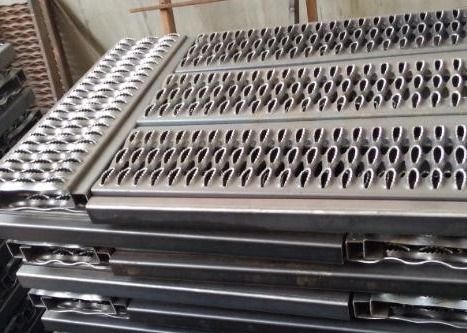

Standard Lenght 10′ /12′ Diamond Hole Aluminum Safety Grip Strut Grating
it is the industry leader in safety grating. A versatile, one-piece metal plank, Grip Strut is manufactured with unique diamond shaped openings and formed side channels. Maximum, multi-directional slip resistance is provided by a heavily serrated, diamond matrix walking surface that enhances workplace safety. With approximately 35% open area, fluids and ice easily pass through the grating.
Standard Lenght 10'/12' Diamond Hole Aluminum Safety Grip Strut
Product Parameters
· Material: galvanized steel, aluminum alloy and stainless steel.
· Width: 4-3/4", 7", 9-1/2", 11-3/4", 18-3/4" and 24".
· Channel height: 1-1/2", 2", 2-1/2" and 3".
· Plank thickness: 14G, 12G and 10G. Other thickness can be customized.
· Clear span: 2', 2'6", 3', 3'6", 4', 4'6", 5', 5'6", 6', 6'6", and 7'
| Material |
Aluminum5052,low carbon steel plate,galvanized plate,stainless steel plate, etc |
| Surface treatment |
electric galvanized, hot dipped galvanized |
| Application |
mainly used in petroleum, chemical, mining, power plant,marine exploration, electroplating, ship, waste water treatment |
| Specification |
| Material |
Raw material thickness |
Channel height |
Channel Width |
Length |
| Low carbon Steel |
2.0-3.0mm |
20-80mm |
120-1000mm |
≤3.66m |
| Aluminum |
3.0-4.0mm |
20-80mm |
120-1000mm |
≤3.66m |
| Pre-galvanized steel |
2.0-3.0mm |
20-80mm |
120-1000mm |
≤3.66m |
| Stainless Steel |
2.0-3.0mm |
20-80mm |
120-1000mm |
≤3.66m |
| Remark: Above size for your reference, and exact specifications can be customized. |
| Structure |
Plank thickness |
Width |
Channel height |
Clear span |
| 2-diamond |
14G |
4-3/4" |
1-1/2" |
2'; 2'-6"; 3' |
| 2" |
2'; 2'-6"; 3'; 4' |
| 12G |
1-1/2" |
2'; 2'-6"; 3' |
| 2" |
2'; 2'-6"; 3'; 4' |
| 3-diamond |
14G |
7" |
1-1/2" |
2'; 2'-6"; 3' |
| 2" |
2'; 2'-6"; 3'; 4' |
| 12G |
1-1/2" |
2'; 2'-6"; 3' |
| 2" |
2'; 2'-6"; 3'; 4' |
| 4-diamond |
14G |
9-1/2" |
1-1/2" |
2'; 2'-6"; 3' |
| 2" |
2'; 2'-6"; 3'; 4' |
| 12G |
1-1/2" |
2'; 2'-6"; 3' |
| 2" |
2'; 2'-6"; 3'; 4' |
| 5-diamond |
14G |
11-3/4" |
1-1/2" |
2'; 2'-6"; 3' |
| 2" |
2'; 2'-6"; 3'; 4' |
| 12G |
1-1/2" |
2'; 2'-6"; 3' |
| 2" |
2'; 2'-6"; 3'; 4' |
| 8-diamond |
14G |
18-3/4" |
2" |
2'; 2'-6"; 3'; 4' |
| 12G |
2" |
2'; 2'-6"; 3'; 4' |
| 10-diamond |
14G |
24" |
2" |
2'; 2'-6"; 3'; 4' |
| 12G |
2" |
2'; 2'-6"; 3'; 4' |
Advantage:
Light, easy to handle planks make installation easy
Large open area allows debris to drain away
Resilient surface lessens worker fatigue
High strength-to-weight ratio
Application:
Standard Lenght 10'/12' Diamond Hole Aluminum Safety Grip Strut Grating are widely used for underfoot security in loading docks, steel towers & poles, sea oil wells, mining, building constructions, walkways.
* Walkways
* Rooftop walkways
* Flooring
* Mezzanine flooring
* Signboard walkways
* Work platforms
* Rack decking
* Stairs ladders
