| Material: | Galvanized Wire | Wire Diameter: | 4.0 / 5.0 Mm |
|---|---|---|---|
| Mesh: | 50 X 100 Mm, 75 X 75 Mm | Type: | Welded Mesh |
| Hole Shape: | Square, Rectangular | Dimension: | 20 X 1 X 1 M, 30 X 1.5 X 1 M |
| Use: | Hesco Barrier | Function: | Military Use |
| High Light: | 4.0mm Hesco Flood Barriers,5.0mm Hesco Flood Barriers,military use hesco bastion wall |
||

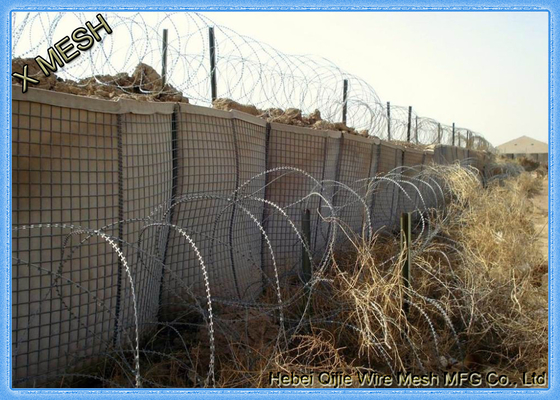

Hesco Flood Barriers Use For River And Sea Bank
Defensive Barrier
Hesco barrier also named as Hesco bastion, Hesco defense wall, Hesco blast wall, Sand cage, Welded gabion box, Defense blast wall for military use, Wire mesh gabion box, Stone cage etc.
The Hesco barrier is a kind of modern gabion for Military fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells join together .
Hesco barrier is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins.It is easy installed with using minimal manpower and commonly available equipment.After extended,it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely use in military to protect safety.
| Mesh Part | Geotextile Part | |||||||
| Height | Width | Length | Wire Thickness | Mesh Opening | Wire Tensile | Wire Type | Weight | Color |
| 1370 | 1060 | 10000 | 3.0 3.5 4.0 |
76.2*76.2 75*75 |
540-770Mpa | Zinc Coated Wire
Zinc/Aluminium Coated Wire |
200G/M2 300G/M2 |
Beige Ral-1001 Green Ral-6005 |
| 610 | 610 | 1210 | ||||||
| 1000 | 1000 | 10000 | ||||||
| 1000 | 1500 | 10000 | ||||||
| 610 | 610 | 3050 | ||||||
| 2210 | 2130 | 27740 | ||||||
| 1370 | 1060 | 10000 | ||||||
| 1370 | 1220 | 10000 | ||||||
| 1000 | 760 | 9140 | ||||||
| 2120 | 1520 | 30500 | ||||||
Hesco Barrier/Hesco Bastion Wire And Surface Treatment
| Material Surface Treatment | Min Coating | Max Coating |
| Hot Dipped Galvanized Wire Before Welded | 40-60g/sqm | 80g/sqm |
| Heavy Zinc Coated Wire Before Welded | 240-260/sqm | 260g/sqm |
| Hot Dipped Galvanized After Welded | 450-500g/sqm | 500g/sqm |
Hesco Barrier/Hesco Bastion Geotextile Details
| Geotextile | Color | Thickness | Weight/sqm |
| GY-1 | Green Grey Dark Yellow Earth Yello |
2.0mm - 3.5mm | 250g/sqm - 500g/sqm |
| GY-2 | 2.0mm - 3.5mm | 250g/sqm - 500g/sqm | |
| GY-3 | 2.0mm - 3.5mm | 250g/sqm - 500g/sqm | |
| GY-4 | 2.0mm 3.5mm | 250g/sqm - 500g/sqm |
Customized Specifications Acceptable. If you have any special requests for the defensive barrier, please don't hesitate to contact us.
Secure and Reliable
Filled with sand or gravel, the welded bastion barrier will be gifted exceptional strength to protect personnel and equipment from enemy fire.
Easy Assembly
Our defensive barrier comes as a flat-packed unit and can be assembled faster with minimal manpower, handling equipment, and fill material. That can largely save you time and manpower compared with the previous sandbag barrier.
Available Colors
Defensive barriers from Fence are available in beige and dark green.
