Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Wire | Wire Diameter: | 4.0 / 5.0 Mm |
|---|---|---|---|
| Mesh: | 50 X 100 Mm, 75 X 75 Mm | Type: | Welded Mesh |
| Hole Shape: | Square, Rectangular | Dimension: | 20 X 1 X 1 M, 30 X 1.5 X 1 M |
| Use: | Hesco Barrier | Function: | Military Use |
| High Light: | Galvanized wire hesco bastion wall,Welded hesco bastion wall,Galvanized wire hesco flood barriers |
||

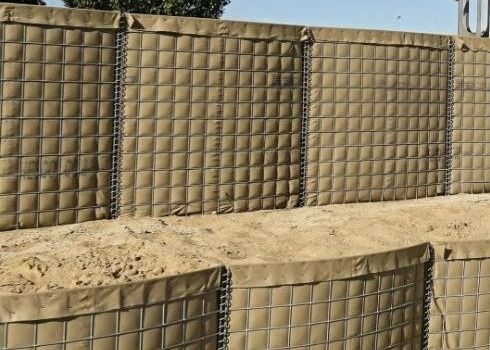

Hesco Bastion Hesco Barrier Welded Gabion Barrier for Defence Wall Flood Barrier
Defensive Barrier
Hesco barrier also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc.It is a prefabricated,multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the providedjoining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended,it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely used for military fortification and flood control.
The Hesco barrier is a kind of modern gabion for Military fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells join together .
Hesco barrier is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins.It is easy installed with using minimal manpower and commonly available equipment.After extended,it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely use in military to protect safety.
Defensive barrier is also named sand cage, sand bag, welded gabion box, bastion barrier, etc. It is a prefabricated, multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easily installed using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone, then hesco barrier like a defence barrier wall or bunker, it is widely used for fortification and flood control.
|
Standard sizes
|
Height
|
Width
|
length
|
Cells
|
|
MIL1
|
54''(1.37m)
|
42''(1.06m)
|
32'9''(10m)
|
4+5 cells
|
|
MIL2
|
24''(0.61m)
|
24''(0.61m)
|
4'(1.22m)
|
2 cells
|
|
MIL3
|
39''(1.00m)
|
39''(1.00m)
|
32'9''(10m)
|
5+5 cells
|
|
MIL4
|
39''(1.00m)
|
60''(1.52m)
|
32'9''(10m)
|
5+5 cells
|
|
MIL5
|
24''(0.61m)
|
24''(0.61m)
|
10'(3.05m)
|
5 cells
|
|
MIL6
|
66''(1.68m)
|
24''(0.61m)
|
10'(3.05m)
|
5 cells
|
|
MIL7
|
87''(2.21m)
|
84''(2.13m)
|
91'(27.74m)
|
4+4+5 cells
|
|
MIL8
|
54''(1.37m)
|
48''(1.22m)
|
32'9''(9.14m)
|
4+5 cells
|
|
MIL9
|
39'(1.00m)
|
30''(0.76m)
|
30'(9.14m)
|
6+6 cells
|
|
MIL10
|
87''(2.21m)
|
60''(1.52m)
|
100'(30.5m)
|
5+5+5+5 cells
|
|
MIL11
|
48''(1.22m)
|
12''(0.3m)
|
4'(1.22m)
|
4 cells
|
|
MIL12
|
84''(2.13m)
|
42''(1.06m)
|
108'(33m)
|
5+5+5+5+5+5 cells
|
|
MIL 19
|
108''(2.74m)
|
42''(1.06m)
|
10'5''(3.18m)
|
3 cells
|
| Product Name | Barrier Bastion Welded Gabion Box Explosion-Proof Wall or Hesco Barrier |
| Material | Hot-dipped Galvanized Steel Wire,Galfan Wire(Zinc-Aluminum Steel Wire) |
| Wire Diameter | 4mm,5mm |
| Spring Diameter | 4mm |
| Mesh Hole | 3’’*3’’ or 75mm*75mm |
| Panel Size | 0.61m*0.61m,1m*1m,1.06m*1.37m,2.21m*2.13m,etc. |
| Geotextile | Usually 300g/m,other requirement can be customized. |
| Finish | Hot-dipped Galvanized,Galfan Coated. |
Welded Mesh size: 100 x 50 mm, 50 x 50mm,100 x 100mm and 3' x 3'.
Material wire: 3.0mm - 6.0mm with galvanized coated or galfan coated.
Normal gabion box size:
2.0 x 1.0 x 1.0m, 2.0 x 1.0 x 0.5m, 2.0 x 0.5 x 0.5m, 2.0 x 0.3 x 0.3m,
1.0 x 1.0 x 1.0m, 1.0 x 1.0 x 0.5m, 1.0 x 0.5 x 0.5m, 0.5 x 0.5 x 0.5m,
1.2 x 0.6 x 0.6m, and so on.
Product Application
Hesco barrier applications:
Control and guide of water or flood.
Flood bank or guiding bank.
Security Barrier and Defence Wall
Water and soil protection.
Bridge protection.
Strengthening structure of soil.
Protecting engineering of seaside area.
