Product Details:
Payment & Shipping Terms:
|
| Material: | Copper Wire | Wire Diameter: | 0.07-0.55mm |
|---|---|---|---|
| Openning: | 2x3mm, 4x5mm,12x6mm Or Can Be Fine-adjust As Customer Request. | Surface: | Can Be Flat Or Corrugated |
| High Light: | Ultra Fine Copper knitted Mesh,0.25mm knitted copper wire mesh,0.25mm Copper knitted Mesh |
||

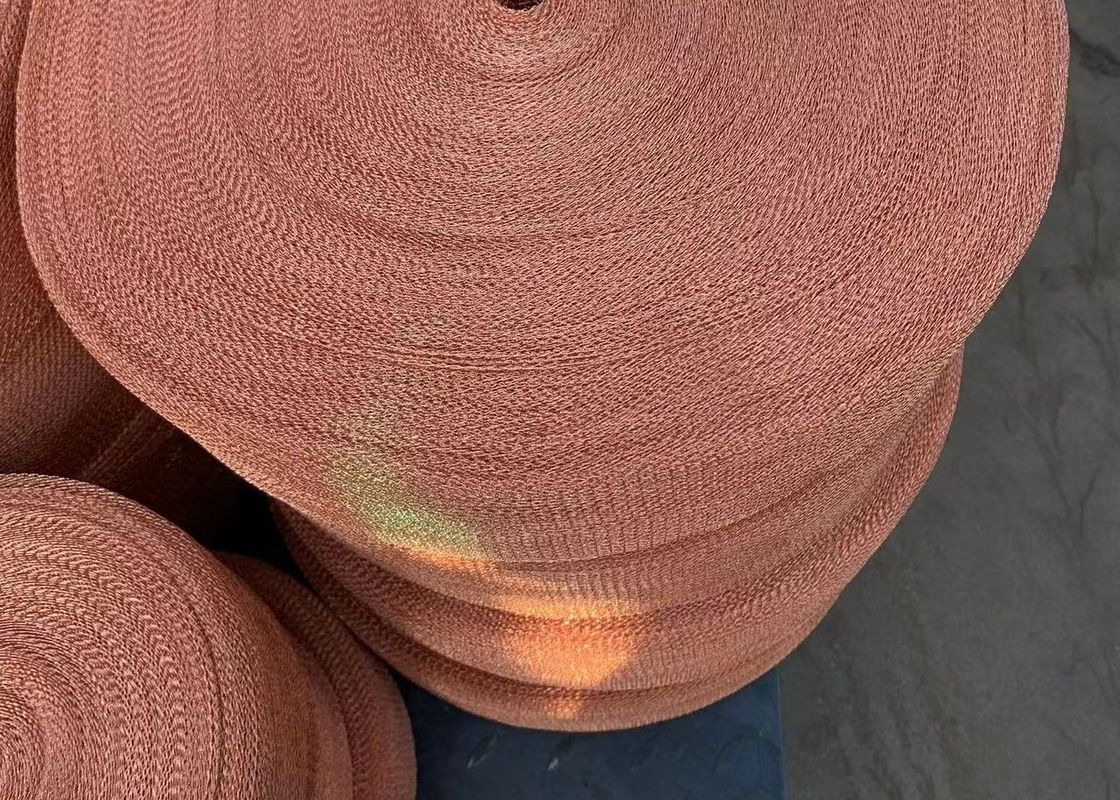

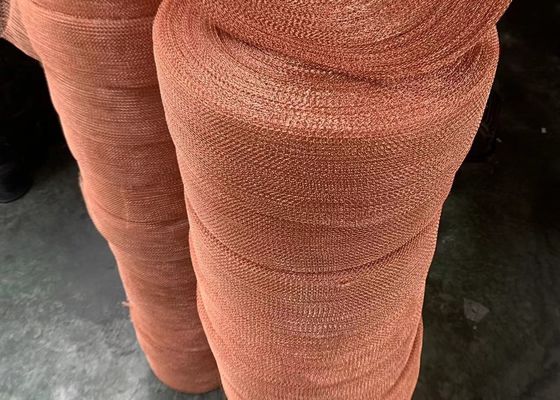

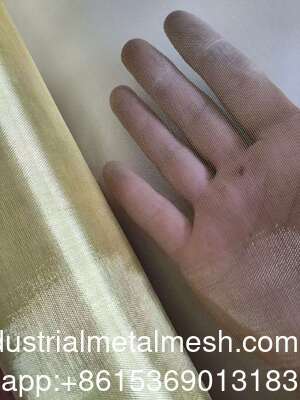

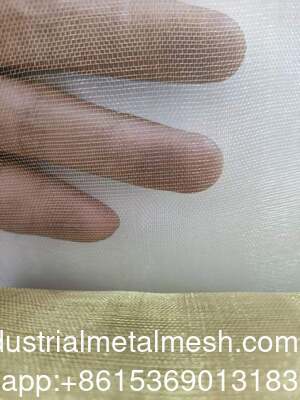

0.25mm Ultra Fine Copper knitted Mesh Screen Fabric
Description
What is Knitted Copper Mesh?
Knitted copper mesh is a knitted, flattened, copper wire which can be used for cleaning and scrubbing injection molds, screw pumps, barrels, and household items, as well as pest prevention.
Overview:
- Pure copper - won't rust or contaminate
- Safe, soft copper won't scratch or mar
- Knitted copper mesh keeps flat wire on edge for scraping
- Tough interlocking loops won't pull apart
- Non-flammable
- Great for rodent, bird, and pest prevention - cut to fill openings (replaces steel wool)
- Also use around gardens and flower pots to repel slugs and snails
- Available in 20', 25', 100', 400' rolls with a width of 5"
Custom lengths available upon request.
Application
Used in the manufacture of wire mesh defoaming machine, wire mesh demister, corrosion resistant filter pad.
Used in the manufacture of automobiles, tractors, etc.
The filter on the air compressor.
Used in the manufacture of gas liquid separator, steam separator.
Features
Copper Knitted Wire Mesh the specific absorption of evaporation, and high temperatures, strong corrosion resistance, the elimination of steam in the attach the gas or liquid droplets.
Specification
| Wire diameter | 0.10mm-0.55mm .Most common:0.20mm-0.25mm.The wire could be flat silk or round silk |
| Mesh size | 4mm×3mm,5mm×6mm,2mmx4mm,4mmx5mm etc |
| Width | 40mm,80mm,100mm,150mm,200mm,300mm,400mm,500mm,600mm,800mm,1000mm,1200mm,1400mm,1500mm. |
| Length | 10m,20m,50m,100m,200m |
|
Type |
Wire Diameter (mm) |
Width (mm) |
Number of Stitches/cm on Length |
Number of Stitches/cm Across Lay Flat |
|---|---|---|---|---|
|
Fine Mesh |
0.08–0.18 |
6–30 |
3.5 |
4.4 |
|
Medium-fine Mesh |
0.16 |
40–600 |
2.4 |
3.5 |
|
Standard Mesh |
0.18–0.35 |
30–1300 |
1.6 |
1.9 |
|
Coarse Mesh |
0.25–0.40 |
30–1300 |
1.6 |
0.74 |
|
Super Coarse Mesh |
0.4–0.5 |
100–350 |
0.5 |
0.5 |
| Item | Knitted wire mesh |
| Wire Materials | Stainless steel, copper, titanium, nickel, monel, inconel, 430,etc |
| Process | Crochet weaving |
| Length | 10-200m |
| Width | 40-1400mm |
| Mesh Dize | 2x3mm, 4x5mm,12x6mm or can be fine-adjust as customer request. |
| Wire Diameter | 0.07-0.55mm |
| Surface | Can be flat or corrugated |
Cleaning Materials
Knitted copper mesh can also be used to clean plastic/rubber/fiber extrusion equipment, molds/dies, screws and similar machinery, while the machine or molds are still hot, fast and efficient. Therefore, our knitted copper mesh are very economical where products/machine parts purity/clearance requires frequent maintenance.
Multi-strand round wire/ginning type/ Knitted copper mesh for cleaning of our screw and barrel of melt flow indexer and rheometer.
Knitted copper mesh can be made into copper scrubbers for industrial cleaning.
Advantages of knitted copper mesh
Available in 20', 30', 60' and 100' lengths and 12", 18" and 24" heights.
