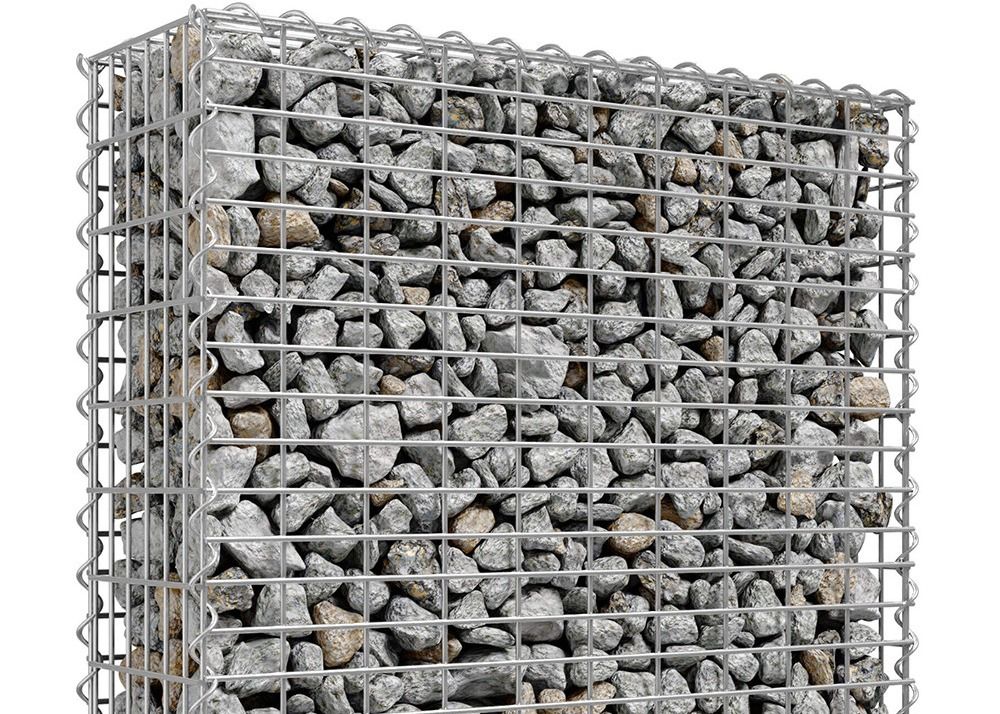

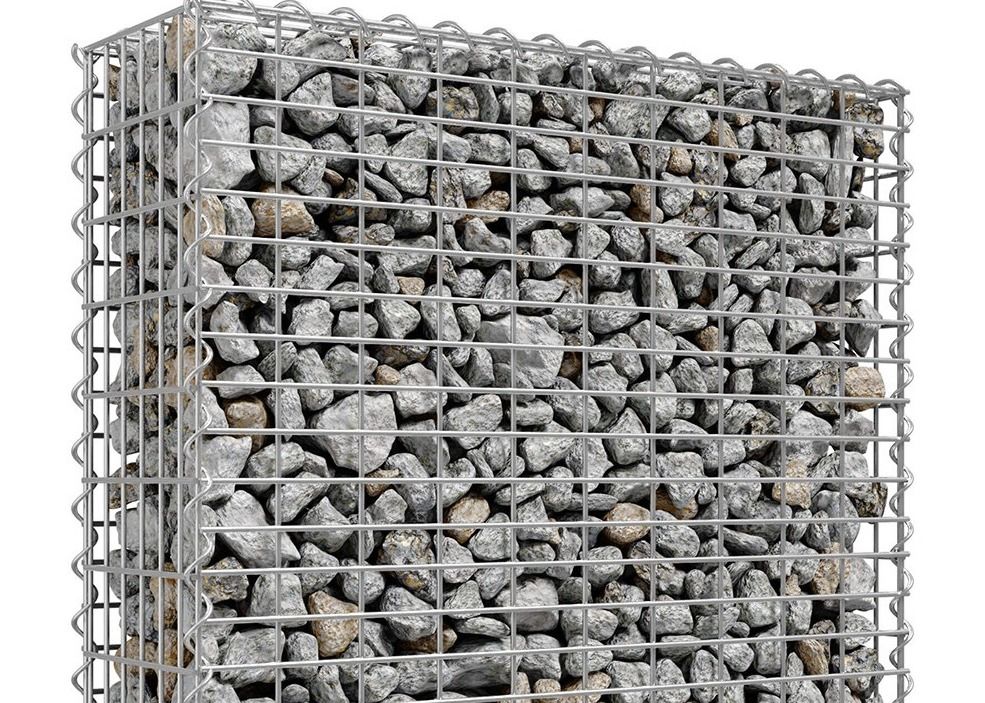

Hot Dipped Galvanized Stone Cage Welded Gabion Box 4mm Wire Thickness

Hot Dipped Galvanized Stone Cage Welded Gabion Box 4mm Wire Thickness
Hot Dipped Galvanized Stone Cage Welded Gabion Box 4mm Wire Thickness Hot Dipped Galvanized Stone Cage Welded Gabion Box 4mm Wire Thickness

Large Image :  Hot Dipped Galvanized Stone Cage Welded Gabion Box 4mm Wire Thickness

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 50 x 50 mm
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000pieces per week
Detailed Product Description
Surface Treatment: Hot Dipped Galvanized Dimention: 1 X 1 X 1 Meters / 2 X 1 X 1 Meters
Wire Diameter: 5mm Mesh Openning: 50 X 50 Mm , 100 X 100 Mm
Loading: 50pieces Per Pallet Material: Low-Carbon Iron Wire
Application: Gabions,Construction Wire Mesh,Garden,Fence,Shore Protection Type: Welded Mesh,Perforated Mesh,gabion
Product Name: Gabion Basket,flood Retaining Wall Control Welded Gabion Box Basket,Factory Supply Gabion Mesh,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion Hole Shape: Square
High Light:

Hot Dipped Galvanized Welded Gabion Box

,

44mm Thickness Welded Gabion Box

,

80 X 80mm Welded Gabion Box

4mm Wire Thickness Hot Dipped Galvanized Stone Cage Welded Gabion Box

80 X 80mm Iron Wire 195 Welded Gabion Mesh Square Garden Edging

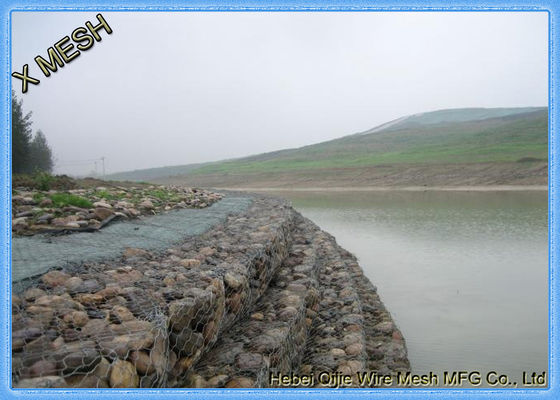

Gabions are filled with stones interconnected to form a strong and flexible structure like gravity walls,

weirs and groins. They are used for building bank stabilization, erosion control, and retaining structures for

roads and railroad or as a garden decoration.

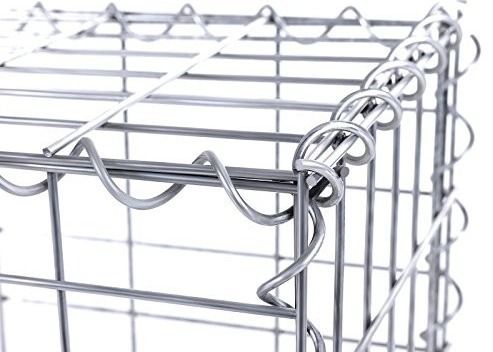

Welded Gabion is made with welded wire mesh panel, connected with spiral, easy to install and delivery.

Gabions allow multiple applications, such as installing a fence, separation wall with artificial stone,

or even the creation of tables and chairs.

Hot Dipped Galvanized Stone Cage Welded Gabion Box 4mm Wire Thickness 0

1. Welded Gabion Specification:



The welded gabion basket details :
A)panel :high quality galvanized panel of 50*50mm, 75*75mm , 50*100mm and 100*100mm size
B)sprial wires ;good quality for same wire diameter as panel
C)stifferens :4-8 stifferens per gabion ;
to make sure the gabion is more strong

Normal welded gabion box specifications:

L x W x D (cm) Diaphragms Capacity (m3) Mesh size (mm) Standard wire dia. (mm)
100x30x30 0 0.09

50 x 50

75 x 75

100 x 50

100 x100

200 x 50



Heavily Galvanized zinc coated wire 3.5-6.0



Galfan coated wire 3.5-6.0

100x50x30 0 0.15
100x100x50 0 0.5
100x100x100 0 1
150x100x50 1 0.75
150x100x100 1 1.5
200x100x50 1 1
200x100x100 1 2



2. Gabion Feature:

  • Corrosive resistant materials. Welded gabion is made of corrosive resistant materials, including galvanized wire, Galfan wire, PVC coated wire, which can remain the good appearance and performance even being exposed onto the sunlight, rain and other harsh environments.
  • Suitable square meshes. Corrosive resistant materials are welded into panels with square meshes. The square meshes have different sizes to contain different sizes of stones, including cobblestone, flake rock and any other stones.
  • Different connection types. Here are various connection types for your choice, such as lacing wires, C rings, spiral wires and U clips, they all can supply high strength and durability for your project, just choose which one you prefer.

3. Gabion Application:

  • Retaining Gabion Walls
  • Temporary Bridge Abutments
  • Noise Barriers
  • Beach Reinforcement
  • Landscaped Boundaries
  • Stone Flowerpot
  • Courtyard Security Wall
  • Stone Bench
  • Garden Decoration

4.​Types of welded gabion

According to different materials, the welded gabion can be divided into galvanized welded gabion, PVC coated gabion and Galfan gabion.

  • Galvanized welded gabion. Galvanized welded gabion is the most common used type among all the applications. The thick zinc coating supplies excellent corrosion and rust resistance performance to resist the weather, chemical and other erosion element.
  • PVC coating gabion. PVC coating makes the welded gabion colorful and blend with surrounding environments. The common color of the welded gabion is green, if you need other colors, we will customize it for you.
  • Galfan welded gabion. From the chemical composition, there are 5% aluminum and other zinc coating on the surface of the steel wire. This supplies double protection for the welded gabion. When the welded gabion is corroded by the salt, rain, it will form oxidation film to protect the products. Though the color is not bright than before, but the corrosive resistant performance is like before.
