|Surface Treatment:||Hot Dipped Galvanized||Dimention:||1 X 1 X 1 Meters / 2 X 1 X 1 Meters|
|Wire Diameter:||4mm||Mesh Openning:||50 X 100 Mm , 100 X 100 Mm|
|Loading:||50pieces Per Pallet||Material:||Low-Carbon Iron Wire|
|Application:||Gabions,Construction Wire Mesh,Garden,Fence,Shore Protection||Type:||Welded Mesh,Perforated Mesh,gabion|
|Product Name:||Gabion Basket,flood Retaining Wall Control Welded Gabion Box Basket,Factory Supply Gabion Mesh,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion|
2.7mm Diameter Woven Gabion Baskets,
Hexagonal Wire Mesh Woven Gabion Baskets,
2.7mm Diameter Hexagonal Gabion Box
2.7mm Diameter Hexagonal Wire Mesh Woven Gabion Baskets
8x10 double twisted hexagonal woven steel PVC Coated Gabion Baskets / gabion rock cages
Gabions are baskets manufactured from 8x10 double twisted hexagonal woven steel wire mesh, as per ASTM A975-97 Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects. The steel wire used in the manufacture of the Gabion is heavily Galfan (zinc-5% aluminum-mischmetal [Zn-5 Al-MM] alloy) coated soft temper steel. A PVC coating is then applied to provide additional protection for use in polluted, contaminated or aggressive environments: in salt, fresh water, acid soil or wherever the risk of corrosion is present. The PVC coating has a nominal thickness of 0.02 in. (0.50 mm). The Gabion is divided into cells by diaphragms positioned at approximately 3 ft (0.9m) centers. To reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter. Gabions shall be manufactured and shipped with all components mechanically connected at the production facility.
Weave Gabion box
Weave gabion box
Galvanized wire , galfan wire and PVC coated wire
2.0mm, 2.4mm, 2.7mm, 3.2mm, 3.4mm, 4mm
2.4mm, 2.7mm, 3mm, 3.4mm, 4mm
6*8cm,7*9cm, 8*10cm, 10*12cm, 12*15cm
pvc coated gabion basket-GB001
pvc coated gabion basket-GB002
All tests on wire must be performed prior to manufacturing the mesh. All wire should comply with ASTM A975-97, style 3 coating, Galfan and PVC coated steel wire. Wire used for the manufacture of Gabions and the lacing wire, shall have a maximum tensile strength of 75 000 psi (515 MPa) as per ASTM A856-03, soft temper steel.
|Gabion Box Size||0.5m x 1m x 1m||1m x 1m x 1m||1m x 1.5m x 1m||1m x 2m x 1m|
|Double horizontal wires style is available|
|Mesh Hole Size||50mm x 50mm||50mm x 100mm||37.5mm x 100mm||75mm x 75mm|
Can be customized according to demands of customers.
|Nominal Box sizes ( m)||No. of diaphragms (no.)||Capacity per box (m3)|
|1.0 × 1.0 × 0.5||Nil||0.50|
|1.0 × 1.0 × 1.0||Nil||1.00|
|1.5 × 1.0 × 0.5||Nil||0.75|
|1.5 × 1.0 × 1.0||Nil||1.50|
|2.0 × 1.0 × 0.5||1||1.00|
|2.0 × 1.0 × 1.0||1||2.00|
|3.0 × 1.0 × 0.5||2||1.50|
|3.0 × 1.0 × 1.0||2||3.00|
|4.0 × 1.0 × 0.5||3||2.00|
|4.0 × 1.0 × 1.0||3||4.00|

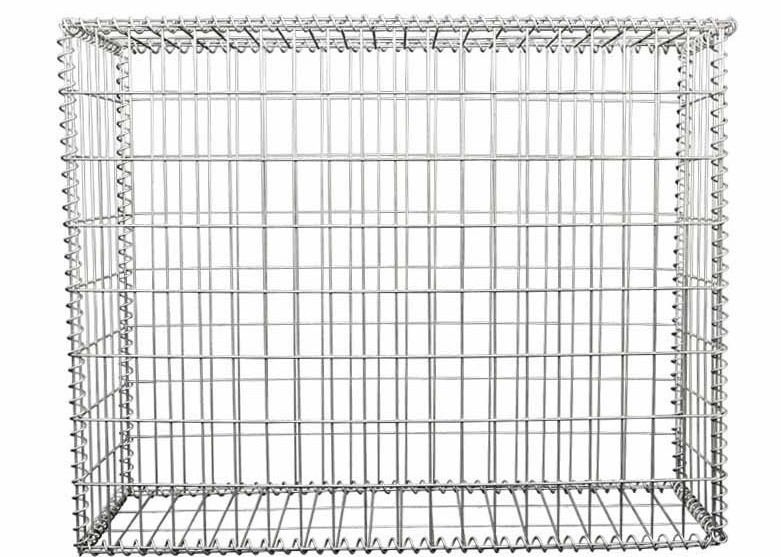

How to install welded gabion box?
1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4. Gabion box filled with graded stone by hand or with a shovel.
5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.

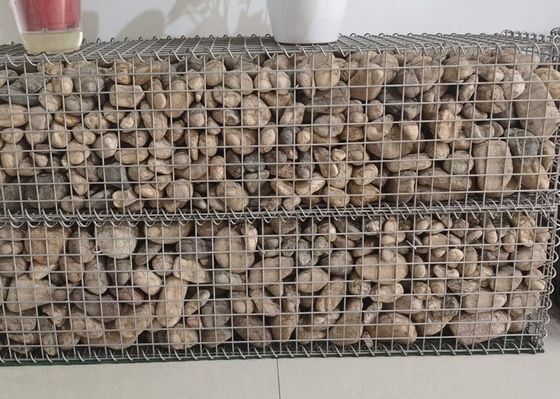

6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
Applications of gabion mattress
Blends easily and harmoniously with the natural surroundings.
Low cost alternative to concrete or masonry structures.
Very high resistance to natural forces due to better tensile strength.
Can withstand any unpredictable movement or settlement without loss of stability.
Simple and speedy installation, making it cost effective.
Quality finish and appearance is more aesthetically pleasing.
More rigid than woven mesh resulting in a more uniform finish when built.
Quicker and cheaper to install than Woven Mesh gabions because no pre-stretching required.
Special gabions sizes and mesh such as gabions with 4mm front mesh and 3mm mesh else can be available.
50-100pieces per pallets. with accessories.

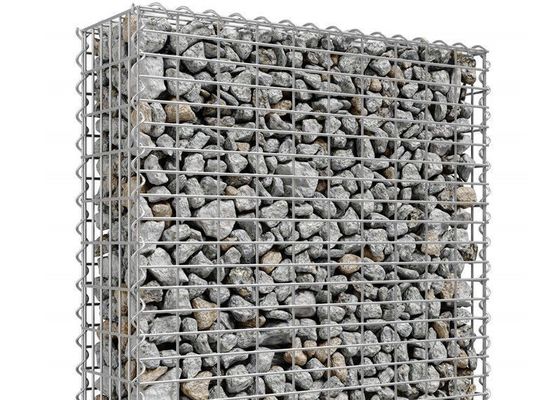

Welded gabion box is widely used in retaining wall structures, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are quicker and simpler to install than woven mesh gabions.
PVC Coated Gabion Baskets-PCBG0001
PVC Coated Gabion Baskets-PCBG0002
PVC Coated Gabion Baskets-PCBG0003
PVC Coated Gabion Baskets-PCBG0004
