50mm Diameter Anti Split Truss Nail Plates Hot Galvanized Steel

50mm Diameter Anti Split Plates , Hot Galvanized Steel Truss Nail Plates

It is common for the fibres in timber to weaken over time due to constant weathering or expansion and contraction during the treating process. This continuous weakening eventually causes the timber to split. Anti-split plates are used to prevent hardwood timber poles and logs from splitting.

anti-split plate range include round, square and rectangular plates which can be manufactured according to specific size requirements and labelled for easy identification.

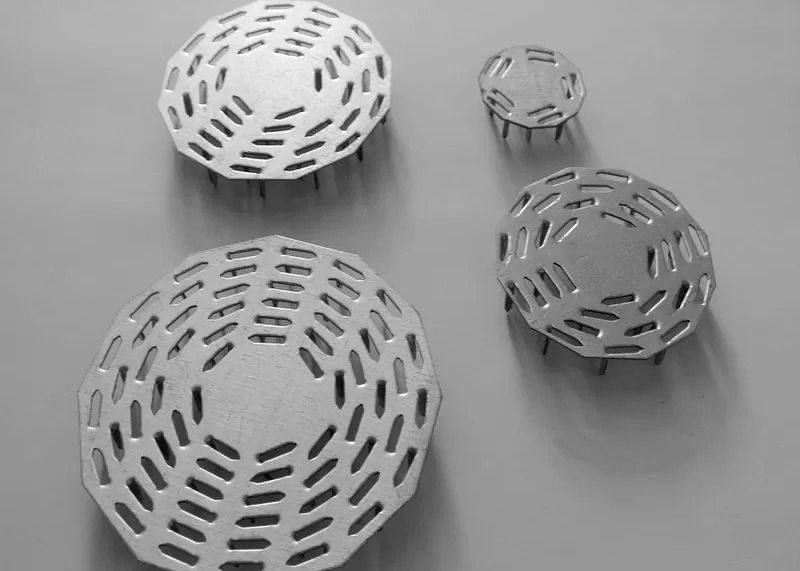

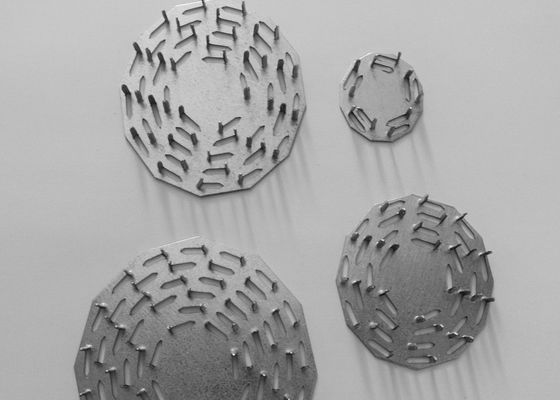

A few of our standard anti-split plates are visible below. Please contact us today to discuss your specific requirements.

These plates extend the life of crossties, switch ties, and bridge timbers while providing the ultimate in split and check resistance. They meet or exceed specifications for Class 1, Short Line, and Metro railroads. Our anti-split plates are proven to the international railroad and end-plating industries with these important patented

7" Round Anti Split Plates Easy To Press And Eliminate Timber Splitting 1.2mm Thickness

Specification:

Raw Material:

Hot Dipped plate

Thickness: 1mm,1.2mm

Hole Dimensions: 13.5mm*3.5mm

Length of Spikes: 13.5mm

Size: 4”,5”,6”,7”,8”,9”,10” and so on

Detailed tables relating pole diameter, percentage coverage and anti-split plate size):

• 50mm diameter - covers poles 50 - 38mm in diameter
• 70mm diameter - covers poles 70 - 118mm in diameter
• 90mm diameter - covers poles 90 - 153mm in diameter
• 110mm diameter - covers poles 110 - 187mm in diameter
• 135mm diameter - covers poles 135 - 228mm in diameter
• 155mm diameter - covers poles 155 - 263mm in diameter
• 180mm diameter - covers poles 180 - 306mm in diameter
• 210mm diameter - covers poles 210 - 357mm in diameter

Specs

• Accepted by all CLASS 1 Railroads
• Are galvanized in accordance with ASTM A 924
• Are produced from laboratory certified structural steel (Grade 40 & 60)
• Are manufactured under strict, third party quality control measures

Feature:

Anti-split plates can help reduce splitting in timber, which occurs as a result of weathering, but not all plates are created equal. Anti-split plates are easy to press and eliminate timber splitting while reducing tooth withdrawal.

Packing:
