| Material: | Black Wire, Spring Steel Wire, 65mn | Aperture: | 0.8 - 8 Mm |
|---|---|---|---|
| Size: | 1.5m X 1.95m | Install: | Hooked |
| Surface Treatment:: | Galvanized Or Painted | Mesh Size: | 1mm - 100mm |
| Hole Type: | Square, Rectangular And Long Slot. | ||
| High Light: | 1.5 x 1.95m vibrating screen mesh,mineral processing vibrating screen mesh,4mm mining screen mesh |
||

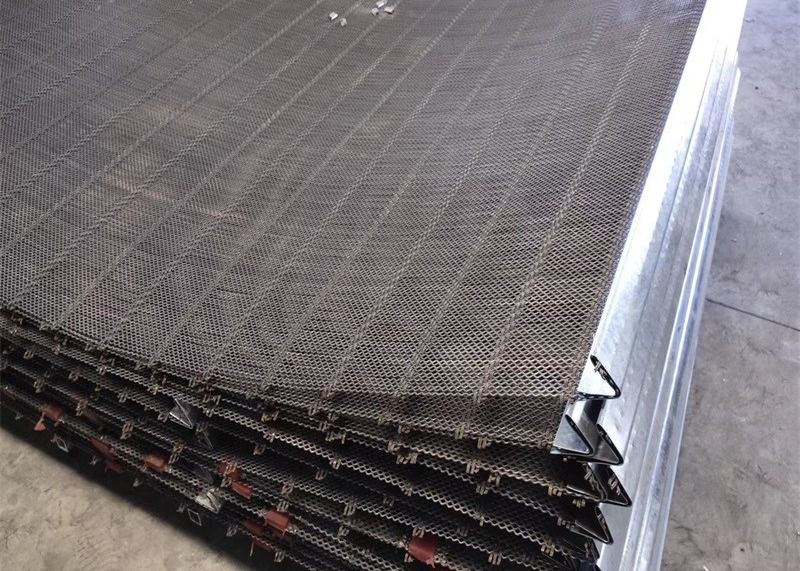

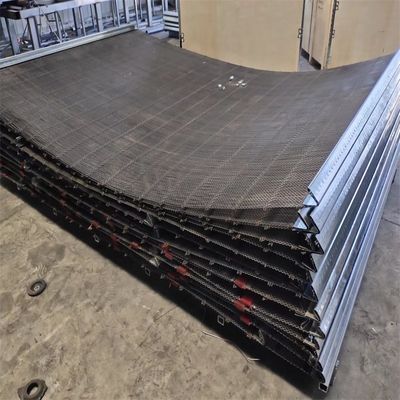

65mn Mining Vibrating Screen Square Crimped Woven Wire Mesh
Vibrating screen mesh/Crimped Wire Mesh for Mining (factory)
1.Vibrating screen mesh Material:
1) Stainless steel wire (201,202,302,304,304L,310,316,316L)
2) High carbon steel wire, low carbon steel, medium carbon steel, steel wire, black wire.
3) Galvanized iron wire,galvanized steel wire
Aluminum wire,copper wire,non-ferrous metal wire,Other materials are available on request.
2.Vibrating screen mesh crimp methods: plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3.Vibrating screen mesh Features: Even mesh, strong structure
4.Vibrating screen mesh specifications:
Wire diameter:0.3mm~12mm
Hole size:1.5mm ~50mm
Currently we are supplying screens:
Material: Mild steel,Medium carbon steel,High carbon steel,Manganese wire, Spring steel,High tensile wire,Stainless steel etc.
Mesh: Square mesh and Triple Slot mesh.
Crimping: Double crimped,Inter crimped,Lock crimped etc.
Opening: 3mm to 150mm with wires 1.4mm to 12.7mm thick;
pecification: width up to 2.2m, no length limitation.
Edge: Raw Edge,plated sheathed,hooked,inner plated welded etc.
Thinner wire screen can also be supplied in rolls.
Screens are consumables,so we focus on quality to win long term business cooperation.
Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications.
| Material | Black wire, spring steel wire, manganese steel wire and stainless steel wire, as your request |
| Surface treatment | Galvanized or painted |
| Wire diameter | 0.71mm - 12.5mm |
| Mesh size | 1mm - 100mm |
| Hole type | Square, rectangular and long slot |
| Weaving type | Plain weave, Pre-crimped, Flat top, Intermediate crimped, Lock crimped |
| Connection/Hook type | Bending,Welding,Metal sheet hook (C type or U type) |
| Wire Dia(mm) | Opening(mm) | Mesh | Weight(kg/m2) |
| 4.0 | 30 | 0.75 | 6 |
| 3.2 | 20 | 1.1 | 5.6 |
| 2.6 | 15 | 1.44 | 5.7 |
| 2.0 | 10 | 2.12 | 4.2 |
| 2.0 | 8 | 2.54 | 5.1 |
| 1.8 | 6 | 3.25 | 5.3 |
| 1.6 | 3 | 5.5 | 7.1 |
| 1.4 | 4 | 4.7 | 4.6 |
| 1.2 | 7 | 3.1 | 2.2 |
| 1.2 | 6 | 3.5 | 2.5 |
| 1.2 | 3 | 6 | 4.4 |
| 1.0 | 2.18 | 8 | 4 |
| 0.8 | 1.72 | 10 | 3.2 |
| 0.7 | 1.84 | 10 | 2.5 |
| 0.6 | 1.21 | 14 | 2.6 |
| 0.5 | 0.9 | 18 | 2.3 |
| 0.5 | 0.77 | 20 | 2.5 |
| Other specifications can be customized, can be made into rolls or sheets, the width can be up to 4m | |||
All types of high-quality Screen Mesh can be manufactured, kindly let us know your request.
1. Mesh type
2. Material
3. Aperture
4. Length and Width
5. Quantity
6. Your other requests
Talk with me you do not need to pay money. I am happy to add value, even if we never work together. You tell me what works for you. I'll make it happen. Simple as that.
Advantages:
1) High mechanical strength, large carrying capability
2) High abrasion and chemical corrosion resistance
3) Excellent vibration and impact resistance
4) Large screening area
5) long service life
Our woven wire mesh is manufactured with a stringent wire opening tolerance of ±3%.Wire diameter is available in the industrys largest variety of wire diameters from .047 inches(1.2mm) to .750 inches(19 mm) and open size from .125 inches (3.18mm)to 5 inches (127mm).
The weaving process is also crucial .Each screen is woven with an extremely tight tolerance to any type of movenment within the crimp or weave, preventing the wires from rubbing against each other and wearing prematurely during use.Thus a tight weave is produced every time,and the tighter the weave,the more durable the woven wire. So you get the strongest screen media possible every time you order.
Application:
Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher, Classifying Trommel; Vibrating screen; Road construction equipment; The Asphaltum mix round equipment and the mine vibrating screens, chemical industry, pharmacy, machinery, protection, construction.
