Product Details:
Payment & Shipping Terms:
|
| Material: | Black Wire, Spring Steel Wire, 65mn | Aperture: | 0.8 - 8 Mm |
|---|---|---|---|
| Size: | 1.5mx1.95m | Install: | Hooked |
| Surface Treatment:: | Galvanized Or Painted | Mesh Size: | 1mm - 100mm |
| Hole Type: | Square, Rectangular And Long Slot. | ||
| High Light: | heavy duty crimped mining vibrating screen,2.0m x 2.5m mining vibrating screen,quarry vibrating screens mining |
||

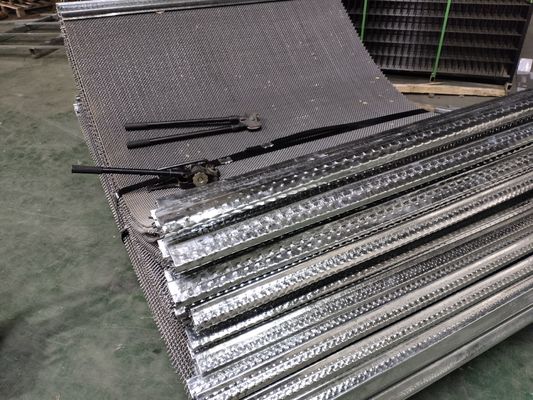

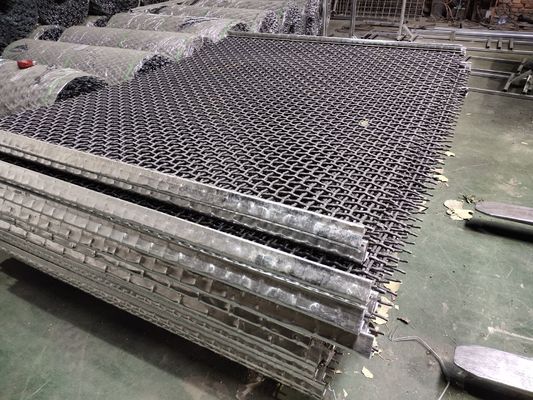

Heavy Duty Mining Vibrating Screen 65mn 2.0m X 2.5m Crimped Wire Screen Mesh For Quarry
Mining Wire Mesh with hook is widely used in industry for filtration, separation, crushing, grading, sizing and shifting. It is applicable for a variety of materials, ranging from minerals, stones and ores. Due to its rigid design and excellent protection against abrasions, it is highly suitable for processing heavy abrasive materials like crushed stones, sand and gravel coal.
Our woven wire mesh is manufactured with a stringent wire opening tolerance of ±3%.Wire diameter is available in the industrys largest variety of wire diameters from .047 inches(1.2mm) to .750 inches(19 mm) and open size from .125 inches (3.18mm)to 5 inches (127mm)
The weaving process is also crucial .Each screen is woven with an extremely tight tolerance to any type of movenment within the crimp or weave, preventing the wires from rubbing against each other and wearing prematurely during use.Thus a tight weave is produced every time,and the tighter the weave,the more durable the woven wire. So you get the strongest screen media poaaible every time you order.
Material:
Features:
Applications:
Used for:
All types of high-quality Screen Mesh can be manufactured, kindly let us know your request.
1. Mesh type
2. Material
3. Aperture
4. Length and Width
5. Quantity
6. Your other requests
Talk with me you do not need to pay money. I am happy to add value, even if we never work together. You tell me what works for you. I'll make it happen. Simple as that.
| Item | Wire diameter Mm |
Open size Mm |
Width M |
Length M |
Weight Kg |
| 1 | 2 | 3 | 1.5 | 2 | 32 |
| 2 | 3 | 5 | 1.5 | 2 | 42.6 |
| 3 | 4 | 8 | 1.5 | 2 | 51.13 |
| 4 | 4.5 | 12 | 1.5 | 2 | 46.77 |
| 5 | 5 | 16 | 1.5 | 2 | 45.52 |
| 6 | 5.5 | 18 | 1.5 | 2 | 49.37 |
| 7 | 6 | 20 | 1.5 | 2 | 52.7 |
| 8 | 6 | 22 | 1.5 | 2 | 48.96 |
| 9 | 6.5 | 24 | 1.5 | 2 | 52.87 |
| 10 | 6.5 | 27 | 1.5 | 2 | 48.12 |
| 11 | 7 | 30 | 1.5 | 2 | 50.63 |
| 12 | 8 | 50 | 1.5 | 2 | 42.29 |
| 13 | 12 | 75 | 1.5 | 2 | 64 |
| Opening | Type | Wire Dia | Weight Per Sq. Foot | Percent of Open Area |
| 2.00" x 2.00" | Clear Opening Space Cloth | .250" | 1.79 | 79.00% |
| 1.75" x 1.75" | Clear Opening Space Cloth | .192" | 1.22 | 81.20% |
| 1.50" x 1.50" | Clear Opening Space Cloth | .162" | 1.02 | 81.50% |
| 1.25" x 1.25" | Clear Opening Space Cloth | .120" | 0.68 | 83.20% |
| 1" x 1" | Clear Opening Space Cloth | .105" | 0.5 | 83.90% |
| 3/4" x 3/4" | Clear Opening Space Cloth | .092" | 0.65 | 79.30% |
| 1/2" x 1/2" | Clear Opening Space Cloth | .080" | 0.71 | 74.30% |
| 3/8" x 3/8" | Clear Opening Space Cloth | .080" | 0.91 | 67.90% |
| 1/4" x 1/4" | Clear Opening Space Cloth | .080" | 1.28 | 57.40% |
| .395" | 2 mesh | .105" | 1.442 | 62.40% |
| .420" | 2 mesh | .080" | 0.83 | 70.60% |
| .437" | 2 mesh | .063" | 0.512 | 76.40% |
| .453" | 2 mesh | .047" | 0.284 | 82.10% |
| .253" | 3 mesh | .080" | 1.264 | 57.60% |
| .270" | 3 mesh | .063" | 0.776 | 61.30% |
| .286" | 3 mesh | .047" | 0.428 | 73.60% |
| .170" | 4 mesh | .080" | 1.721 | 46.20% |
| .187" | 4 mesh | .063" | 1.048 | 56.00% |
| .203" | 4 mesh | .047" | 0.576 | 65.90% |
Advantages:
1) High mechanical strength, large carrying capability
2) High abrasion and chemical corrosion resistance
3) Excellent vibration and impact resistance
4) Large screening area
5) long service life
Our woven wire mesh is manufactured with a stringent wire opening tolerance of ±3%.Wire diameter is available in the industrys largest variety of wire diameters from .047 inches(1.2mm) to .750 inches(19 mm) and open size from .125 inches (3.18mm)to 5 inches (127mm).
The weaving process is also crucial .Each screen is woven with an extremely tight tolerance to any type of movenment within the crimp or weave, preventing the wires from rubbing against each other and wearing prematurely during use.Thus a tight weave is produced every time,and the tighter the weave,the more durable the woven wire. So you get the strongest screen media possible every time you order.
Application:
Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher, Classifying Trommel; Vibrating screen; Road construction equipment; The Asphaltum mix round equipment and the mine vibrating screens, chemical industry, pharmacy, machinery, protection, construction.
