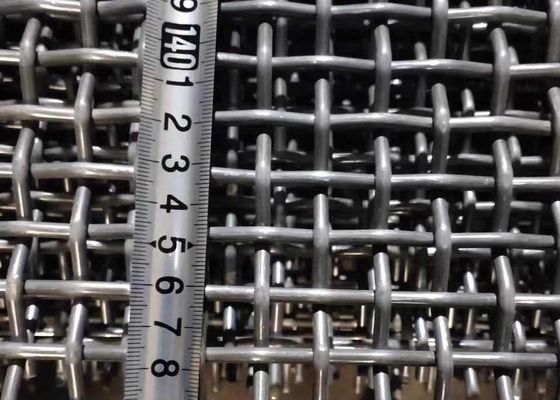

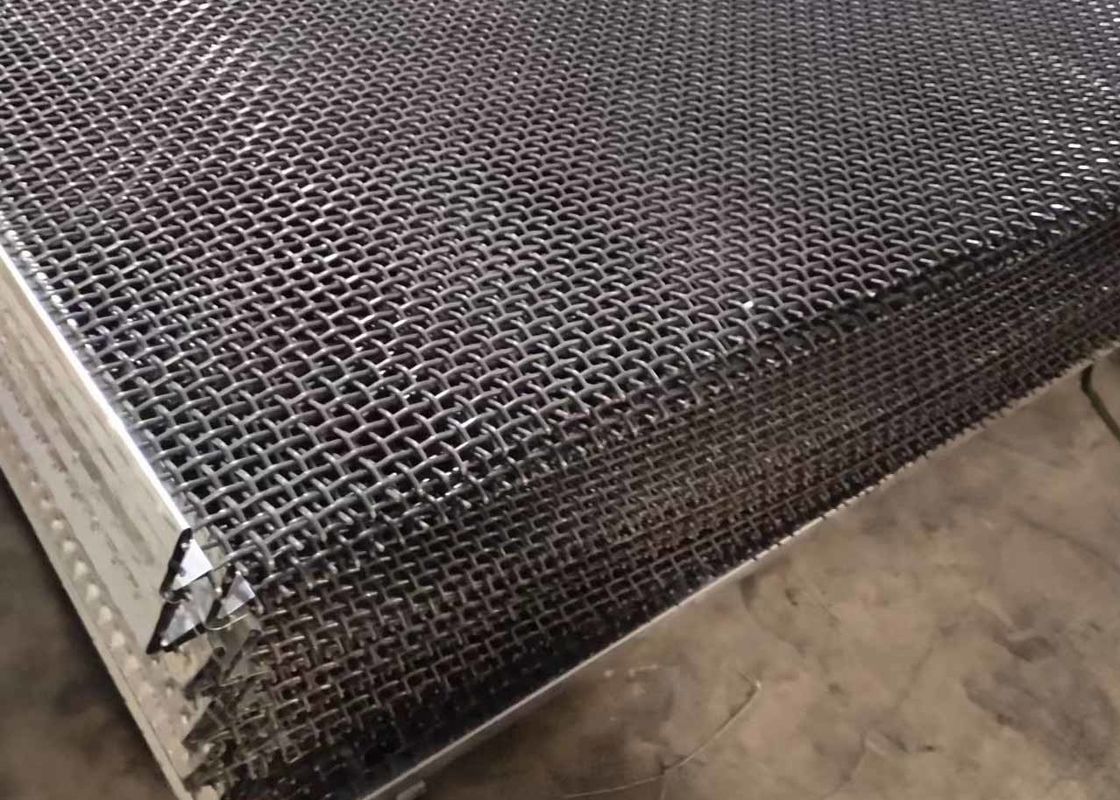

High Tensile 65mn Hooked Galvanized Crimped Wire Mesh For Coal Mine Industry

High Tensile 65mn Hooked Galvanized Crimped Wire Mesh For Coal Mine Industry
High Tensile 65mn Hooked Galvanized Crimped Wire Mesh For Coal Mine Industry High Tensile 65mn Hooked Galvanized Crimped Wire Mesh For Coal Mine Industry

Large Image :  High Tensile 65mn Hooked Galvanized Crimped Wire Mesh For Coal Mine Industry

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 4mm
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 100pieces per week
Detailed Product Description
Material: Black Wire, Spring Steel Wire, 65mn Aperture: 0.8 - 8 Mm
Size: 1.5mx1.95m Install: Hooked
Surface Treatment:: Galvanized Or Painted Mesh Size: 1mm - 100mm
Hole Type: Square, Rectangular And Long Slot.
High Light:

intercrimp woven galvanized crimped wire mesh

,

hooked galvanized crimped wire mesh

,

coal mine industry intercrimp woven wire

Factory Wholesale High Tensile 65mn Woven Crimped Wire Mining Vibrating Screen Mesh with Hooked for Coal Mine Industry



Mining screen, also known as vibrating screen mesh, quarry screen and crusher screen, is one of the most important and versatile parts of screening machines in mining industry, which separates a mix of particles into two or more groups depending on size and is widely used in a variety of sizing, grading, scalping, dewatering, wet screening and washing applications.



Pre-crimped wire mesh is made of wire diameters ranging from 1.5mm to 6 mm. It can be used for windows, partitions, roasting of meat and flour sieving or mine screens.



In the pre-crimping process, the wire is first formed (crimped) in precision machines using rotary dies that precisely define the spacing of the wires. This insures that the wires are locked firmly together at the intersections. The pre-crimped wires are then assembled in custom designed screen assembly machines (looms).



When the open area is important, extra crimps between the intersections provide a more rigid weave and provide locking and tightness for light wires in relation to the large openings.



Due to the crimping process, the mesh have very accurate and consistent openings and are woven after crimping. It is typically preferred for vibrating screens and many other applications where sizing is critical.

Material Wire Gauge Hole Size
Stainless (SUS 304#) 1.2m/m~12m/m 10mm - 100mm
Hot dip galvanized 1.2m/m~12m/m
Galvanized 1.2m/m~12m/m
Customization Was Available



vibrating screen mesh

1. Double Crimp Woven Wire
Used for medium to heavy wire in relation to screen opening size.



2. Lock pre-crimp mesh
Unlike plain crimped mesh, lock crimped mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.



3. Flat Top Woven Wire


Flat top is similar to the lock crimp, but all of its crimping is offset to one side of the material. This creates a smooth top surface-with no high points-as all wires are woven on a single plane. Its bottom side, however, has crimp bumps approximately twice the height of lock crimp bumps. Flat top was originally created to allow for the smooth flow of materials over the surface and provide a flat face for use as backer screens. Flat top is ideal for aggregate sizing and sorting, agriculture, filtration, and heat-treating applications.



4. Intermdiate Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).



Products Common Specifications:
Name Heavy duty wire Crimped Wire Mesh.Mine Mesh. Vibratingscreen mesh
material 65Mn,45#,50#,55#,60#,70#,72A, 304, 316, 316L
wire 0.8mm-12.7mm
Opening 2mm to 100mm
1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped

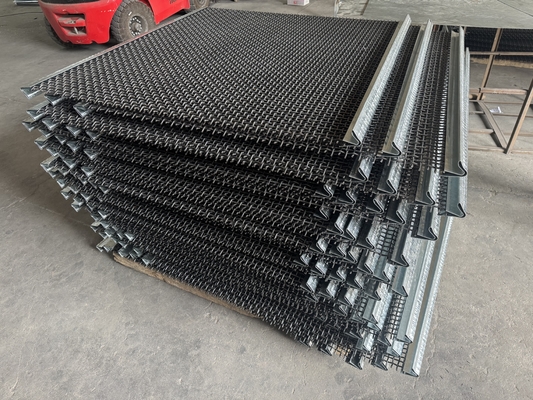

3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.
7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.


vibrating screen mesh

Applications

  • Mining industry
  • Coal factory
  • Construction industry
  • Food processing and meat industry
Used for
  • Grid window
  • Poultry protection
  • Concrete reinforcement
  • Building construction

Packing
Packing: In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.
