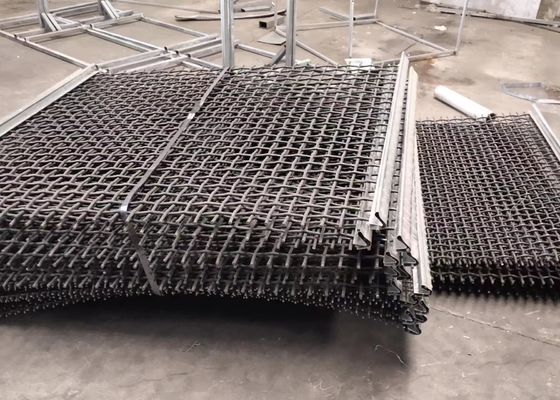

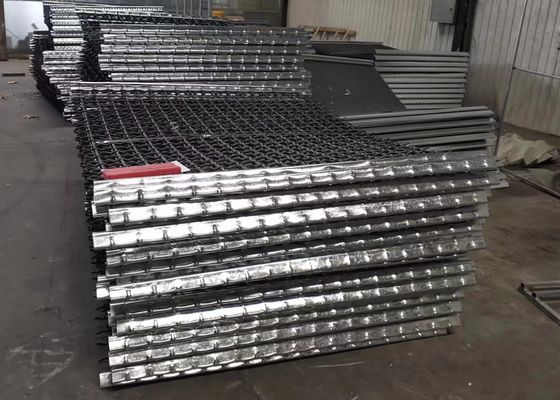

1.5m X 1.95m Size Vibrating Screen Mesh Mine Hook Crimped Wire Rectangular Hole

1.5m X 1.95m Size Vibrating Screen Mesh Mine Hook Crimped Wire Rectangular Hole
1.5m X 1.95m Size Vibrating Screen Mesh Mine Hook Crimped Wire Rectangular Hole 1.5m X 1.95m Size Vibrating Screen Mesh Mine Hook Crimped Wire Rectangular Hole

Large Image :  1.5m X 1.95m Size Vibrating Screen Mesh Mine Hook Crimped Wire Rectangular Hole

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 4mm
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 100pieces per week
Detailed Product Description
Material: Black Wire, Spring Steel Wire, 65mn Aperture: 0.8 - 8 Mm
Size: 1.5mx1.95m Install: Hooked
Surface Treatment:: Galvanized Or Painted Mesh Size: 1mm - 100mm
Hole Type: Square, Rectangular And Long Slot.
High Light:

vibrating screen mesh size 1.5 m x 1.95 m

,

rectangular hole crimped vibrating screen mesh



Factory Wholesale High Tensile 65mn Woven Crimped Wire Mining Vibrating Screen Mesh with Hooked for Coal Mine Industry



Vibrating screens are the most crucial tool used in the crushing industries. The vibrating screens are made out of stainless steel and metal which is used for separating materials and broken stones in the crushing system. With the best-vibrating screens, you can achieve multiple products at the same time. There are Different Types of Vibrating Screens and the right vibrating screen you need for the project depends on the type of material production, humidity, and washing conditions. So, you need to be careful enough when choosing the vibrating screens for your project.



Vibrating screen mesh/Crimped Wire Mesh for Mining (factory)
1.Vibrating screen mesh Material:
1) Stinless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire,black wire.
3) Galvanized iron wire,galvanized steel wire
Aluminum wire,copper wire,non-ferrous metal wire,Other materials are available on request.
2.Vibrating screen mesh crimp methods: plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3.Vibrating screen mesh Features: Even mesh, strong structure
4.Vibrating screen mesh specifications:
Wire diameter:0.3mm~12mm
Hole size:1.5mm ~50mm
Width:as request
Length:as request
5.Vibrating screen mesh Hook:60-180 degree, C hook available
Hook Covered edge :galvanized metal or others
6.Vibrating screen mesh Application: it is used extensively in the minerals extraction, food and chemical processing, water and waste treatment, and construction industries, coal industry, decorate area, etc



Specification List of Crimped Wire Mesh/Wire Mesh for Roast

Wire Gauge
SWG

Wire Diameter
mm
Mesh/Inch
Aperture
mm

Weight
kg/m2
14 2.0 21 1 4.2
8 4.05 18 1 15
25 0.50 20 0.61 2.6
23 0.61 18 0.8 3.4
24 0.55 16 0.1 2.5
24 0.55 14 0.12 4
22 0.71 12 0.14 2.94
19 1 2.3 0.18 1.45
6 4.8 1.2 2 20
6 4.8 1 2 20
6 4.8 0.7 3 14
14 2.0 5.08 0.3 12
14 2.0 2.1 1 2.5
14 2.0 3.6 1.5 1.9



vibrating screen mesh

There are three types of vibrating screens,double crimp, lock crimp, Flat top





1. Double Crimp Woven Wire
Used for medium to heavy wire in relation to screen opening size.



2. Lock pre-crimp mesh
Unlike plain crimped mesh, lock crimped mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.



3. Flat Top Woven Wire


Flat top is similar to the lock crimp, but all of its crimping is offset to one side of the material. This creates a smooth top surface-with no high points-as all wires are woven on a single plane. Its bottom side, however, has crimp bumps approximately twice the height of lock crimp bumps. Flat top was originally created to allow for the smooth flow of materials over the surface and provide a flat face for use as backer screens. Flat top is ideal for aggregate sizing and sorting, agriculture, filtration, and heat-treating applications.



4. Intermdiate Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).



Products Common Specifications:
Name Heavy duty wire Crimped Wire Mesh.Mine Mesh. Vibratingscreen mesh
material 65Mn,45#,50#,55#,60#,70#,72A, 304, 316, 316L
wire 0.8mm-12.7mm
Opening 2mm to 100mm
1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.
7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.


vibrating screen mesh



vibrating screen mesh

1.5m X 1.95m Size Vibrating Screen Mesh Mine Hook Crimped Wire Rectangular Hole 3

Applications

  • Mining industry
  • Coal factory
  • Construction industry
  • Food processing and meat industry

vibrating screen mesh

Packing:

>Plastic film inside, and outside weaving bag.
>Plastic film inside, outside the hessian bag.
>Paper carton packing.

packing of vibrating screen mesh
