65 Mn Woven Crimped Wire Vibrating Screen Mesh for Vibrating Stone
Vibrating screen mesh is made of high quality is a manufacturing in Ferrous & Non Ferrous Metal . It has various weaving method , such as the double crimped , flat top crimped , intermediate crimped and lock crimped . The vibrating screen mesh has square opening and rectangle opening , which has different wire diameters and applications . The pre-crimped weaving method can assure the accurate open area and make the structure stability and smooth . The vibrating screen mesh has various applications . The heavy duty crimped woven wire cloth can be used as vibrating screen in the mining , coal , crusher and other industries . The light vibrating screen mesh with thinner wire diameter and small opening size can be used as Grilled Wiremesh , pig feeding , protective fences for the equipment and stairs .
Material: Mild steel,Medium carbon steel,High carbon steel,Manganese wire, Spring steel,High tensile wire,Stainless steel etc.
Mesh: Square mesh and Triple Slot mesh.
Crimping: Double crimped,Inter crimped,Lock crimped etc.
Opening: 3mm to 150mm with wires 1.4mm to 12.7mm thick;
pecification: width up to 2.2m, no length limitation.
Edge: Raw Edge,plated sheathed,hooked,inner plated welded etc.
Thinner wire screen can also be supplied in rolls.
Screens are consumables,so we focus on quality to win long term business cooperation.
Double Crimp Woven Wire
Used for medium to heavy wire in relation to screen opening size.
Lock pre-crimp mesh
Unlike plain crimped mesh, lock crimped mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.
Flat Top Woven Wire
Flat top is similar to the lock crimp, but all of its crimping is offset to one side of the material. This creates a smooth top surface-with no high points-as all wires are woven on a single plane. Its bottom side, however, has crimp bumps approximately twice the height of lock crimp bumps. Flat top was originally created to allow for the smooth flow of materials over the surface and provide a flat face for use as backer screens. Flat top is ideal for aggregate sizing and sorting, agriculture, filtration, and heat-treating applications
Intermdiate Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).
vibrating screen sheet
Specification:
| Aperture mm |
Aperture Tolerance mm |
Wire mm |
Edge Length mm |
Weight kg/m2 |
| |
Minimum |
Maximum |
|
Minimum |
Maximum |
|
| 101.60 |
98.55 |
104.65 |
12.70 |
12.70 |
50.80 |
17.92 |
| 88.90 |
86.23 |
91.57 |
12.70 |
12.70 |
44.45 |
20.16 |
| 76.20 |
73.91 |
78.49 |
12.70 |
12.70 |
38.10 |
23.04 |
| 63.50 |
61.60 |
65.41 |
12.70 |
12.70 |
31.75 |
26.88 |
| 63.50 |
61.60 |
65.41 |
9.19 |
9.19 |
31.75 |
14.76 |
| 57.15 |
55.44 |
58.86 |
9.19 |
9.19 |
28.58 |
16.17 |
| 50.80 |
49.28 |
52.32 |
12.70 |
12.70 |
25.40 |
32.26 |
| 50.80 |
49.28 |
52.32 |
11.10 |
11.10 |
25.40 |
25.28 |
| 50.80 |
49.28 |
52.32 |
9.19 |
11.10 |
25.40 |
17.88 |
| 50.80 |
49.28 |
52.32 |
7.92 |
7.92 |
25.40 |
13.57 |
| 44.45 |
43.12 |
45.78 |
9.19 |
9.19 |
22.23 |
20.00 |
| 44.45 |
43.12 |
45.78 |
7.92 |
7.92 |
22.23 |
15.21 |
| 41.28 |
40.04 |
42.51 |
9.19 |
9.19 |
20.64 |
21.25 |
| 41.28 |
40.04 |
42.51 |
7.92 |
7.92 |
20.64 |
16.19 |
| 38.10 |
36.69 |
39.24 |
9.19 |
9.19 |
19.05 |
22.68 |
| 38.10 |
36.69 |
39.24 |
7.92 |
7.92 |
19.05 |
17.31 |
| 38.10 |
36.69 |
39.24 |
7.19 |
7.19 |
19.05 |
14.49 |
| 31.75 |
30.80 |
32.70 |
9.19 |
9.19 |
15.88 |
26.20 |
| 31.75 |
30.80 |
32.70 |
7.92 |
7.92 |
15.88 |
20.08 |
| 31.75 |
30.80 |
32.70 |
7.19 |
7.19 |
15.88 |
16.85 |
| 28.58 |
27.72 |
29.43 |
7.92 |
7.92 |
14.29 |
21.83 |
| 28.58 |
27.72 |
29.43 |
7.19 |
7.19 |
14.29 |
18.35 |
| 25.40 |
24.64 |
26.16 |
7.92 |
7.92 |
12.70 |
23.91 |
| 25.40 |
24.64 |
26.16 |
7.19 |
7.19 |
12.70 |
20.14 |
| 19.05 |
18.48 |
19.62 |
5.72 |
5.72 |
9.53 |
16.78 |
| 15.88 |
15.40 |
16.35 |
4.50 |
4.50 |
7.94 |
12.62 |
| 11.00 |
10.67 |
11.33 |
4.00 |
4.00 |
5.50 |
13.55 |
| 10.00 |
9.70 |
10.03 |
4.00 |
4.00 |
5.00 |
14.51 |
| 8.00 |
7.76 |
8.24 |
4.00 |
4.00 |
4.00 |
16.93 |
| 6.35 |
6.16 |
6.54 |
2.67 |
2.67 |
3.18 |
10.04 |
| 6.30 |
6.11 |
6.49 |
2.50 |
2.50 |
3.15 |
9.93 |
| 4.00 |
3.88 |
4.12 |
2.00 |
2.00 |
2.00 |
9.31 |
| 3.00 |
2.91 |
3.09 |
2.00 |
2.00 |
2.00 |
11.17 |
| 2.00 |
1.94 |
2.06 |
1.50 |
1.50 |
1.50 |
8.99 |
|
Carbon Steel Parameter:
| Carbon Steel Grades |
| No. |
Steel Grade |
Chemical Composition (%) |
| C |
Si |
Mn |
| 1 |
#45 |
0.42-0.50 |
0.17-0.37 |
0.50-0.80 |
| 2 |
#50 |
0.47-0.55 |
| 3 |
#55 |
0.52-0.60 |
| 4 |
#60 |
0.57-0.65 |
| 5 |
#65 |
0.62-0.70 |
| 6 |
#70 |
0.67-0.75 |
| 7 |
65Mn |
0.62-0.70 |
0.90-1.20 |
| 8 |
72A |
0.70-0.75 |
0.15-0.35 |
0.30-0.60 |
Note:
Steel grades #45, #50 and #55 are medium-carbon steel. Steel grades #60, #65, #70, 65Mn and 72A are high carbon steel |
Photo:

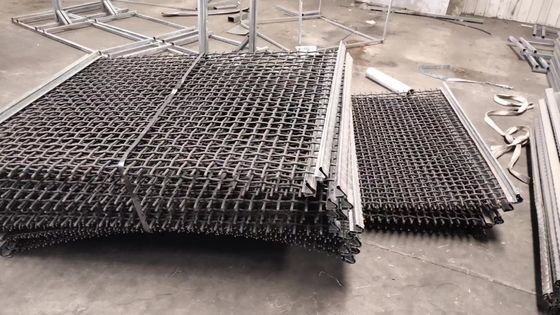

Vibrating Screen Mesh for Vibrating Stone

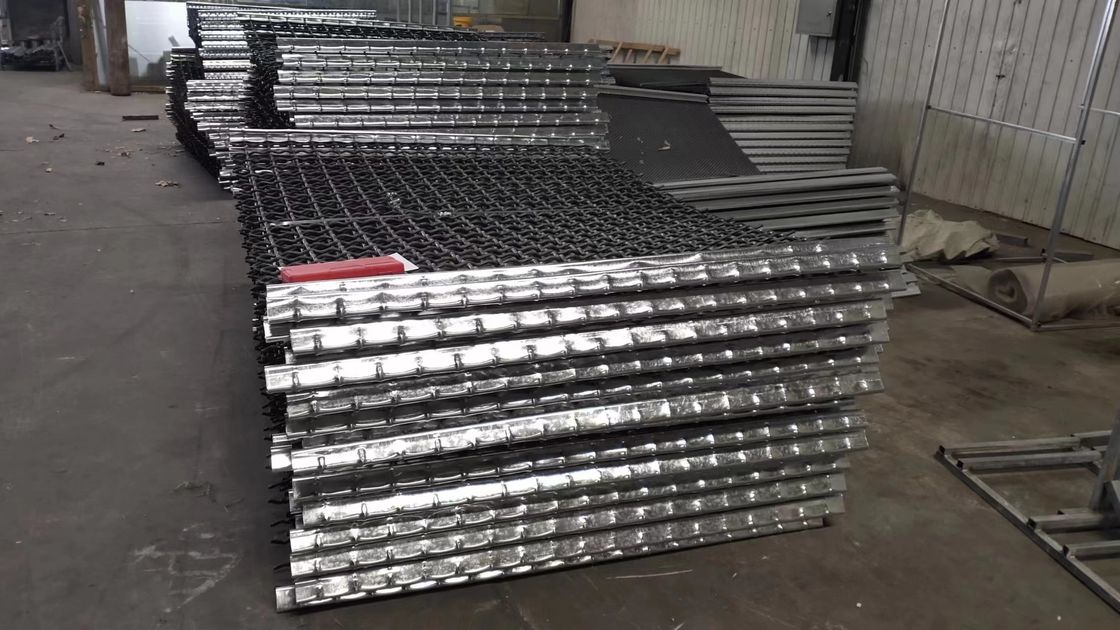

Vibrating Screen Mesh for Vibrating Stone
Application
Manganese steel vibrating screen mesh can be used as the screen deck in the stone crushers, vibrating screens, and trommel screens.
Manganese steel vibrating screen mesh is widely used for screening all kinds size of sand, gravel, coal, stone, rock, metal material and other ore material in mining, quarry, aggregate industries.
vibrating screen mesh for vibrating stone
vibrating screen mesh for vibrating stone
