|Material:||PVC Coated Galvanized Steel Wire||Wire Diameter:||2.7 / 3.7 Mm|
|Mesh:||80 X 100 Mm||Type:||Double Twisted Hexagonal Woven Mesh|
|Hole Shape:||Hexagonal||Dimension:||1 X 1 X 1 M, 3 X 1 X 1 M, 6 X 2 X 1 M|
|Wire Gauge:||4mm,2.2-4MM||Application:||Gabions,Construction Wire Mesh,Garden|
|Surface Treatment:||Galfan,Galvanized,PVC Coated,hot Dip Galvanized||Product Name:||Gabion Basket,Gabion Box Factory,flood Retaining Wall Control Welded Gabion Box Basket,Factory Supply Gabion Mesh,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion|
|Feature:||Easily Assembled,Beautiful,An Economy,constructions Is Simple,Save On Shipping Costs||Aperture:||80*100mm,60*80mm,50x50mm,100*120mm,50x50mm 60x60mm 50x100mm|
|Color:||Green,blue,Silver Dark Green||Packing:||Pallet,preservative Film|
|Usage:||Protection,family,farm,welded Galvanized Gabion Baskets,Military Applications|
80 x 100 mm welded gabion baskets,
pvc coated galvanized welded gabion baskets,
3 x 1 x 1 m welded mesh gabion baskets

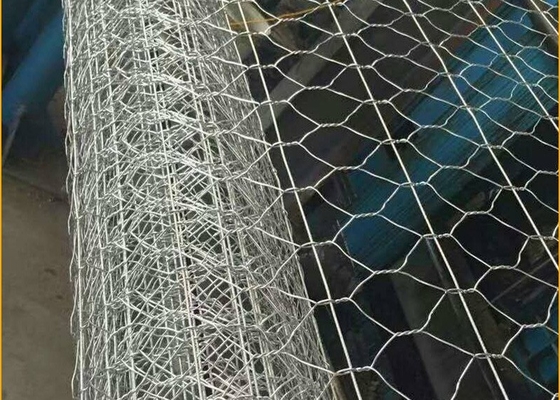

ASTM A 975 kenya 2x1x1m Galvanized Hexagonal Wire Netting Chicken Wire Mesh
Woven gabion baskets refer to a rectangular box with double or triple twist hexagonal steel mesh fabric made form galfan wire or PVC wire. They are successfully applied to various rough conditions. Such as gabion retaining wall, gabion fence and gabion channels, etc.
Besides galvanizing, the extra PVC coating could provide stronger corrosion resistance ability. It is further extruded with 0.5mm thick PVC Coating. The PVC coating is UV stabilized as per ASTM A 975.
The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion.
Selvedge / Edge wire which is a thicker and heavier wire is used to reinforce the edges and transverse diaphragm. It gives greater rigidity and shape to the Gabion Basket.
The fabric of Galvanized Gabion Basket shall be triple-twisted hexagonal woven steel wire mesh complying with BS 1052. All wire used in the manufacture of the basket, diaphragm, binding, and connecting wire shall be galvanized as specified in BS 443, EN: 10244-2 with a coating of zinc by an electrolytic galvanizing process. The minimum weight of galvanizing shall be as given in Table. Zinc coatings shall be uniform and at all points more than 25 mm from a cut end, the coating shall be able to withstand a minimum number of dips and adhesion tests specified as per EN: 10244-2.
|Gabion Basket Size||Mesh Gride Size|
|Length(m)||Width(m)||Height(m)||Galvanized or PVC coated||Galvanized or PVC coated|
|Zinc mass(g/m²)||Mesh wire
|Zinc mass(g/m²)||Mesh wire
|Heavy hexagonal mesh|
|Mesh Opening (MM)||Iron Wire Diameter (MM)||(PVC Wire)/ Inside diameter/Outer diameter(MM)||Roll Width (M)|
The appropriate conditions of Galvanized Gabion Basket for use
● Dry conditions
● Subjected to short periods of contact with water
● Not to be submerged below water level
● Used in non corrosive soil & non corrosive water quality applications
drawing of gabion basket
|Mesh Type||Nominal Dimension D Values||Tolerances|
|6 x 8||64 mm [2.50 in.]||±10 %
|8 x 10||83 mm [3.25 in.]|
|Typical Gabion Basket Sizes|
/ Gabion Mattress made from a hexagonal double twisted wire mesh with a mesh type 6x8. The wire mesh diameter is 2.2 mm. The wire mesh diameter is 2.2 mm.
1. Economy:gabions' structures are very simple,just fill the stone into the gabions then close the gabion ,the structure will be quickly finished,low maintenance required .
2. Durable:galvanized wire ,it could resist the natural destroy and corrosion etc,so the life time is longer.
3. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
4. Good permeation can prevent the damage by hydrostatic.
5. Easily construct, no special technology needed.
6. Strong capacity of withstand nature destroy, rust-resistance and atrocious weather resistance
7. Affording Large scale distortion, but never be defeated.
8. Excellent Penetrability, which can prevent from the whist by liquid.
9. Saving the transport costs. Which can fold while loading and transport, then assemble
STANDARD PARAMETERS OF / GABION MATTRESS:
|Length (m)||Width (m)||Height (m)||Mesh Type|
|3||2||0.17 - 0.23 - 0.30||6x8|
|4||2||0.17 - 0.23 - 0.30||6x8|
|5||2||0.17 - 0.23 - 0.30||6x8|
|6||2||0.17 - 0.23 - 0.30||6x8|
Related standards for gabion
We always supply 3% lacing wire along with the material, which are used to assemble and interconnect empty units, to close and secure stone-filled units, and for internal stiffeners.
Packaging & Shipping
Baskets folded and bundled with steel wires, then with or without pallets as per customers' requirements.
