Mining Industry Screen Mesh Vibrating Sieving Screens
Crimped Wire Mesh can be also known as the iron crimped mesh, stainless steel crimped mesh, black iron crimped mesh according to different materials.
Crimped Wire Mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.
Crimped Wire Mesh Material: Iron wire, black wire, stainless steel wire, copper wire and other non-ferrous metal.
Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.
Features: Structure firm and durable.
Uses: Used for mining, coal plants, construction, petrochemical industry, construction machinery, etc.
| Wire Gauge SWG |
Wire Diameter |
Mesh/Inch |
Aperture mm |
Weight kg/m2 |
| 14 |
2.0 |
21 |
1 |
4.2 |
| 8 |
4.05 |
18 |
1 |
15 |
| 25 |
0.5 |
20 |
0.61 |
2.6 |
| 23 |
0.61 |
18 |
0.8 |
3.4 |
| 24 |
0.55 |
16 |
0.1 |
2.5 |
| 24 |
0.55 |
14 |
0.12 |
4 |
| 22 |
0.71 |
12 |
0.14 |
2.94 |
| 19 |
1 |
2.3 |
0.18 |
1.45 |
| 6 |
4.8 |
1.2 |
2 |
20 |
| 6 |
4.8 |
1 |
2 |
20 |
| 6 |
4.8 |
0.7 |
3 |
14 |
| 14 |
2.0 |
5.08 |
0.3 |
12 |
| 142. |
2.0 |
2.1 |
1 |
2.5 |
| 14 |
2.0 |
3.6 |
1.5 |
1.9 |
| Mesh |
Hole Dia(Micron) |
Hole Dia(Millimeters) |
Hole Dia(inches) |
| 4 |
5205 |
5.200 |
0.2030 |
| 8 |
2487 |
2.400 |
0.0970 |
| 10 |
1923 |
1.900 |
0.0750 |
| 12 |
1615 |
1.600 |
0.0630 |
| 14 |
1307 |
1.300 |
0.0510 |
| 18 |
1000 |
1.000 |
0.0394 |
| 20 |
840 |
0.840 |
0.0331 |
| 25 |
710 |
0.710 |
0.0280 |
| 30 |
590 |
0.590 |
0.0232 |
| 35 |
500 |
0.500 |
0.0197 |
| 40 |
420 |
0.420 |
0.0165 |
| 45 |
350 |
0.350 |
0.0138 |
| 50 |
297 |
0.300 |
0.0117 |
| 60 |
250 |
0.250 |
0.0098 |
| 70 |
210 |
0.210 |
0.0083 |
| 80 |
177 |
0.180 |
0.0070 |
| 100 |
149 |
0.150 |
0.0059 |
| 120 |
125 |
0.130 |
0.0049 |
| 140 |
105 |
0.110 |
0.0041 |
| 170 |
88 |
0.088 |
0.0035 |
| 200 |
74 |
0.074 |
0.0029 |
| 230 |
62 |
0.062 |
0.0024 |
| 270 |
53 |
0.053 |
0.0021 |
| 325 |
44 |
0.044 |
0.0017 |
| 400 |
37 |
0.037 |
0.0015 |
| 550 |
25 |
0.025 |
0.0090 |
| 800 |
15 |
0.015 |
0.0006 |
| 1250 |
10 |
0.010 |
0.0004 |
| type |
C |
Mn |
P |
S |
Si |
N |
Mo |
Ni |
Cr |
| 201 |
0.15 |
5.5-7.5 |
0.045 |
0.03 |
0.75 |
0.25 |
0 |
3.50-5.50 |
16.00-18.00 |
| 304 |
0.08 |
2 |
0.045 |
0.03 |
1 |
0.1 |
0 |
8.00-10.50 |
18.00-20.00 |
| 304L |
0.03 |
2 |
0.045 |
0.03 |
1 |
0.1 |
0 |
8.00-12.00 |
18.00-20.00 |
| 316 |
0.08 |
2 |
0.045 |
0.03 |
1 |
0 |
2-3 |
10.00-14.00 |
16.00-18.00 |
| 316L |
0.03 |
2 |
0.045 |
0.03 |
1 |
0 |
2-3 |
10.00-14.00 |
16.00-18.00 |

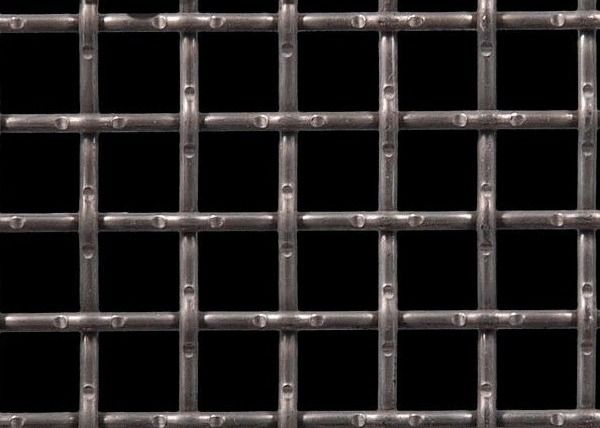

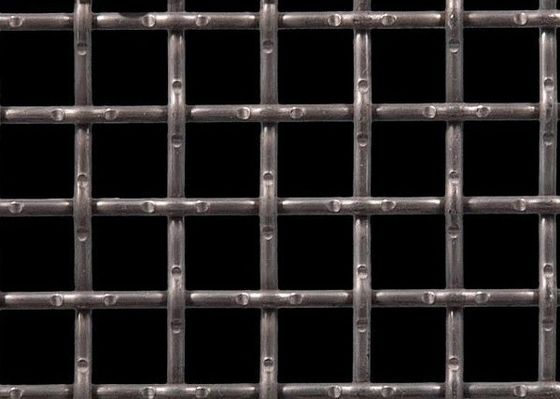

Vibrating screen mesh/Crimped Wire Mesh for Mining (factory)
1.Vibrating screen mesh Material:
1) Stainless steel wire (201,202,302,304,304L,310,316,316L)
2) High carbon steel wire, low carbon steel, medium carbon steel, steel wire, black wire.
3) Galvanized iron wire,galvanized steel wire
Aluminum wire,copper wire,non-ferrous metal wire,Other materials are available on request.

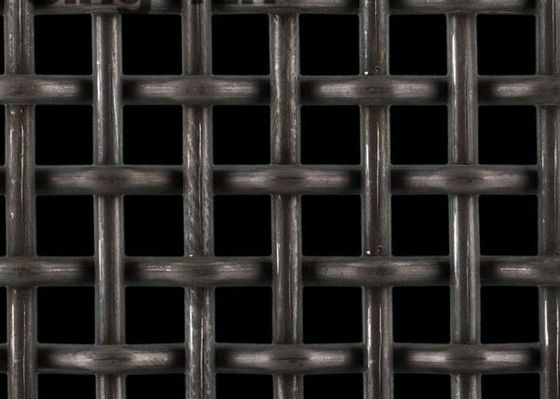

2.Vibrating screen mesh crimp methods: plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3.Vibrating screen mesh Features: Even mesh, strong structure
4.Vibrating screen mesh specifications:
Wire diameter:0.3mm~12mm
Hole size:1.5mm ~50mm
Applications
Mining industry
Coal factory
Construction industry
Food processing and meat industry
| SWG |
Wire diameter (mm) |
mesh |
Mesh size ( mm) |
Weightkg/m2 |
| 14 |
2.0 |
21 |
1 |
4.2 |
| 8 |
4.05 |
18 |
1 |
15 |
| 25 |
0.50 |
20 |
0.61 |
2.6 |
| 23 |
0.61 |
18 |
0.8 |
3.4 |
| 24 |
0.55 |
16 |
0.1 |
2.5 |
| 24 |
0.55 |
14 |
0.12 |
4 |
| 22 |
0.71 |
12 |
0.14 |
2.94 |
| 19 |
1 |
2.3 |
0.18 |
1.45 |
| 6 |
4.8 |
1.2 |
2 |
20 |
| 6 |
4.8 |
1 |
2 |
20 |
| 6 |
4.8 |
0.7 |
3 |
14 |
| 14 |
2.0 |
5.08 |
0.3 |
12 |
| 14 |
2.0 |
2.1 |
1 |
2.5 |
| 14 |
2.0 |
3.6 |
1.5 |
1.9 |
Features
High strength, not easily deformed.
Wear resistance, corrosion resistance, and rust resistance.
High temperature is resistant.
High-quality ductility and toughness.
Mesh uniform.
Long service life.
The opening of the cloth is neat and precise.
Various materials for choice.
Beautiful surface.
Acid and alkali resistance.
Uses: used in mining, petrochemical, food and medical equipment, can be widely used in various
machinery manufacturing industries
