Black Iron Square 6.0 Mm Crimped Woven Wire Mesh Panel For Pig Raising

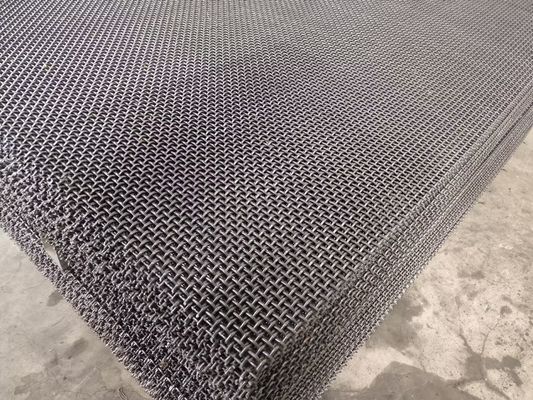

Large Image : Black Iron Square 6.0 Mm Crimped Woven Wire Mesh Panel For Pig Raising

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	QJ-355

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	With steel pallets
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	3000 pcs per month

Contact Now

Detailed Product Description

Material:	Manganese Steel	Wire Diameter:	6.0 Mm
Hole Shape:	Rectangle	Weaving Type:	Plain Weave
Technic:	Woven Mesh	Tensile Strength:	800 - 1000 MPa
Highlight:	6.0 mm crimped woven wire mesh , pig raising crimped woven wire mesh , 6.0 mm crimped mesh

Black Iron Square Woven Crimped Wire Mesh Panel For Pig Raising

Crimped woven wire mesh is made of high quality carbon steel wire, stainless steel wire, galvanized steel wire, spring steel, copper wire, brass wire and other non ferrous metals, through crimping mesh machine, a kind of universal wire product with accurate & consistent Square & Rectangular openings. It has various weaving method, such as the double crimped, flat top crimped, intermediate crimped and lock crimped. The crimped woven wire mesh has square opening and rectangle opening, which has different wire diameters and applications.

CRIMPED WOVEN WIRE MESH FEATURE:

warp and weft wire lay in each crimp
smooth woven construction
evenly crimped in warp and weft, providing a rigid construction

IMPORTANT FACTS TO CONSIDER WHEN ORDERING SCREENS:

When screens form part of the manufacturing process, the profits will depend on the specification of the screens which must be chosen to give optimum performance. The specification of the screen best suited to the screening operation depends on.

CRIMPED WIRE MESH
Material	carbon steel wire, galvanized wire, stainless steel wire, copper wire, brass wire
Weave type	Plain crimped, Intermediate crimped, Lock crimped, Flat Top crimped
Mesh size	* Diameter 1.0mm x mesh opening 8mm, 10mm. * Diameter 1.5mm x mesh opening 6mm, 12.5mm, 19mm or 25.4mm * Other details according your request
Width	0.914mm, 1mm, 1.2mm, 1.5mm or as your request
Length	15m, 20m, 30m or as your request

Wire Gauge SWG	Wire Diameter	Mesh/Inch	Aperture mm	Weight kg/m2
14	2.0	21	1	4.2
8	4.05	18	1	15
25	0.5	20	0.61	2.6
23	0.61	18	0.8	3.4
24	0.55	16	0.1	2.5
24	0.55	14	0.12	4
22	0.71	12	0.14	2.94
19	1	2.3	0.18	1.45
6	4.8	1.2	2	20
6	4.8	1	2	20
6	4.8	0.7	3	14
14	2.0	5.08	0.3	12
142.	2.0	2.1	1	2.5
14	2.0	3.6	1.5	1.9

WEAVE TYPE OF CRIMPED WOVEN SCREEN MESH

CRIMPED WOVEN SCREEN MESH DISPLAY

CRIMPED WOVEN WIRE MESH APPLICATION
* Stainless steel woven wire mesh for screening / sieving commonly is used in the food processing industry. such as BBQ mesh
* Powder coated, brass or stainless steel crimped wire mesh be used in decorative. such as wall
* High tensile steel crimped wire mesh generally be used in mine industrial, as quarry screen mesh.

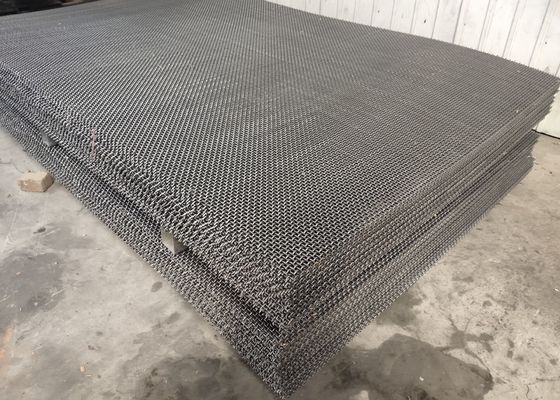

Black Iron Square 6.0 Mm Crimped Woven Wire Mesh Panel For Pig Raising 2

Black Iron Square 6.0 Mm Crimped Woven Wire Mesh Panel For Pig Raising 3

* Flat top crimped mesh for pig rasing
* Crimped wire mesh for fan cover
* Crimped mesh fence

Crimped Wire Mesh Package:

* packed with woven bag and plstic film then packed into crate or pallets
