Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Wire | Type: | Weave Wire Mesh |
|---|---|---|---|
| Weave Style: | Plain Weave | Technique: | Woven |
| Application: | Protecting Mesh,Woven Wire Mesh,Filters,Zoo,airport | Feature: | High-strength |
| Product Name: | SS 304 Decorative Wire Mesh,smoking Pipe Filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,sus304 Stainless Steel Wire Mesh,Flexible Stainless Steel Wire Rope Cable Rope Ferrule Mesh | Hole Shape: | Square Hole |
| Wire Diameter: | Requirement | Usage: | Protecting Mesh,decorative Wire Mesh,filter,oil,Filter/acid Resistance/high Magnetic |
| High Light: | 302 flexible stainless steel cable mesh,flexible stainless steel cable mesh 7x19 |
||
Cheap Price with Flexible Stainless Steel Cable Netting Security Fence Mesh Steel Wire Mesh Green Wall Mesh
Product Description
Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L. Stainless steel rope mesh can be divided into two kinds according to the combination method: stainless steel knotted rope mesh and stainless steel ferrule rope mesh. The former is combined by the ropes winded together. And the latter is combined by the ferrules which are made up from the same grade stainless steel.
Stainless steel rope mesh, also known as stainless steel cable mesh or wire rope mesh, is a type of mesh made of high-quality stainless steel wire ropes. It is a popular choice for various applications such as animal enclosures, safety nets, architectural facades, and green wall systems.
The stainless steel rope mesh is known for its excellent durability, high tensile strength, and corrosion resistance. It is made of stainless steel cables that are tightly woven and interconnected to form a strong and flexible mesh. The mesh can be customized to fit any shape or size and can be used both indoors and outdoors.
The stainless steel rope mesh is easy to install and maintain. It can be attached to any type of frame, such as wood or metal, and can be cut to fit any shape or size. It is also easy to clean and can be hosed down or wiped with a cloth.
The stainless steel rope mesh is a sustainable and environmentally friendly choice. It is made of high-quality stainless steel that is resistant to rust and corrosion, making it a long-lasting option that requires minimal maintenance. It is also 100% recyclable and can be reused for other applications.
Overall, the stainless steel rope mesh is a versatile and durable solution for various applications. Its unique combination of strength, flexibility, and durability make it a popular choice for animal enclosures, safety nets, architectural facades, and green wall systems.

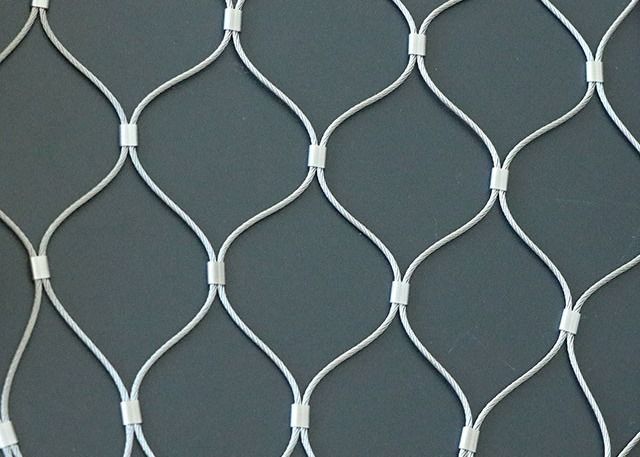

The flexible stainless steel cable mesh ferrule type is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane. As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. And the weave opening,we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
| Product Name | Decoration Rope Wire Mesh |
| Material | SUS302, 304, 316, 316L |
| Wire diameter | 1.0mm-3.0mm |
| Structure | 7*7,7*19. |
| Mesh opening size | 1"*1",2"*2",3"*3",4"*4". |
| Feature | Handle Made Environmental Protection Extensive Use Premium Quality Direct from Factory Product Life Cycle Lifetime Support |
| Packing | The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates. |
1. Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
2. Hand woven mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

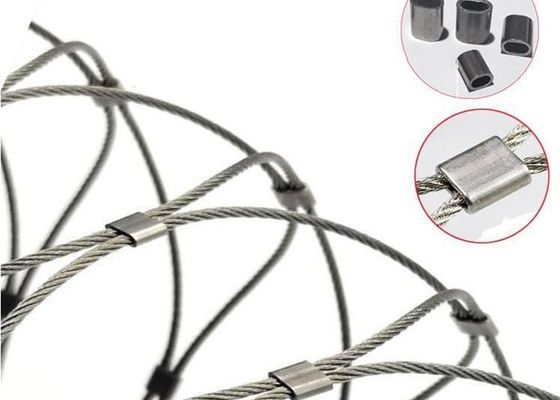

3. Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
Stainless steel rope net is a net-like product processed by stainless steel rope according to certain methods and procedures. The common ones are mainly stainless steel buckle rope net and stainless steel braided rope net. The stainless steel buckle rope net is extruded and woven by stainless steel wire rope and stainless steel buckle.The steel buckle is mainly made of stainless steel buckle, and there are also aluminum buckles and copper buckles for customers to choose from.The stainless steel rope mesh woven net is formed by cross-weaving with a plurality of steel wire ropes, and the net is durable and unbreakable, and the bearing capacity is large.
Measurement
Knotted mesh:
| Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force | ||
| Inch | mm | Inch | mm | KN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| BR-04 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| BR-05 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| BR-08 | 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| BR-09 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| BR-10 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| BR-11 | 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| BR-12 | 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| BR-13 | 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| BR-14 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| BR-16 | 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| BR-17 | 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| BR-18 | 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| BR-19 | 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| BR-20 | 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| BR-21 | 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| BR-22 | 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| BR-23 | 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
| BR-24 | 7 × 7 | 3/64 | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |
| Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | |
| Inch | mm | mm | kN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
| BR-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 |
| BR-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
| BR-08 | 7 × 7 | 5/64 | 2 | 100 × 173 | 3.17 |
| BR-09 | 7 × 7 | 5/64 | 2 | 90 × 156 | 3.17 |
| BR-10 | 7 × 7 | 5/64 | 2 | 80 × 139 | 3.17 |
| BR-11 | 7 × 7 | 5/64 | 2 | 70 × 121 | 3.17 |
| BR-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
| BR-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
| BR-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
| BR-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
| BR-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
| BR-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
| BR-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
Specifications can be customized according to customer needs.
Stainless Steel Cable Mesh Advantage :
1. High strength, strong toughness, free angles curving and fold, easy for transportation and installment.
2. It can bear heavy snow and glae.
3. Without toxic material, safety, environmental protection.
Application
1.Slope Protection Rope Mesh
Slope protection rope mesh has enough intercept strength to prevent the rocks from slope falling onto road, railway, expressway or other structures. Instead, rocks will fall to the foot of slope behind the rope mesh.
2.Zoo Mesh
Stainless steel rope zoo mesh has diamond-shaped openings and high strength, which can protect visitors from being damaged. Therefore, visitors can enjoy the animals at a close distance free of danger. What's more, it can protect animals from being hurt.
3.Aviary Netting
The mesh size and opening size of stainless steel rope mesh can be modified. So it can provide enough space and create a natural environment for birds to make them live comfortably.
4. Green Wall
Stainless steel rope mesh is resistant to corrosion and rust even though it is exposed to sun directly. And it can make the green wall with green plants. Green wall can regulate the temperature of the building and it can protect the building wall.
5. Suspension Bridge Railing Mesh
Stainless steel rope mesh is also mainly used in the suspension bridge railing. It can increase the safety performance of suspension bridges and ensure the safety of passers.
6. Balustrade Mesh
Stainless steel rope mesh is also used for the balustrade of stair or balcony. It can make the stair grand, beautiful and safer.
Packing & Delivery
1, in bulk
2. plastic film or woven on both of the sides
3. on pallet
4. customized
