1, Material: Stainless steel, Galvanized iron wire,Brass wire, Copper wire, Bronze wire.
2, Standard fixing detail: Inserted round bar with eye-bolts; clamping profile.
3, Standard width: 2.5x1.25 m, 3x1 m, 4 m, 6 m, 8 m.

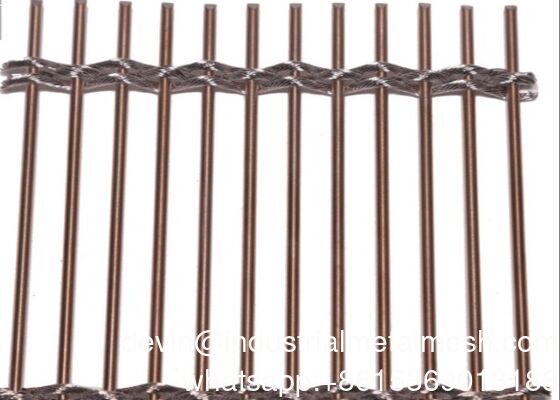

4, Characteristics: As a new material for decoration, this kind of mesh is constructed with solid rods and
cables; normally the material is stainless steel wire, aluminum and its alloy. By rods, the mesh can achieve
stability while the cables give flexibility to the mesh.
5, Usage: It is widely used as decoration and building covers outdoors. The curtain can be easily installed or
fixed into different shape.
6, Applications: It is applied for elevation, partition, ceiling in airport, hotel, theater, and exhibition.
The curtain can show different results as the changes the light, environment and looking angle
design |
open area |
cable wire dia. |
cable pitch |
bar dia. |
bar pitch |
thickness |
wt |
1 |
40% |
1x1.8 mm |
4 mm |
1.5 mm |
5.5 mm |
5.1 mm |
7.74kg/m2 |
2 |
43% |
1x2.5 mm |
6 mm |
2 mm |
8 mm |
5.5 mm |
7.87kg/m2 |
3 |
62% |
2x2.75 mm |
40 mm |
4 mm |
14.5 mm |
9.5 mm |
9.41kg/m2 |
4 |
37.20% |
3x0.5 mm |
3.5 mm |
0.5 mm |
1.4 mm |
1.3 mm |
2.4kg/m2 |
5 |
71% |
3x1.6 mm |
80 mm |
2.5 mm |
10 mm |
5.7 mm |
4.58kg/m2 |
6 |
65% |
3x2 mm |
80 mm |
3 mm |
10 mm |
7 mm |
6.67kg/m2 |
7 |
65.90% |
3x2.75 mm |
110 mm |
4 mm |
14.5 mm |
10 mm |
8.5kg/m2 |
8 |
67% |
3x3 mm |
110 mm |
4 mm |
14.2 mm |
10 mm |
8.6kg/m2 |
9 |
44.30% |
4x0.75 mm |
26.4 mm |
1.5 mm |
3 mm |
3 mm |
5.2kg/m2 |
10 |
62% |
4x1 mm |
36 mm |
2 mm |
6.6 mm |
4 mm |
4.55kg/m2 |
11 |
40% |
4x2 mm |
50 mm |
3 mm |
6 mm |
7mm |
11.2kg/m2 |
12 |
42% |
4x2 mm |
50 mm |
3 mm |
6 mm |
7 mm |
11.8kg/m2 |
