Product Details:
Payment & Shipping Terms:
|
| Compatibility: | Fits Most Plate Sizes And Shapes | Design: | Sleek And Modern Design |
|---|---|---|---|
| Durability: | Durable And Long-lasting | Easy To Clean: | Dishwasher Safe |
| Easy To Use: | Simply Place Under The Plate Before Heating | Function: | Prevent Plates From Splitting Or Breaking |
| Heat Resistance: | Can Withstand High Temperatures | Material: | High-quality Plastic |
| Non-Toxic: | Made From Non-toxic Materials | Packaging: | Comes In A Set Of 4 Plates |
| Reusable: | Can Be Used Multiple Times | Size: | Standard Size, Suitable For Most Plates |
| High Light: | Sleek ground spike anchor,modern design ground spike anchor,Sleek pole anchor |
||

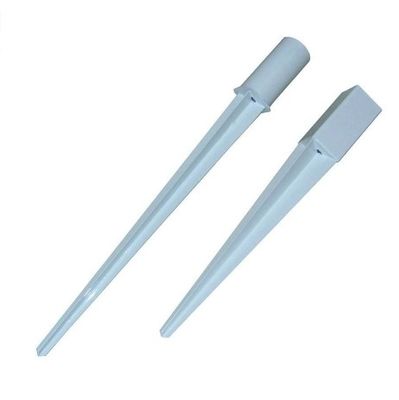

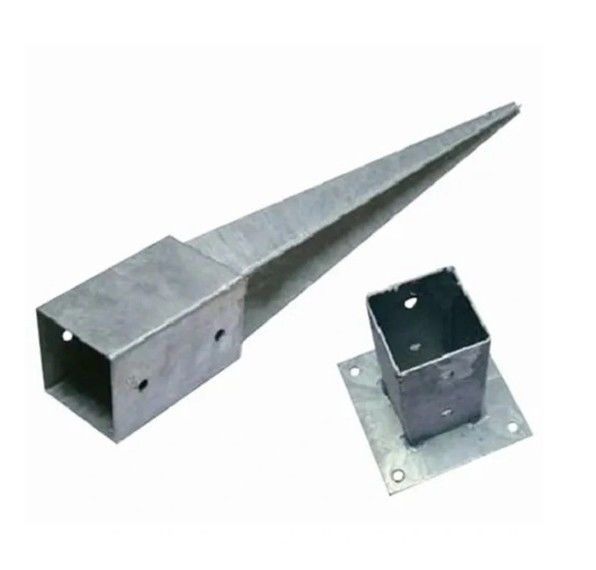

Ground Spike Anchor, Pole Anchor Pointed, Post Spike
1.Material :Q235 carbon steel
2.Process: stamping and welding
3.Zinc coating :30mic ,50mic or as per request .
4.Plate thickness:1.8mm,2.0mm,2.5mm,3.0mm.
5.Square diameter:51x51mm,61x61mm,71x71mm,91x91mm etc.
6.Length:600mm,750mm,900mm etc.
7.Surface treatment: Hot-dip galvanized,Electro-galvanized ,Red painted or Spray power coated .
8.Packing :on pallets or in cartons or as requested.
9.Application:wood connector ,construction.
Dimension
| AxA (mm) | B(mm) | C(mm) | T(mm) | Surface Treatment |
| 51 | 600 | 450 | 2 | HDG or EG |
| 51 | 750 | 600 | 2 | HDG or EG |
| 71 | 750 | 600 | 2 | HDG or EG |
| 71 | 900 | 750 | 2 | HDG or EG |
| 91 | 750 | 600 | 2 | HDG or EG |
| 91 | 900 | 750 | 2 | HDG or EG |
| 101 | 750 | 600 | 2 | HDG or EG |
| 101 | 900 | 750 | 2 | HDG or EG |
| 121 | 900 | 750 | 2 | HDG or EG |
| 141 | 900 | 750 | 2 | HDG or EG |
| Specificaiton List | |||
| Name | Ground Screw Pile | Module Orientation | Vertical |
| Material | Carbon Steel | Installation Angle | 0-60 Degree |
| Finish | Hot Dipped Galvansized | Installation Site | Open Ground |
| Length | 550-4000mm | Drawing Force Parameters | 20.05-115KN |
| Outside | 60-219mm | Bearing Parameters | 35-175KN |
| Thread | 9000-1100mm | Horizontal Torsion Parameters | 8-60KN |
| Thickness | 3-6mm | Application | Solar Power System |
| Building | Up to 20m | Feature | Waterproof |
| Packaging | Steel Pallet | Service Life | 20 Years |
This post anchor in the foundation system is not only suitable for natural ground, but also for dense, and even tarred surfaces.
1. Timber Construction
2. Solar Powder System
3. Communities and Parks
4. Fencing System and gate
5. Road and Traffic
6. Sheds and Containers
7. Flag Poles and Marks
8. Garden and Leisure
Advantages
Easy to install.
EG layer: average 20um
HDG layer: average 50 um
Two layer pallet fixed the goods
Application
Pole anchors can be used in either temporary or permanent applications. Typical uses for pole anchors include for supporting retaining walls and for crop protection structures.
Typically used within civil engineering and construction projects, pole anchors are used in a variety of applications:
1.Retaining of slopes. To prevent deep seated failures. Erosion control.
2.Structural support of Temporary Buildings and Structures.
3.Typically used for the anchoring of utility poles.
4.Great success in the anchoring of trees.
Applications
This post anchor in foundation system is not only suitable for natural ground,but also for dense,and even tarred surfaces.
1.Timber Construction
2.Solar Powder System
3.Communities and Parks
4.Fencing System and gate
5.Road and Traffic
6.Sheds and Containers
7.Flag Poles and Marks
8.Garden and Leisure
Packing & Shipping
Pallet or carton packing ,other type could also be made as requested .
