Product Details:
Payment & Shipping Terms:
|
| Connection: | Springs & Rods | Dimesion: | Wide Max 4m, Length Max 8m |
|---|---|---|---|
| Durability: | Long Lasting | Flat Pitch: | 8.5mm |
| Flexibility: | Easy To Shape | Length: | 30 M |
| Material: | Stainless Steel | Mesh Count: | 10 X 10 |
| Mesh Thickness: | 4.4mm | Opening Area: | 27.3% |
| Shape: | In Rolls | Thickness: | 8mm |
| Type: | Architectural Wire Mesh--Tec-Sieve | Weave Type: | Plain Weave |
| Width: | 1 M | ||
| High Light: | 8mm architectural woven metal mesh,multi barrette architectural woven metal mesh,8mm architectural woven wire mesh |
||
Architectural Wire Mesh--Tec-Sieve Multi-Barrette Weave/Cable Mesh System
Tec-Sieve multi-barrette weave/cable mesh system consists of Tec-Sieve multi-barrette weave (cabled woven) mesh panels and Tec-Sieve mounting devices.

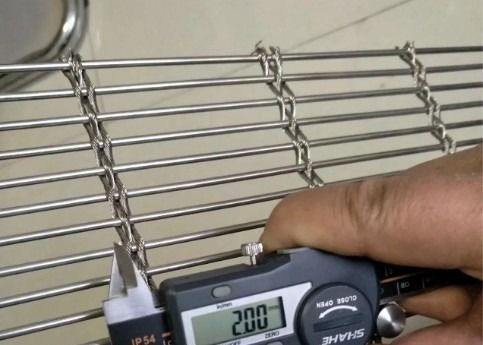

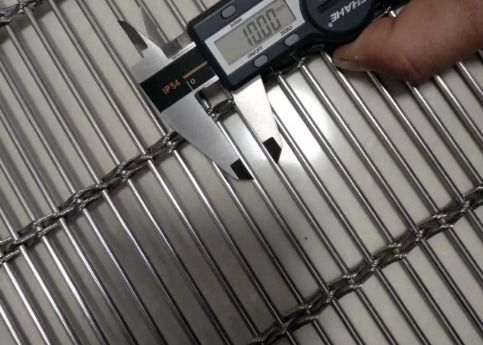

Tec-Sieve multi-barrette weave mesh panels, also known as cable mesh panels, are made from stainless steel solid rods crosswise and stainless steel cable clusters lengthwise. The cable clusters create flexibility lengthwise and the solid rods create stability crosswise so that the metal wire mesh element can be easily tensioned in one direction while remaining rigid in the other direction. Tec-Sieve multi-barrette is well suited for exterior applications where an aesthetically pleasing yet protective facade is required.
Tec-Sieve multi-barrette weave mesh panels can be woven up to 8 meters in width. We can also cut the wire mesh element to your desirable size and shape.

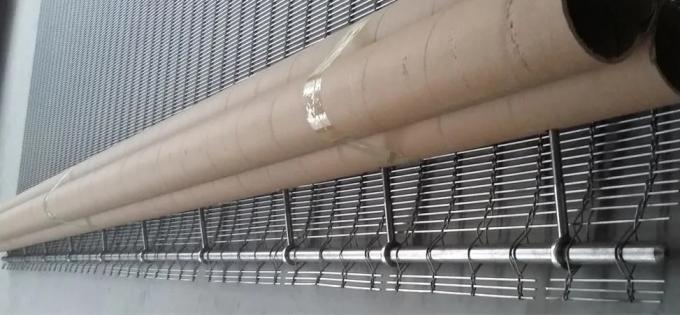

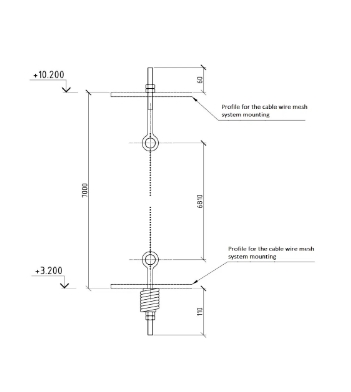

Tec-Sieve mounting devices are actually a complete set of tensioning devices, which include woven-in stainless steel round bars that are in the place of a number of weft wires (solid rods) in the multi-barrette weave metal fabric, stainless steel eyebolts, stainless steel springs and nuts & washers.
SPECIFICATION SHEET OF FREQUENTLY MADE MULTI-BARRETTE WEAVE MESH PANELS
| Model | Material | Cable Diameter | Cable Pitch | Solid Rod Diameter | Solid Rod Pitch | Weight |
| TS-4263 | Stainless Steel 304, 316 or 316L | 0.75mmX4 | 26.4mm | 1.5mm | 3mm | Ca. 5.3kg/m² |
| TS-4364 | Stainless Steel 304, 316 or 316L | 1mmX4 | 36mm | 2mm | 4mm | Ca.7kg/m² |
| TS-4506 | Stainless Steel 304, 316 or 316L | 2mmX4 | 50mm | 3mm | 6mm | Ca.11.56kg/m² |
| TS-3411 | Stainless Steel 304, 316 or 316L | 3mmX3 | 40mm | 3mm | 11mm | Ca.9.5kg/m² |
| TS-2415 | Stainless Steel 304, 316 or 316L | 2.75mmX2 | 40mm | 4mm | 14.5mm | Ca.9.41kg/m² |
| TS-3810 | Stainless Steel 304, 316 or 316L | 2mmX3 | 80mm | 3mm | 10mm | Ca.6.6kg/m² |
| TS-3865 | Stainless Steel 304, 316 or 316L | 2mmX3 | 80mm | 3mm | 6.5mm | Ca.9.74kg/m² |
| TS-1326 | Stainless Steel 304, 316 or 316L | 1.6mmX1 | 3.2mm | 1.2mm | 6mm | Ca.5kg/m² |
| TS-1315 | Stainless Steel 304, 316 or 316L | 2mmX1 | 3.1mm | 1.2mm | 5mm | Ca.10kg/m² |
| TS-1056 | Stainless Steel 304, 316 or 316L | 2.5mmX1 | 5mm | 2mm | 6mm | Ca.12.2kg/m² |
| TS-1068 | Stainless Steel 304, 316 or 316L | 2.5mmX1 | 6mm | 2mm | 8mm | Ca.9.8kg/m² |
| TS-3352 | Stainless Steel 304, 316 or 316L | 0.45mmX3 | 3.5mm | 0.5mm | 1.6mm | Ca.2.1kg/m² |
| TS-3352PC | Phosphorous Copper | 0.45mmX3 | 3.5mm | 0.5mm | 1.6mm | Ca.2.3kg/m² |
| Note: 1. Some specifications of our multi-barrette weave mesh panels can be woven through the use of phosphorous copper materials, instead of stainless steel, like TS-3352; 2. If you need any other specification not shown in this sheet, please feel free to email us asking for help from our engineer. |
||||||
TYPICAL APPLICATIONS
Facades Car Parks
Sunscreens Roller Shutters
Suspended Ceilings Floor Coverings
Wall Cladding Column Cladding
Partition Screens Projection Screens
Staircases Elevator cabins
Balustrades ......
