Duplex Quality Stainless Steel Hexagonal Perforated Metal Plate Aquaculture And Saltwater

Large Image : Duplex Quality Stainless Steel Hexagonal Perforated Metal Plate Aquaculture And Saltwater

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	2mm thickness

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	pallets
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces per week

Contact Now

Detailed Product Description

Material:	Stainless Steel	Name:	Perforated Metal Screen Sheet
Hole Type:	Rould Hole	Thickness:	2mm
Key Word:	Cold Rolled Stainless Steel Sheet /stainless Steel Plate	Length:	2000,2438,2500,3000,6000mm, Or As Your Requirements
Highlight:	Saltwater Perforated Metal Plate , Duplex Quality Perforated Metal Plate , Aquaculture Perforated Metal Plate

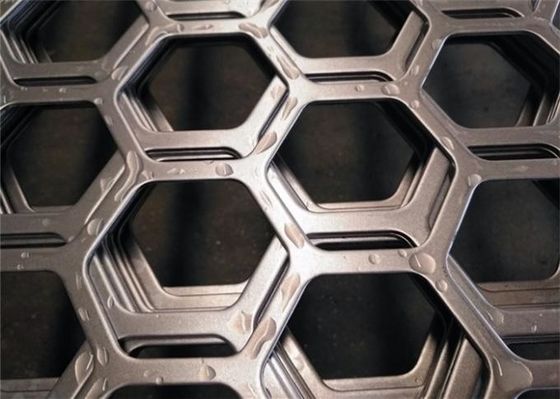

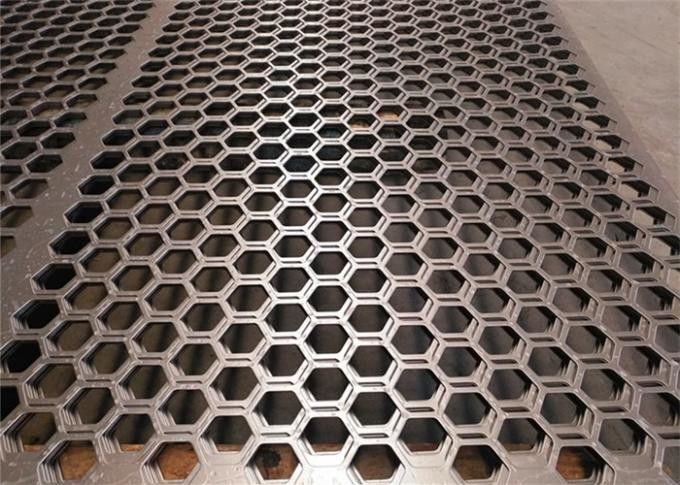

Duplex Quality Stainless Steel Hexagonal Perforated Metal Plate

Product Description

Hexagonal perforated metal is a sheet of material that contains holes punched by a hexagon die. Hexagonal perforated metal is available in a variety of gauges, patterns and materials.

Perforated Metal Mesh Punching mesh refers to making holes of different shapes in different materials to suit different needs. Most of the raw materials used in punching net are: stainless steel plate, low carbon steel plate, galvanized plate, PVC plate, cold rolled coil, hot rolled plate, aluminum plate copper plate and so on.
Punching net main specifications are rectangular hole, square hole, diamond hole, round hole, long round hole, hexagonal hole, cross hole, triangle hole, long waist hole, plus-shaped hole, fish scale hole, pattern hole, eight mesh, herringbone hole, five-pointed star hole, irregular hole, drum hole, special-shaped hole, shutter hole, etc..

Specification

Hole Type	Hexagonal Staggered
Hole Size	1/2"
Thickness	14 Gauge (.0800")
Hole Centers	9/16"
Application	Safety Guards● Filtration● Screening● Trash Receptacles● Benches● Drain Covers"
Bar Width	1/16"
Hole Arrangement	60°
Open Area	79%

Common Specifications

Here are some common ordering specifications of the hexagonal hole perforated metal.

Hexagonal Hole
Item	a (mm)	t (mm)	P (%)
Sv 8-10.5	8	10.5	58.1
Sv 8-12	8	12	44.4
Sv 10-15	10	15	44.4
Sv 10-18	10	18	30.9
Sv 10-28	10	28	12.8
Sv 12-16	12	16	56.3
Sv 14-21	14	21	44.4
Sv 16-21	16	21	58.1
Sv 16-34	16	34	22.1
Sv 18-25	18	25	51.8
Sv 20-26	20	26	59.2
Sv 20-28	20	28	51.0
Sv 22-30	22	30	53.8
Sv 25-35	25	35	51.0
Sv 30-44	30	44	46.5
Sv 32-40	32	40	64.0
Sv 35-48	35	48	53.2
Sv 36-48	36	48	56.3
Sv 50-65	50	65	59.2

Some of our Perforated Metal features:

Highest percentages of open area
High strength-to-weight ratio
Economical
Versatile
Aesthetically appealing
Allows for passage of air, light, sound, and gases
Pressure equalization or control
Provides security

Application

Our hexagonal perforated metal can provide a substantial open area and is primarily used for high airflow and architectural applications. We carry hexagonal perforated metal in a variety of gauges, hole sizes, patterns, and materials to suit any perforated metal project. The holes in hexagonal perforated metal not only provide an aesthetic appeal, but also add security.

Not only are there many features of our hexagonal perforated metal, there are also many applications for hexagonal perforated metal, including:
