Dutch Twill Woven Mesh 200 Mesh 300 Mesh Stainless Steel Filter Mesh Woven Mesh

Dutch Twill Woven Mesh 200 Mesh 300 Mesh Stainless Steel Filter Mesh Woven Mesh

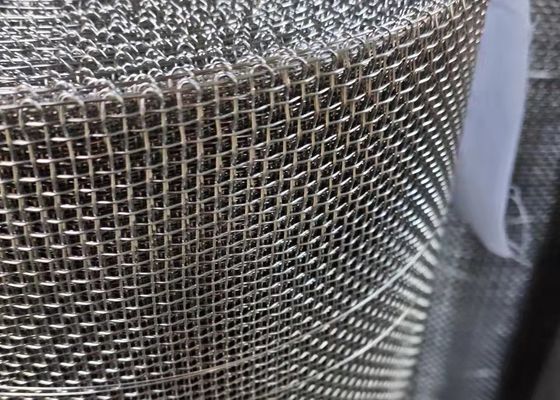

Large Image :  Dutch Twill Woven Mesh 200 Mesh 300 Mesh Stainless Steel Filter Mesh Woven Mesh

Product Details:
Place of Origin: HeBei,China
Brand Name: QiJie
Certification: Certification ISO
Model Number: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: discuss
Packaging Details: 430 70micron stainless steel wire mesh 1. paper tube/Waterproof paper inside , then wooden box outside 2. Customized package is also avaliable
Delivery Time: 15-30 days
Payment Terms: 30%TT
Supply Ability: 50000 rolls
Detailed Product Description
Material:: Stainless Steel Wire, Stainless Steel Wire Type:: Weave Wire Mesh, Wire Cloth,Weave Wire Mesh
Technique:: Plain Woven Size:: 1.5*30m
Application:: Screen, Filters Window Weave Style:: Plain Weave
Mesh:: 1-100mesh Wire Diameter:: 0.15-4.0mm
Highlight:

Dutch Twill Stainless Steel Filter Mesh

,

200 Mesh Stainless Steel Filter Mesh

,

300 Mesh Stainless Steel Filter Mesh

Dutch Twill Woven Mesh 200 Mesh 300 Mesh Stainless Steel Filter Mesh Woven Mesh​


A kind of ultra-thin woven stainless steel wire mesh with uniform opening and good firmness. The uses of carefully selected special stainless alloy materials and the most advanced weaving technology adopted ensure the very compact weaving structure is achieved and the thickness of the wire mesh is within the allowed tolerance range. Hence the precision of the wire mesh is further enhanced for high precision printing requirements.
Materials of S.S. wire mesh: SUS304, 304HC, 304L, 316, 316 L.

The following are common specifications:
Available in Stainless steel 302 304 316 316L
Mesh Gauge Wire dia (mm) Weave

8
24 0.558

















Plain / Twill













26 0.457
27 0.400
28 0.376

10
24 0.558
26 0.457
28 0.376

12
24 0.558
26 0.457
27 0.400
28 0.376
30 0.315

14
24 0.558
26 0.457
27 0.400

16
27 0.400
28 0.376
30 0.315

18
26 0.457
28 0.376

20
26 0.457
28 0.376
30 0.315
32 0.274

30
30 0.315
32 0.274
34 0.234

40
32 0.274
33 0.254
34 0.234
36 0.193
37 0.173
50 34 0.234
36 0.193
38 0.152
60 34 0.234
38 0.152

80
38 0.152
40 0.122
42 0.102

100
41 0.112
42 0.102
43 0.091
200 47 0.051

300
48 0.041
49 0.031

Plain Dutch woven wire mesh:
Mesh/Inch (warp×weft) Wire Dia. warp×weft (mm) Normal size (μm) Effective
area%
Weight kg/sq.m Cloth thickness
(mm)
7×44 0.71×0.63 319 14.2 5.55 1.97
8×45 0.8×0.6 310 15.5 5.7 2.00
8×60 0.63×0.45 296 20.3 4.16 1.53
8×85 0.45×0.315 275 27.3 2.73 1.08
10×90 0.45×0.28 249 29.2 2.57 1.01
10×76 0.5×0.355 248 21.8 3.24 1.21
12×86 0.45×0.315 211 20.9 2.93 1.08
12×64 0.56×0.40 211 16.0 3.89 1.36
12×76 0.45×0.355 192 15.9 3.26 1.16
14×100 0.40×0.28 182 20.3 2.62 0.96
14×110 0.4×0.25 177 22.2 2.28 0.855
14×76 0.45×0.355 173 14.3 3.33 1.16
16×100 0.40×0.28 160 17.7 2.7 0.96
17×120 0.355×0.224 155 22.4 2.19 0.803
16×120 0.28×0.224 145 19.2 1.97 0.728
20×140 0.315×0.20 133 21.5 1.97 0.715
20×170 0.25×0.16 130 28.9 1.56 0.57
20×110 0.355×0.25 126 15.3 2.47 0.855
22×120 0.315×0.224 115 15.5 2.20 0.763
25×140 0.28×0.20 100 15.2 1.96 0.68
24×110 0.355×0.25 97 11.3 2.60 0.855
28×150 0.28×0.18 92 15.9 1.87 0.64
30×150 0.25×0.18 82 13.5 1.79 0.61
30×140 0.315×0.20 77 11.4 2.21 0.715
35×190 0.224×0.14 74 16.8 1.47 0.504
35×170 0.224×0.16 69 12.8 1.62 0.544
40×200 0.18×0.135 63 15.4 1.24 0.43
50×250 0.14×0.11 50 15.2 1 0.36
60×500 0.14×0.055 51 34.1 0.70 0.252
50×270 0.14×0.10 50 15.2 0.98 0.34
65×390 0.125×0.071 42 19.1 0.78 0.267
60×300 0.14×0.09 41 14.1 0.96 0.32
80×700 0.125×0.04 40 38.1 0.60 0.205
60×270 0.14×0.10 39 11.2 1.03 0.34
77×560 0.14×0.05 38 27.5 0.74 0.24
70×390 0.112×0.071 37 16.3 0.74 0.254
65×750 0.10×0.036 36 37.1 0.43 0.172
70×340 0.125×0.08 35 13.2 0.86 0.285
80×430 0.125×0.063 32 16.6 0.77 0.251
118×750 0.063×0.036 23 21.5 0.38 0.135

Twill dutch woven wire mesh
Mesh/Inch (warp×weft) Wire Dia. warp×weft (mm) Normal size (μm) Effective
area%
Weight kg/sq.m Cloth thickness
(mm)
20×270 0.25×0.2 119 17.6 3.14 0.65
20×200 0.355×0.28 118 12.1 4.58 0.915
24×300 0.28×0.18 110 19.6 3.01 0.64
20×150 0.45×0.355 101 7.5 6.02 1.16
30×340 0.28×0.16 89 17.9 2.84 0.60
30×270 0.28×0.20 77 11.2 3.41 0.68
40×540 0.18×0.10 70 23.5 1.73 0.38
40×430 0.18×0.125 63 15.4 2.09 0.43
50×600 0.125×0.09 51 17.2 1.47 0.305
50×500 0.14×0.11 47 12 1.83 0.364
65×600 0.14×0.09 36 1.59 0.32
70×600 0.14×0.09 31 10.1 1.61
78×760 0.112×0.071 13.5 1.25 0.254
78×680 0.112×0.08 29 10.3 1.37 0.272
80×680 0.112×0.08 28 9.8 1.38
90×850 0.10×0.063 26 12.7 1.12 0.226
90×760 0.10×0.071 24 9.6 1.23 0.242
100×850 0.10×0.063 22 10 1.14 0.226
130×1500 0.063×0.036 21 18.6 0.64 0.135
100×760 0.10×0.071 20 7.4 1.25 0.242
130×1200 0.071×0.045 18 12 0.80 0.161
130×1100 0.071×0.05 17 9.4 0.87 0.171
150×1400 0.063×0.04 15 11.4 0.71 0.143
160×1500 0.063×0.036 12.4 0.67 0.135
165×1500 0.063×0.036 14 11.4
174×1700 0.063×0.032 13 12.9 0.62 0.127
165×1400 0.063×0.04 8.8 0.73 0.143
174×1400 0.063×0.04 11 7.4 0.74
203×1600 0.05×0.032 10 9.3 0.58 0.114
216×1800 0.045×0.03 9.4 0.53 0.105
203×1500 0.056×0.036 9 6.2 0.67 0.128
250×1900 0.04×0.028 8 7.8 0.51 0.096
250×1600 0.05×0.032 3.8 0.63 0.114
285×2100 0.036×0.025 7 7.2 0.44 0.086
300×2100 0.036×0.025 6 6.0
317×2100 0.036×0.025 5 4.7
325×2300 0.036×0.024 4 4.2
363×2300 0.032×0.022 4.5 0.40 0.076
400×2700 0.028×0.02 4.7 0.36 0.068
500×3500 0.025×0.015 3 4.9 0.30 0.055

Other specifications are customized according to customer needs.

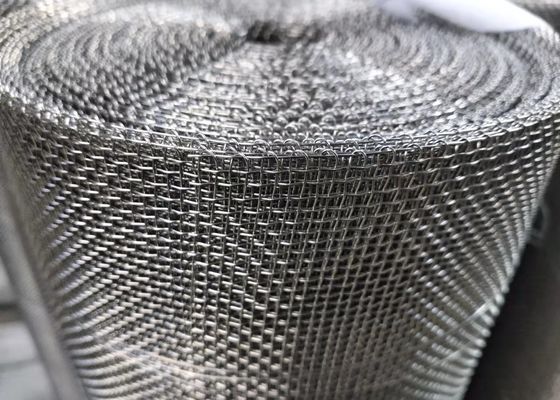

Dutch Twill Woven Mesh 200 Mesh 300 Mesh Stainless Steel Filter Mesh Woven Mesh 0

Weaving it can be divided into different parts as weaving method:plain weave,twill weave,dutch weave,





5..the application of SS Wire Mesh

Used for industries of mining, oil, chemicals, food, pharmaceuticals, machine making, scientific research, aviation, etc.



6. the advantages of SS Wire Mesh

Wear-resistant, high strength and long service life, unity-structure, not curly, easy to use, acid-resistant , alkali-resistant, corrosion-resistant, heat-resistant .

7.the packaging of SS wire mesh

Dutch Twill Woven Mesh 200 Mesh 300 Mesh Stainless Steel Filter Mesh Woven Mesh 1

8.FAQ

nside the roll with "paper tube" to reduce the pressure while loading;

Then wrapped with "plastic film" as well as the "woven bag" on the finished roll,

Final loaded in the strong wooden case or as customers' requirement.

Q: Are you trading company or manufacture?

A: We are manufacturer.

Q: Do you cut stainless steel wire mesh to size?

A: Yes,we will cut anything in our inventory to your specifications,including stainless steel wire mesh.In some cases,we have a large of stainless steel wire mesh in stock.

Q: Will stainless steel wire mesh rust over time?

A: Stainless steel wire mesh have stronger rust resistace than iron wire mesh,but no wire mesh is rust-proof forever,stainless steel wire mesh could be last for more longer time.

Q: Do you provide samples?is it free or extra?

A: Yes,we could offer the sample for tree charge but do not pay the cost of fteight.

Q: What is your term of payment?

A: Usually 30% as deposit, 70% against BL copy by T/T,western unoin acceptable for small account and L/C acceptable for large amount.

Q: What items is needed for a quotation?

A: Mesh,size,width,length,wire diameter and weight,or different product for no same of item.

Q: What size can be order requirement for stainless steel wire mesh?

A: No,you can order any size wire mesh that you need.
