Building Material Heavy Duty Hot Dipped Galvanized Stainless Steel Grating for Drainage Trench/Drain Cover

Large Image : Building Material Heavy Duty Hot Dipped Galvanized Stainless Steel Grating for Drainage Trench/Drain Cover

Product Details:

Place of Origin:	China
Brand Name:	Dimpled Hole Metal Sheets
Model Number:	Dimpled Hole Metal Sheets

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Chemical Composition:	Fe, C, Si, Mn, S, P	Alloy Or Not:	Non-Alloy
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects	Application:	Villa
Surface Treatment:	Hot-DIP Galvanizing, Painting Or Untreated	Grate Length:	1000mm

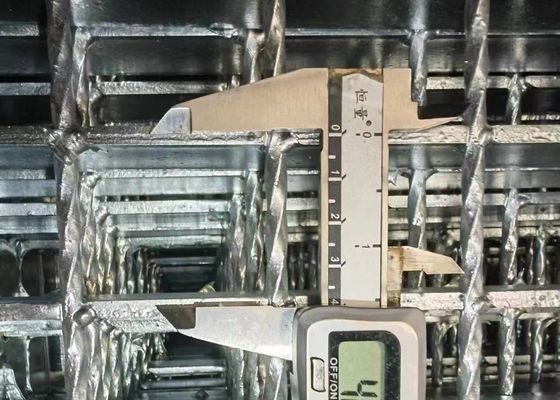

Grate Width:	800mm	Bearing Bar Width X Thickness:	25x3mm
Bearing Bar Shape:	Plain, Serrated I Bar Type Style Steel Grating	Cross Bar Shape:	Round,twisted,bar Shape
Mesh Size:	30x100mm
Highlight:	Drainage Trench Galvanized Steel Grating , Drain Cover Galvanized Steel Grating , Building Material Galvanized Steel Grating

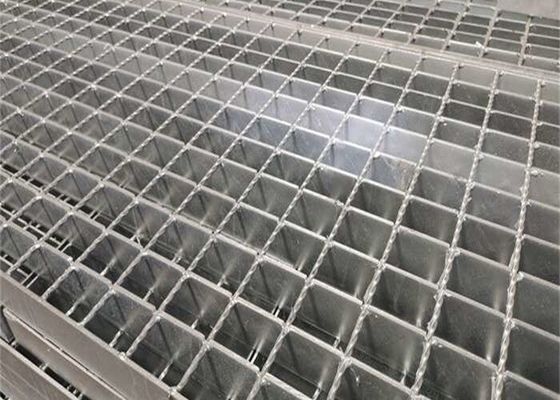

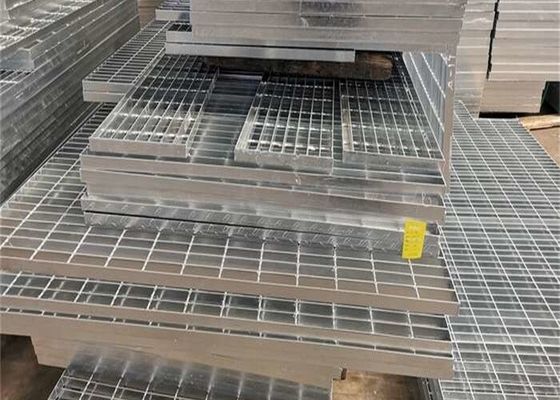

Building Material Heavy Duty Hot Dipped Galvanized Stainless Steel Grating for Drainage Trench/Drain Cover

The trench cover is a trench (well) cover made of steel grating. There are a variety of models to choose from to suit different span loads and requirements.

It is widely used in different places such as municipal roads, garden facilities, residential quarters, schools, stadiums, etc. According to different applications, the surface of trench (well) cover plates of different specifications and models can be hot-dip galvanized, cold-galvanized (electroplated) or untreated.

Building Material Heavy Duty Hot Dipped Galvanized Stainless Steel Grating for Drainage Trench/Drain Cover 0

Building Material Heavy Duty Hot Dipped Galvanized Stainless Steel Grating for Drainage Trench/Drain Cover 1

Materials	Q195, Q235 ,Q235B / 304 316 Stainless Steel
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar	US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Bearing Bar Pitch	US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch	38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
Steel Grade	ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Grating Standard	China: YB/T 4001.1-2007
	USA: ANSI/NAAMM(MBG531-88)
	UK: BS4592-1987
	Australia: AS1657-1985
	Japan: JJS

Building Material Heavy Duty Hot Dipped Galvanized Stainless Steel Grating for Drainage Trench/Drain Cover 2
