Hot DIP Galvanized I Type Steel Grating / Flat Bar Grating / Serrated Bar Grating

Large Image : Hot DIP Galvanized I Type Steel Grating / Flat Bar Grating / Serrated Bar Grating

Product Details:

Place of Origin:	China
Brand Name:	Dimpled Hole Metal Sheets
Model Number:	Dimpled Hole Metal Sheets

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Chemical Composition:	Fe, C, Si, Mn, S, P	Alloy Or Not:	Non-Alloy
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects	Application:	Villa
Surface Treatment:	Hot-DIP Galvanizing, Painting Or Untreated	Grate Length:	1000mm
Grate Width:	800mm	Bearing Bar Width X Thickness:	25x3mm
Bearing Bar Shape:	Plain, Serrated I Bar Type Style Steel Grating	Cross Bar Shape:	Round,twisted,bar Shape
Mesh Size:	30x100mm
Highlight:	Serrated Bar Galvanized Steel Grating , Hot DIP Galvanized Steel Grating , Flat Bar Galvanized Steel Grating

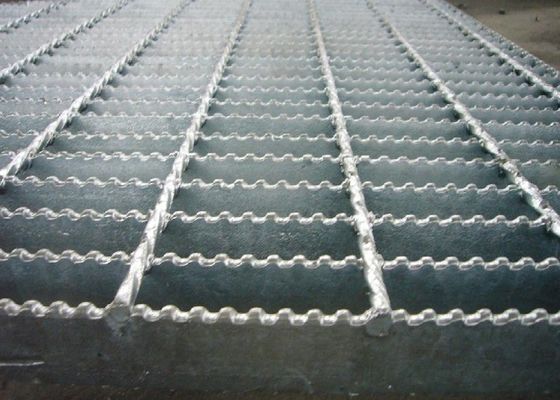

Hot DIP Galvanized I Type Steel Grating/Flat Bar Grating/Serrated Bar Grating

Steel grating is an essential structural component of many builds, particularly in commercial and industrial spaces. Steel Grating is specifically designed for high impact, high load applications, such as in walkways, stairs, platforms, and mezzanines. Steel grating is safer, will last longer, and will look better than any other underfoot options for industrial and commercial spaces.
Please get in touch if you are in need of steel grating.

.Steel grating details :

Hot DIP Galvanized I Type Steel Grating / Flat Bar Grating / Serrated Bar Grating 0

Production specification:

Detailed Information of Steel Grating
Material	▪ Mild Steel (Carbon Steel)
Material	▪ Stainless Steel
Bearing bar size	▪ 3mm thickness with 20mm to 40mm depth.
	▪ 5mm thickness with 20mm to 120mm depth.
	▪ 8mm thicness, 10mm thickness with 60mm to 140mm depth.
	▪ Customized size available.
Bearing bar style	Smooth bar, Serrated bar, Smooth I Bar, Serrated I bar
Bearing bar space (center to center)	▪ 12.5mm, 15mm, 30mm, 40mm, 50mm
Cross bar style	▪ Twist bar
	▪ Round bar
	▪ Rib bar.
Cross bar space (center to center)	▪ 50mm, 76mm, 100mm
Surface treatment	▪ Untreated
	▪ Hot Dipped Galvanized
	▪ Painted.
Package	▪ Steel Pallet / Plywood Pallet, or according to customers' requirement.

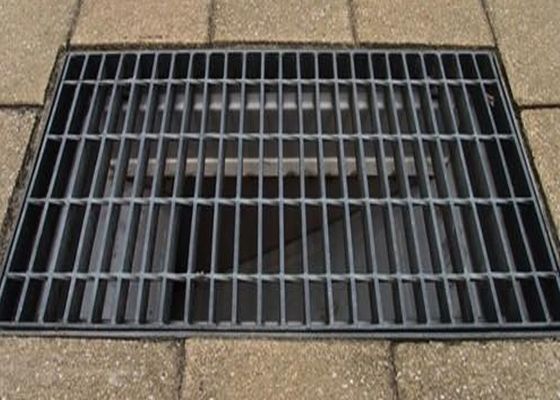

Application	▪ Walkway, Industrial Platform, Sump, Trench, Drainage and so on.
Material standard	▪ GB700-88
	▪ AS3679
	▪ ASTM(A36)
	▪ S4360(43A)
Grating standard	▪ YB/T4001.1-2007
	▪ AS1657-2013
	▪ BS4592-2006
	▪ ANSI / NAAMM(MBG531-88)
