SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh

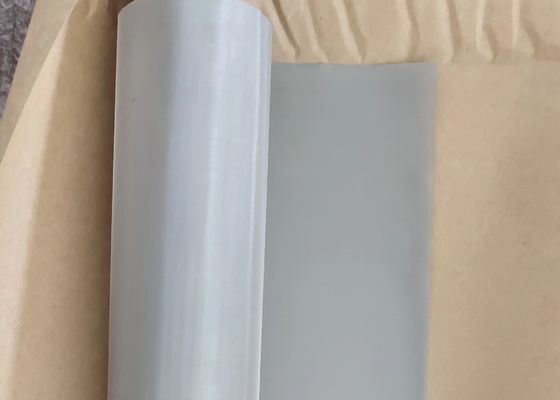

Large Image : SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh

Product Details:

Place of Origin:	HeBei,China
Brand Name:	QiJie
Certification:	Certification ISO
Model Number:	SGS

Payment & Shipping Terms:

Minimum Order Quantity:	10 rolls
Price:	discuss
Packaging Details:	430 70micron stainless steel wire mesh 1. paper tube/Waterproof paper inside , then wooden box outside 2. Customized package is also avaliable
Delivery Time:	15-30 days
Payment Terms:	30%TT
Supply Ability:	50000 rolls

Contact Now

Detailed Product Description

Material::	Stainless Steel Wire, Stainless Steel Wire	Type::	Weave Wire Mesh, Wire Cloth,Weave Wire Mesh
Technique::	Plain Woven	Size::	1.5*30m
Application::	Screen, Filters Window	Weave Style::	Plain Weave
Mesh::	1-100mesh	Wire Diameter::	0.15-4.0mm
Highlight:	Twill Stainless Steel Woven Wire Mesh , 304 woven stainless steel mesh , 316 woven stainless steel mesh

SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh

we manufactures custom high-performance filters and filtration products for all industries such as filter wire mesh, wire cloth filters, and material-specific filters like stainless steel mesh filters. Using our high-quality wire cloth, welded wire mesh, annealed and diffusion bonded wire mesh; we offer stamping, fabricating and finishing services to manufacture production-ready filters for your applications.

Plain Weave Stainless Steel Wire Mesh Cloth for Filter - Most Common Type

Applications:

Used for filter or sieve in mining, chemical fiber, pharmaceutical industries, such as mud mesh, pickling mesh;
Made into window screen, fruit basket, infill panel, etc

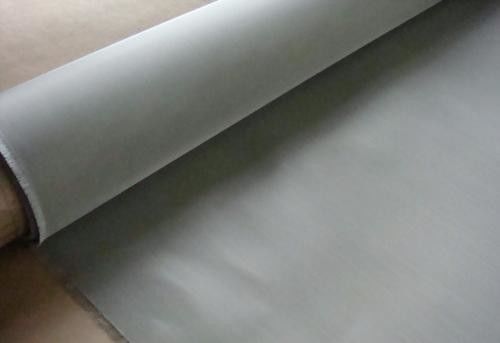

SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh 1

Specifications of plain weave stainless steel wire mesh:

Materials: stainless steel 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, super duplex stainless steel, duplex stainless steel or customized.
Mesh patterns: square, rectangle.
Surface treatment: pickling and passivation, polishing.
Packing:
- Rolls wrapped with craft paper and then put into carton or on pallet;
- Sheets in wooden boxes or on pallets.

Twill Weave Stainless Steel Wire Mesh for Screen, Mud or Pickling Mesh

Applications:

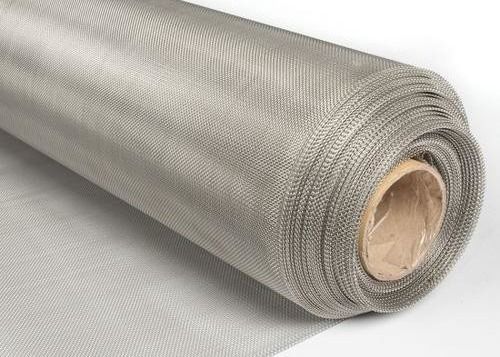

SS304 SS316 1-500mesh Stainless Steel Plain/Twill/Dutch Woven Crimped Square Metal Mesh Sieving Screen Filter Wire Mesh 3

Specifications of twill weave stainless steel wire mesh:

Sieve or filter liquid, gas, solid;
Used in oil, chemical fiber, plating industries or medical equipment, food processing;
Made into infill panel, vegetable basket, decoration.

Material	304,304L,310,316,316L,super duplex stainless steel, duplex stainless steel or customized.	Items	Mesh	Wire Diameter (mm)	Mesh Aperture (mm)	Material (AISI)
Material		SSTW01	250 × 250	0.04	0.063	SUS316
Width	0.5-1.5 m	SSTW02	300 × 300	0.04	0.044	SUS316
Width	0.5-1.5 m	SSTW03	325 × 325	0.035	0.043	SUS316L
Roll length	30 m a roll or customized.	SSTW04	350 × 350	0.03	0.042
Roll length	30 m a roll or customized.	SSTW05	400 × 400	0.03	0.033
Surface treatment	pickling and passivation, polishing.	SSTW06	450 × 450	0.028	0.028
Surface treatment	pickling and passivation, polishing.	SSTW07	500 × 500	0.025	0.026

Stainless Steel Dutch Wire Mesh Used in Fuel Filter, Aerospace, Rubber Industry

Specifications of Stainless Steel Plain Dutch Wire Mesh						Specifications of Stainless Steel Twill Dutch Wire Mesh
Mesh/Inch (warp×weft)	Wire Dia. warp×weft(mm)	Normal size (μm)	Effective area%	Weight kg/sq.m	Thickness (mm)	Weft × Warp (inch)	Aperture Size (μm)	Available Area (%)	Thickness (mm)
7×44	0.71×0.63	319	14.2	5.55	1.97	20 × 270	119	17.6	0.65
8×45	0.8×0.6	310	15.5	5.7	2	20 × 200	118	12.1	0.915
8×60	0.63×0.45	296	20.3	4.16	1.53	24 × 300	110	19.6	0.64
8×85	0.45×0.315	275	27.3	2.73	1.08	20 × 150	101	7.5	1.16
10×90	0.45×0.28	249	29.2	2.57	1.01	30 × 340	89	17.9	0.6
10×76	0.5×0.355	248	21.8	3.24	1.21	30 × 270	77	11.2	0.68
12×86	0.45×0.315	211	20.9	2.93	1.08	40 × 540	70	23.5	0.38
12×64	0.56×0.40	211	16	3.89	1.36	40 × 430	63	15.4	0.43
12×76	0.45×0.355	192	15.9	3.26	1.16	50 × 600	51	17.2	0.305
14×100	0.40×0.28	182	20.3	2.62	0.96	50 × 500	47	12	0.364
14×110	0.4×0.25	177	22.2	2.28	0.855	65 × 600	36	12	0.32
14×76	0.45×0.355	173	14.3	3.33	1.16	70 × 600	31	10.1	0.32
16×100	0.40×0.28	160	17.7	2.7	0.96	78 × 760	31	13.5	0.254
17×120	0.355×0.224	155	22.4	2.19	0.803	78 × 680	29	10.3	0.272
16×120	0.28×0.224	145	19.2	1.97	0.728	80 × 680	28	9.8	0.272
20×140	0.315×0.20	133	21.5	1.97	0.715	90 × 850	26	12.7	0.226
20×170	0.25×0.16	130	28.9	1.56	0.57	90 × 760	24	9.6	0.242
20×110	0.355×0.25	126	15.3	2.47	0.855	100 × 850	22	10	0.226
22×120	0.315×0.224	115	15.5	2.2	0.763	130 × 1500	21	18.6	0.135
25×140	0.28×0.20	100	15.2	1.96	0.68	100 × 760	20	7.4	0.242
24×110	0.355×0.25	97	11.3	2.6	0.855	130 × 1200	18	12	0.161
28×150	0.28×0.18	92	15.9	1.87	0.64	130 × 1100	17	9.4	0.171
30×150	0.25×0.18	82	13.5	1.79	0.61	150 × 1400	15	11.4	0.143
30×140	0.315×0.20	77	11.4	2.21	0.715	160 × 1500	15	12.4	0.135
35×190	0.224×0.14	74	16.8	1.47	0.504	165 × 1500	14	11.4	0.135
35×170	0.224×0.16	69	12.8	1.62	0.544	174 × 1700	13	12.9	0.127
40×200	0.18×0.135	63	15.4	1.24	0.43	165 × 1400	13	8.8	0.143
50×250	0.14×0.11	50	15.2	1	0.36	174 × 1400	11	7.4	0.143
60×500	0.14×0.055	51	34.1	0.7	0.252	203 × 1600	10	9.3	0.114
50×270	0.14×0.10	50	15.2	0.98	0.34
65×390	0.125×0.071	42	19.1	0.78	0.267
60×300	0.14×0.09	41	14.1	0.96	0.32
80×700	0.125×0.04	40	38.1	0.6	0.205
60×270	0.14×0.10	39	11.2	1.03	0.34
77×560	0.14×0.05	38	27.5	0.74	0.24
70×390	0.112×0.071	37	16.3	0.74	0.254
65×750	0.10×0.036	36	37.1	0.43	0.172
70×340	0.125×0.08	35	13.2	0.86	0.285
80×430	0.125×0.063	32	16.6	0.77	0.251
118×750	0.063×0.036	23	21.5	0.38	0.135
