Stainless Steel 316L Chain Link Fence Fabric Boundary Wall Galvanized Steel

Large Image : Stainless Steel 316L Chain Link Fence Fabric Boundary Wall Galvanized Steel

Product Details:

Place of Origin:	CHINA
Brand Name:	XMESH
Certification:	ISO9001:2008, SGS, CE
Model Number:	QJ20200908152

Payment & Shipping Terms:

Minimum Order Quantity:	50 Rolls
Price:	USD19.27-USD60.57
Packaging Details:	Plastic film and weave bags or wood pallets as required.
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000 Rolls/PER DAY

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire	Opening:	2"x2"
Wire Gauge:	9 Gauge	Surface Treatment:	Galvanized Zinc Coated
Height:	1.2m,1.5m,1.8m,2.0m,2.1m,2.4m,2.5m,3m,3.6m,4m	Length:	10m,15m,18m,20m,25m,30m,or Customized
Fence Element:	Mesh, Framework, Fitting And Gate	Fence Framework:	Top Rail, Horizontal Post, Corner Post Etc.
Color:	Silver
Highlight:	Galvanized Steel Chain Link Fence Fabric , Boundary Wall Chain Link Fence Fabric

Stainless Steel Chain Link Fence for Commercial & Industrial Uses

Stainless steel chain link fence is durable and firm.

Stainless steel chain link fence is regard as the most durable type among all metal chain link fences. It can be divided into 304, 316, 316 L materials according to the AISI standard.

Stainless steel chain link fence is relatively more expensive than the galvanized, vinyl coated and aluminum coated chain link fence, but it can supply the longest service life even in high temperature, and harshest environments.

Stainless steel chain link fence is recommended for high grade enclosures or barriers such as in airports, highways or other applications where high-level protection is needed.

Selvage

Most of stainless steel chain link fences with a 2" or smaller mesh and 60" or less in height adopt knuckled edge at the both selvedge.

For chain link fencing higher than 72", the selvedge is knuckled at one edge and twisted (barbed) at the other edge.

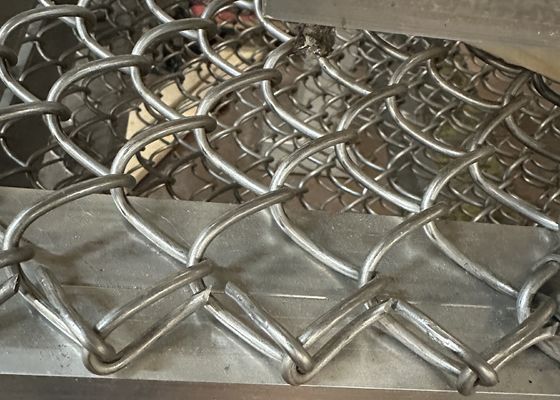

Stainless Steel 316L Chain Link Fence Fabric Boundary Wall Galvanized Steel 0

Mesh Apertures & Diameters

Recommended use	Mesh sizes available (inch)	Nominal coated wire size (gauge)	Height of fence fabric (inch)
Industrial/commercial	2"	6	36" – 144"
	2"	9	36" – 144"
	2"	10	36" – 144"
	2"	11	36" – 144"
Industrial/security	1"	6	36" – 144"
Industrial/security	1"	9	36" – 144"
Security	1"	9	36" – 144"
	1"	11	36" – 144"
	3/4"	9	36" – 144"
	3/4"	11	36" – 144"
	5/8"	9	36" – 144"
	5/8"	11	36" – 144"
	1/2"	9	36" – 144"
	1/2"	11	36" – 144"
	3/8"	10	36" – 144"
	3/8"	11	36" – 144"
Tennis Court	1-3/4"	9	36" – 144"
Tennis Court	1-3/4"	11	36" – 144"

Features

The best alkali and acid resistance performance.
High temperature and salt water resistance
It will not bend, sag or break, and can keep its shape over long periods of time.
Fully recycled when it is replaced.
Flexible wire gauges and mesh apertures options.

Applications

Airports.
Highways.
Railroads.
Solar plant.
Maritime operations.
Leisure sports field.

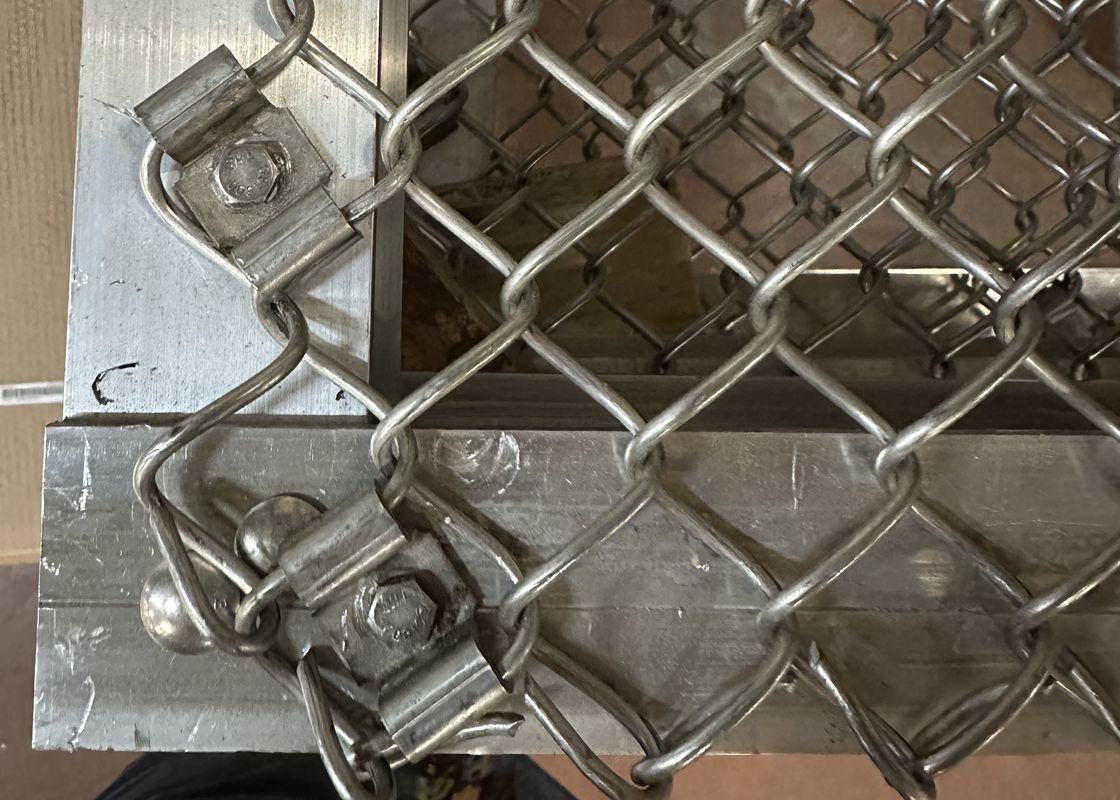

Stainless Steel 316L Chain Link Fence Fabric Boundary Wall Galvanized Steel 1

Stainless Steel 316L Chain Link Fence Fabric Boundary Wall Galvanized Steel 2
