Quarry Rock Vibrating Screen Shaker Screen Sand Filter Mesh

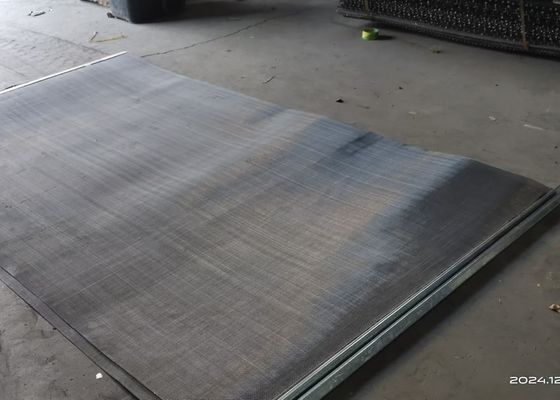

Large Image : Quarry Rock Vibrating Screen Shaker Screen Sand Filter Mesh

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	QJ-355

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	With steel pallets
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	3000 pcs per month

Contact Now

Detailed Product Description

Material:	Manganese Steel	Wire Diameter:	6.0 Mm
Hole Shape:	Rectangle	Weaving Type:	Plain Weave
Technic:	Woven Mesh	Tensile Strength:	800 - 1000 MPa
Highlight:	Sand Filter Mesh Shaker Screen , Quarry Rock Shaker Screen , Vibrating Screen Shaker Screen

Quarry Rock Vibrating Screen Shaker Screen Sand Filter Mesh

Heavy duty Crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio. The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped, flat mesh, etc.).

Crusher screen wire mesh is also called vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh, quarry screen mesh etc. it is wearable resistance, high frequency and longer life. Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.

Below are the popular material chemical composition:

No.	Steel Grade	Chemical Composition
No.	Steel Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

VIBRATING SCREEN MESH DETAILS:
Quarry Rock Vibrating Screen Shaker Screen Sand Filter Mesh 0

Material	low carbon steel wire, mild steel wire, high carbon steel wire, 45# , 65Mn wire
Wire diameter	0.3-12mm
Hole size	0.5mm-70mm
Hole shape	square hole, rectangle hole. if hole is rectangle, please advice the hole length and width.
Hook	Flat (without hook), with hook and steel plate, with hook not with steel plate

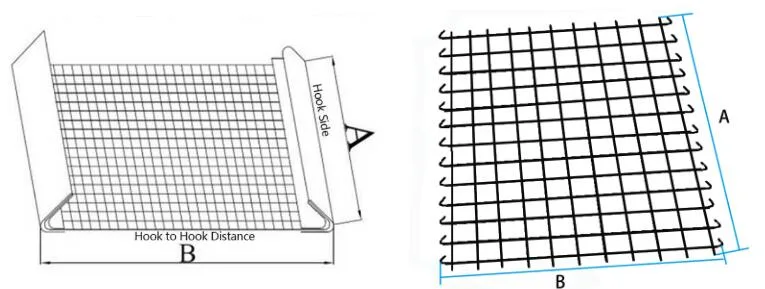

Dimension	A and B. if with hook, please show it on above drawing.
Remark	We can produce any size crusher stone screens according to customer's requirements like different mesh opening, width or length. If you have drawings, it is best.

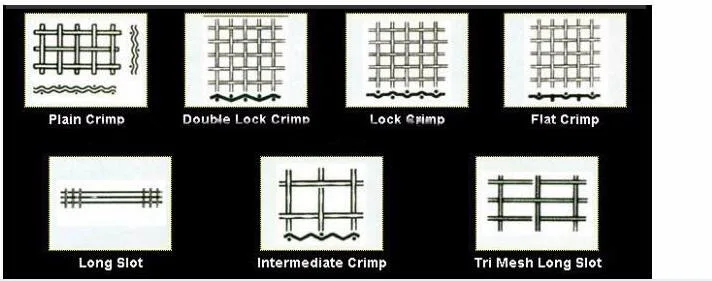

CRIMPED WIRE MESH WEAVING TYPE:
Plain weave. Double crimped. Intermediate crimped. Flat top crimped.

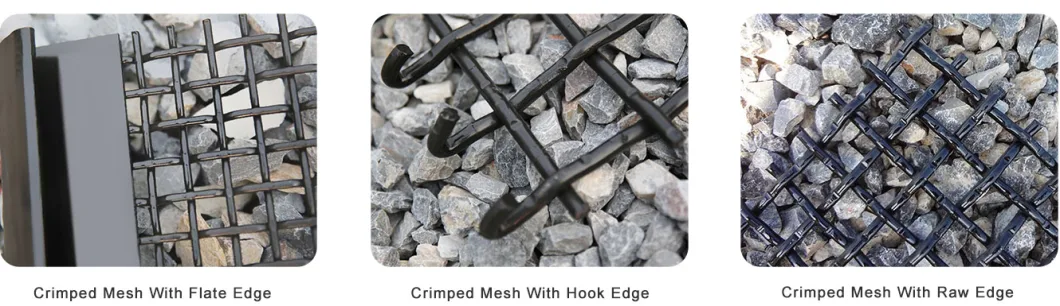

DIFFERENT EDGE DETAIL SHOW:

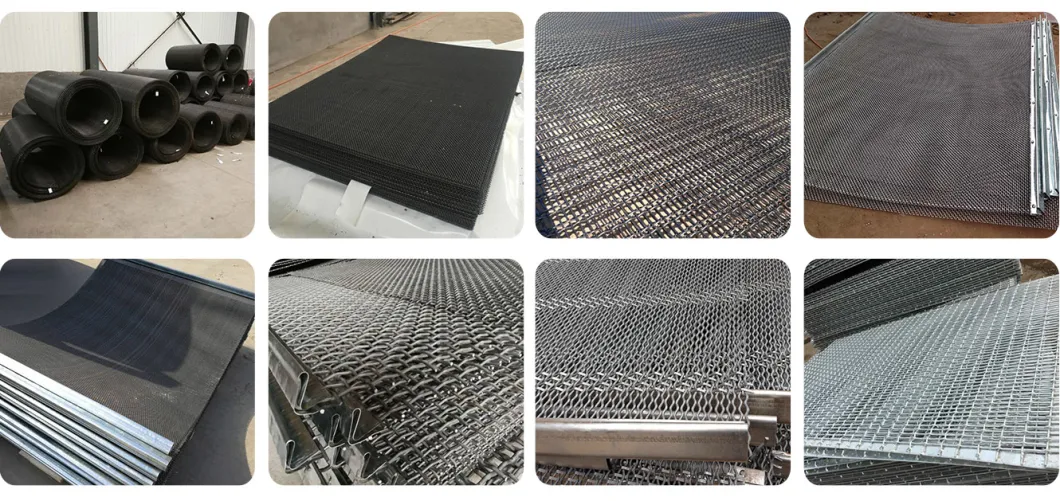

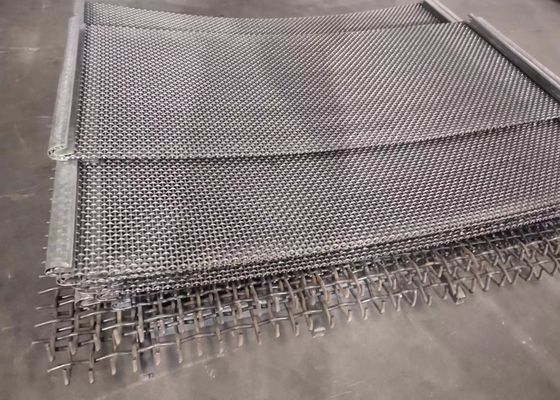

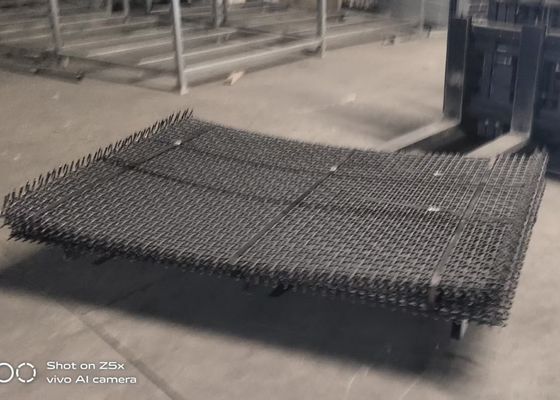

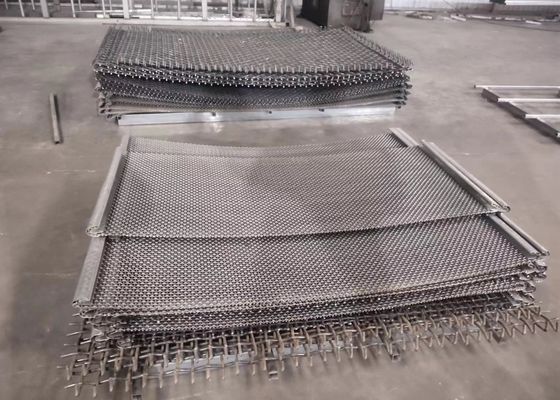

Quarry Rock Vibrating Screen Shaker Screen Sand Filter Mesh 2 PRODUCTS DISPLAY:
RUST PROTECTION TREATMENT:
Rust Protection Treatment Of Heavy Duty Cimped Wire Mesh Is necessary. It can be protect the mesh without rust. especially during transportation by sea. When arrive warehouse, it can extend the storange time.
