10 20 30 40 50 60 Mesh Galvanized Woven Wire Mesh Roll for Filters

Large Image : 10 20 30 40 50 60 Mesh Galvanized Woven Wire Mesh Roll for Filters

Product Details:

Place of Origin:	HeBei,China
Brand Name:	QiJie
Certification:	Certification ISO
Model Number:	SGS

Payment & Shipping Terms:

Minimum Order Quantity:	10 rolls
Price:	discuss
Packaging Details:	430 70micron stainless steel wire mesh 1. paper tube/Waterproof paper inside , then wooden box outside 2. Customized package is also avaliable
Delivery Time:	15-30 days
Payment Terms:	30%TT
Supply Ability:	50000 rolls

Contact Now

Detailed Product Description

Material::	Stainless Steel Wire, Stainless Steel Wire	Type::	Weave Wire Mesh, Wire Cloth,Weave Wire Mesh
Technique::	Plain Woven	Size::	1.5*30m
Application::	Screen, Filters Window	Weave Style::	Plain Weave
Mesh::	1-100mesh	Wire Diameter::	0.15-4.0mm
Highlight:	60 Mesh Woven Wire Mesh Roll , Filters Woven Wire Mesh Roll , Galvanized Woven Wire Mesh Roll

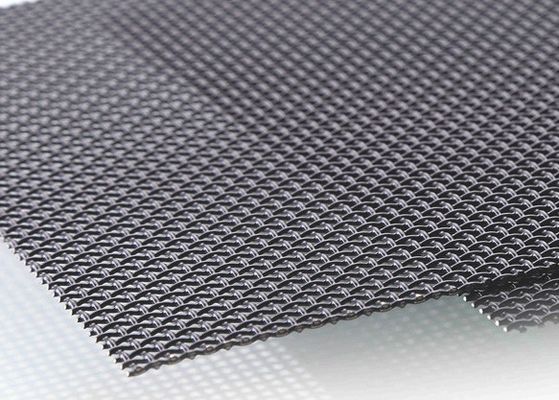

10 20 30 40 50 60 Mesh Galvanized Woven Wire Mesh Roll for Filters

Galvanized woven wire mesh is one of the most inexpensive options in window screen and filtration applications. The mesh is coated with
zinc to protect it from rust and corrosion. The galvanized wire mesh has corrosion resistance and has a longer service life than plain steel
wire mesh. Typical applications including: window screens, safety guards, sieve grains, oil strainers, vibrating screen, liquid and gas filtration.

10 20 30 40 50 60 Mesh Galvanized Woven Wire Mesh Roll for Filters 0

Material of galvanized wire mesh:
Electro and Hot-dipped Galvanized wire
Standard: ASTM E 2016-06
Weave Type: Plain weave, Twill Weave
Mesh count: 3-60 mesh
Diameter: 0.12-1.6mm
Roll Width: Max 240″
Roll Length: Max 2000′
Packaging: inner kraft paper, outside plastic cloth, put into wooden pallet or case
Delivery Time: 3 days for stock material

10 20 30 40 50 60 Mesh Galvanized Woven Wire Mesh Roll for Filters 1

Galvanized Woven Wire Mesh Specification
Mesh count	Wire Dia. (mm)	Opening (mm)
3	1.6	6.87
4	1.2	5.15
5	0.95	4.13
6	0.8	3.43
8	0.7	2.43
10	0.6	1.94
12	0.55	1.56
14	0.14	1.4
16	0.38	1.24
18	0.3	1.11
20	0.27	1
22	0.25	0.9
24	0.23	0.83
26	0.2	0.78
28	0.18	0.73
30	0.15	0.7
35	0.14	0.59
40	0.14	0.5
50	0.12	0.39
60	0.12	0.3

10 20 30 40 50 60 Mesh Galvanized Woven Wire Mesh Roll for Filters 2

Production of Galvanized wire mesh

Package of Glavanized wire mesh
we provides serious packing system, prevents any damages to the mesh during transportation.

10 20 30 40 50 60 Mesh Galvanized Woven Wire Mesh Roll for Filters 4
