High Tensile 65mn Cement Vibrating Metal Woven Vibrating Screen Mesh

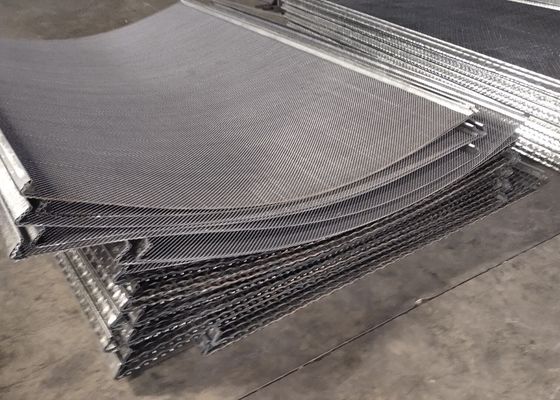

Large Image : High Tensile 65mn Cement Vibrating Metal Woven Vibrating Screen Mesh

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	4mm

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	pallets
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	100pieces per week

Contact Now

Detailed Product Description

Material:	Black Wire, Spring Steel Wire, 65mn Manganese Steel Wire And Stainless Steel Wire	Aperture:	0.8 - 8 Mm
Size:	1.5mx1.95m	Install:	Hooked
Surface Treatment::	Galvanized Or Painted	Mesh Size:	1mm - 100mm
Hole Type:	Square, Rectangular And Long Slot.
Highlight:	High Tensile woven vibrating screen mesh , 65mn woven vibrating screen mesh , Cement woven vibrating screen mesh

High Tensile 65mn Cement Vibrating Metal Woven Vibrating Screen Mesh

Mining screen, also known as vibrating screen mesh, quarry screen, and crusher screen, is one of the most
important and versatile parts of screening machines in the mining industry, which separates a mix of particles into two or more groups
depending on size and is widely used in a variety of sizing, grading, scalping, dewatering, wet screening, and washing applications.

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS

Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn
45	0.42-0.50	0.52-0.60	0.50-0.80
50	0.47-0.55
55	0.52-0.60
60	0.57-0.65
65	0.62-0.70
70	0.67-0.75
65Mn	0.62-0.70		0.90-1.20
72A	0.15-0.75	0.15-0.75	0.30-0.60

Technical Parameters of Stainless Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn	Cr
304	≤0.08	8.0-10.5	≤2.0	18.0-20.0
321	≤0.08	9.0-12.0	≤2.0	17.0-19.0
316	≤0.08	10.0-14.0	≤2.0	16.0-18.0
2205	≤0.03	4.5-6.5	≤2.0	21.0-23.0
2207	≤0.03	6-8	≤1.2	24.0-26.0

High Tensile 65mn Cement Vibrating Metal Woven Vibrating Screen Mesh 0

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below.

High Tensile 65mn Cement Vibrating Metal Woven Vibrating Screen Mesh 1
