High Quality Welded Galvanized Wire Mesh 6 Gauge Panel Security Bending Garden Mesh Welded Curved 3D Fence

Large Image : High Quality Welded Galvanized Wire Mesh 6 Gauge Panel Security Bending Garden Mesh Welded Curved 3D Fence

Product Details:

Place of Origin:	CHINA
Brand Name:	XMESH
Certification:	ISO9001:2008, SGS, CE
Model Number:	46WMP

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	USD6.90-USD45.71
Packaging Details:	Plastic film and wooden pallet.
Delivery Time:	10-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000 pcs/per day

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire, Galvanized Wire	Mesh Opening:	1"x1",1-1/2"x1-1/2",2"x2",2"x1"etc.
Wire Diameter:	0.4mm - 6.0mm	Panel Size:	1.2x2.4M,1.2x3.0M,1.8x3.6M Ect.
Surface Treatment:	PVC Coating	Post Height:	1.1M-3.0M
Highlight:	Garden Mesh Welded Galvanized Wire Mesh , 3D Fence Welded Galvanized Wire Mesh , High Quality Welded Galvanized Wire Mesh

High Quality Welded Galvanized Wire Mesh 6 Gauge Panel Security Bending Garden Mesh Welded Curved 3D Fence

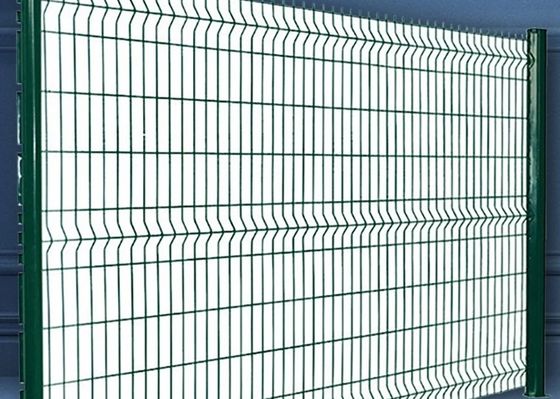

Triangle bend fence is also known as curvy welded fencing, triangle mesh fence,3D fence, etc. Triangle bend fence is pretty light and durable, its composition is simply wire welded mesh panel, post and connection hardwares. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.

3D Curved Wire Mesh Fence Panel is a kind of welded steel wire mesh. It is made of high quality low carbon
steel wire, galvanized steel wire and metal column connected. 3D guardrail has the characteristics of high
strength, good rigidity, beautiful appearance, wide field of vision, convenient installation, and good anti-theft
effect, which ensures the safety of the fence.

Specification of Triangle Bend Fence
Mesh Opening	Wire Thickness	Panel Width	Panel Height	Number of Folds	Post Type
50x100mm 50x150mm 50x200mm 55x200mm 75x150mm etc.	3.0mm or 3.5mm or 4.0mm or 4.50mm or 5.00mm	2.0m or 2.50m or 2.9m	630mm	2	Round Post 48x1.5/2.0mm 60x1.5/2.0mm	Square Post(SHS) 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm	Rectangular Post(RHS) 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm
			830mm	2
			1030mm	2
			1230mm	2
			1430mm	2
			1530mm	3
			1630mm	3
			1730mm	3
			1830mm	3
			1930mm	3
			2030mm	4
			2230mm	4
			2430mm	4

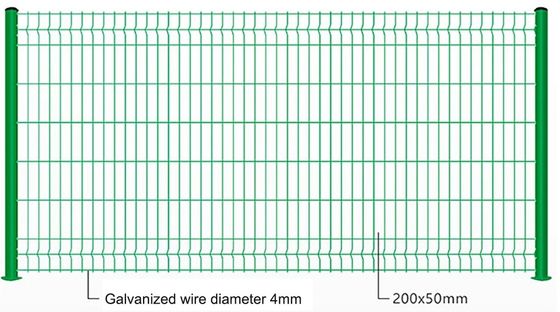

Mesh Opening	50x100mm/50x150mm/50x200mm/55x200mm/75x150mm
Wire diameter	3.0/3.5/4/4.5/5.0mm
Panel height	0.6m-3.0m ( Suggest size : 2m/2.4m/2.8m )
Panel width	2.0m-3.0m ( Suggest size : 2m/2.5m/2.9m )
Post type	Round Post : 48x1.5/2.0mm 60x1.5/2.0mm Square Post(SHS) : 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm Rectangular Post(RHS) : 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm
Surface treatment	hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Color	RAL 6005 green, RAL 7016 gray, All RAL color can be customized
Note	The fence can be customized according to your required if above specification is not satisfied with you

High Quality Welded Galvanized Wire Mesh 6 Gauge Panel Security Bending Garden Mesh Welded Curved 3D Fence 0

Application:

Triangle bend fence is a type of welded wire mesh which has V-shaped strengthen bending curves. Triangle bend fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated.Triangle bend fence looks modern and attractive.
Mainly used for security protection in construction site, residential building, sports field, arehouse, highway or airport service area, railway station, etc.

High Quality Welded Galvanized Wire Mesh 6 Gauge Panel Security Bending Garden Mesh Welded Curved 3D Fence 1
