Galvanized And PVC Coated 3D Curved Welded Wire Mesh Fence For Garden Fence

Large Image : Galvanized And PVC Coated 3D Curved Welded Wire Mesh Fence For Garden Fence

Product Details:

Place of Origin:	CHINA
Brand Name:	XMESH
Certification:	ISO9001:2008, SGS, CE
Model Number:	46WMP

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	USD6.90-USD45.71
Packaging Details:	Plastic film and wooden pallet.
Delivery Time:	10-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000 pcs/per day

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire, Galvanized Wire	Mesh Opening:	1"x1",1-1/2"x1-1/2",2"x2",2"x1"etc.
Wire Diameter:	0.4mm - 6.0mm	Panel Size:	1.2x2.4M,1.2x3.0M,1.8x3.6M Ect.
Surface Treatment:	PVC Coating	Post Height:	1.1M-3.0M
Highlight:	3D Curved Welded Wire Mesh Fence , Galvanized 3d curved wire mesh fence , PVC 3d curved wire mesh fence

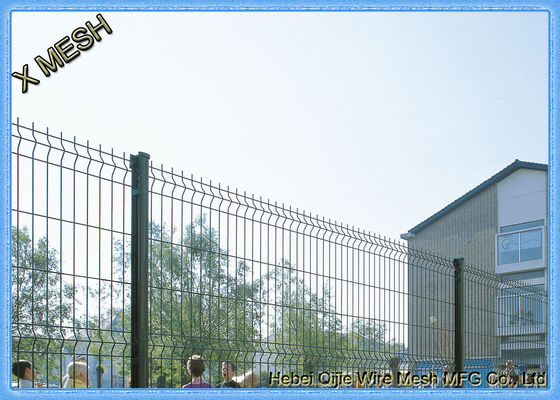

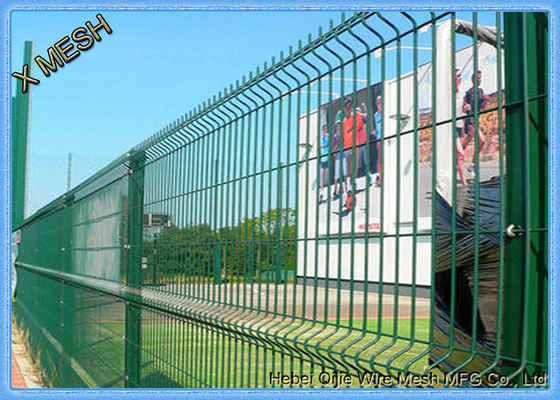

Galvanized and PVC Coated 3D Curved Welded Wire Mesh Fence for Garden Fence

3D Curved Wire Mesh Fence Panel is a kind of welded steel wire mesh. It is made of high quality low carbon steel wire, galvanized steel wire and metal column connected. 3D guardrail has the characteristics of high strength, good rigidity, beautiful appearance, wide field of vision, convenient installation, and good anti-theft effect, which ensures the safety of the fence.

Welded Mesh Fencing is an economical and durable fencing type that suits a wide variety of applications.

The fence panels are typically constructed with rolled top and bottom profiles, which adds strength and durability to the fence panels, without adding additional weight. The design means the panels remain light weight and cost effective, which make weld mesh panels ideal for multiple applications.

Most commonly welded mesh panels are used for boundary fencing and secured compounds due to the added strength of the welded mesh design and heavier wire diameters, making it difficult to cut or damage.

Specification:

Mesh Opening	50x100mm/50x150mm/50x200mm/55x200mm/75x150mm
Wire diameter	3.0/3.5/4/4.5/5.0mm
Panel height	0.6m-3.0m ( Suggest size : 2m/2.4m/2.8m )
Panel width	2.0m-3.0m ( Suggest size : 2m/2.5m/2.9m )
Post type	Round Post : 48x1.5/2.0mm 60x1.5/2.0mm Square Post(SHS) : 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm Rectangular Post(RHS) : 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm
Surface treatment	hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Color	RAL 6005 green, RAL 7016 gray, All RAL color can be customized
Note	The fence can be customized according to your required if above specification is not satisfied with you

TYPE	HEIGHT	LENGTH	WIRE DIAMETER	MESH	FOLDS NO.
ZH-01	0.6/0.63m	2.0m 2.5m	Gal + Powder Coated 3.85mm/4.0mm 4.85mm/5.0mm	50200 55200 50150 55100	2
ZH-02	1.0/1.03m				2
ZH-03	1.2/1.23m				2
ZH-04	1.5/1.53m		Gal + PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm		3
ZH-05	1.7/1.73m				3
ZH-06	1.8/1.83m				4
ZH-07	1.9/1.93m				3
ZH-08	2.0/2.03m				4
ZH-09	2.4/2.43m				4
ZH-10	2.4/2.43m	3m	4.0mm/5.0mm		4

Galvanized And PVC Coated 3D Curved Welded Wire Mesh Fence For Garden Fence 0

Galvanized And PVC Coated 3D Curved Welded Wire Mesh Fence For Garden Fence 1

Application:

1. Home garden building wire mesh fencing
2. Residential wire mesh fencing
3. Filed wire mesh fencing
4. Animal wire mesh fencing
5. Supermarket parking wire mesh fencing

Galvanized And PVC Coated 3D Curved Welded Wire Mesh Fence For Garden Fence 2

Packaging & Shipping

1.Fence panel: plastic film / wooden case + metal/wooden pallet.

2.Fence post: plastic bag + metal/wooden pallet (with rainhat installed).

3.Fence accessories: plastic bag + carton box (clips & screws).

Galvanized And PVC Coated 3D Curved Welded Wire Mesh Fence For Garden Fence 3
