3D Curved Fence 3.0mm/4.0mm Diameter Welded Wire Mesh Fence

3D Curved Fence 3.0mm/4.0mm Diameter Welded Wire Mesh Fence

Large Image :  3D Curved Fence 3.0mm/4.0mm Diameter Welded Wire Mesh Fence

Product Details:
Place of Origin: CHINA
Brand Name: XMESH
Certification: ISO9001:2008, SGS, CE
Model Number: 46WMP
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: USD6.90-USD45.71
Packaging Details: Plastic film and wooden pallet.
Delivery Time: 10-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000 pcs/per day
Detailed Product Description
Material: Carbon Steel Wire, Galvanized Wire Mesh Opening: 1"x1",1-1/2"x1-1/2",2"x2",2"x1"etc.
Wire Diameter: 0.4mm - 6.0mm Panel Size: 1.2x2.4M,1.2x3.0M,1.8x3.6M Ect.
Surface Treatment: PVC Coating Post Height: 1.1M-3.0M
Highlight:

3D Welded Wire Mesh Curved Fence

,

3mm 3D Curved Fence

,

4.0mm Curved Fence

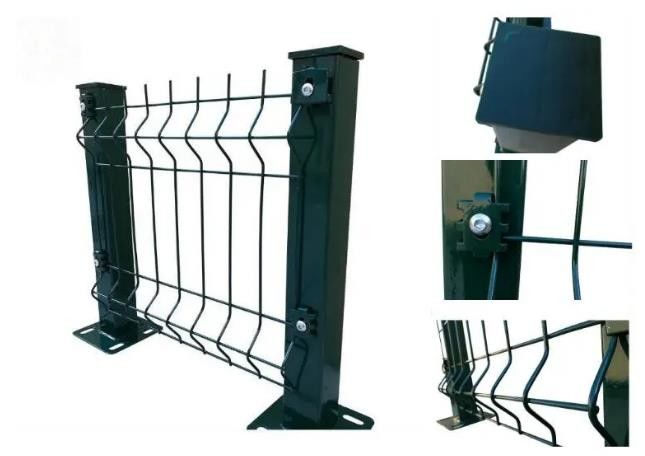

3D Curved Fence 3.0mm/4.0mm Diameter Welded Wire Mesh Fence





3D security fence enhanced its appearance with pressed horizontal 'V-shaped beams.

3D security fence is similar to 358 mesh fence, and they are both made from 4.0 mm wire in a 12.7 × 76.2 mm mesh pattern. But 3D security fence enhanced its appearance with pressed horizontal 'V-shaped beams. It is a unique barrier solution that combines a high level of safety and aesthetic appearance. Usually, 3D security fencing is recommended for schools, recreational areas, hospitals, railways, ports, airports, warehouses, and industrial facilities or commercial.



Pvc coated welded wire mesh fence is a kind of 3D curved mesh fence, which is popular in many countries, the mesh fence panel is made of high-quality steel wire, features with V-shaped bends reinforcing structure, the curvy welded mesh fence panel provides an economical solution for massive fencing projects. This is the best-selling fence type all over the world.

Wire mesh fences are the perfect fencing solution for security and privacy. Wire mesh fence consists of wire mesh panels, and posts, which make the fence easy to install. Welded Mesh fences have excellent anti-corrosion coating to ensure a long time use, also vary in design and color, are beautiful and generous, and can be agreed with the local environment and landscape according to the color deployment.



3D Curved Fence 3.0mm/4.0mm Diameter Welded Wire Mesh Fence 0

Material: Low carbon steel wire Q195 Q235
Panel Classification:
I. Black wire welded mesh + PVC coated;
II. Galvanized welded mesh + pvc coated;
III. Hot-dipped galvanized welded mesh + PVC coated.

(PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)

Surface Treatment of Wire Mesh Fence:

1. Hot Dipped Galvanized:
Through the Hot dipped galvanizing process after welding, a protective layer is formed on the steel surface. This coating can effectively prevent oxidation corrosion and prolong the service life of steel.

2. PVC Coating (Plastic Coating) or Powder Coating after galvanization.

We choose high-quality powder for spraying, which combines with the galvanized layer on the steel surface to form a more effective protective layer. It can better prevent the steel from oxidation and corrosion, Therefore, our fencing system can stay beautiful and strong for a longer time, and this treatment will make the fence more beautiful



3D Security Fence System Specifications
Panels Posts
Fence Height Panel Size Height/Width Number of Beams O/A Length Material and fixing clamps
Middle Corners
m mm   mm Material mm Clamps No. Material mm Clamps No.
2 2000 × 2515 2 2700 80 × 60 × 2.0 RHS 6 80 × 80 × 2.5 SHS 12
2.4 2400 × 2515 3 3100 80 × 60 × 2.0 RHS 7 80 × 80 × 2.5 SHS 14
3 3000 × 2515 3 3800 80 × 80 × 2.5 SHS 10 80 × 80 × 2.5 SHS 20



Advantages of PVC Coated Welded Wire Mesh Fence:

High strength, made of high-quality carbon steel wire and steel post, not easy to deform.
Easy to install, simple structure, reduce construction costs.
Anti-demolition and antitheft, the mesh and the column will be tightly connected by galvanized anti-theft screws, effectively preventing man-made destructive disassembly.
Anti-UV, Corrosion resistance, galvanized coating, or PVC coating can effectively prevent fence oxidation rust.
Many colors, according to your environmental needs, choose the right color fence.



V bends of Welded Mesh Fence Panel:

These V bends will significantly enhance the sturdiness of the mesh, and there are different numbers of curves on the safety fence panels depending on the height.
Height: 630 mm, 830 mm, 1030 mm, 1230 mm (2 curves).
Height: 1530 mm, 1730 mm (3 curves).
Height: 2030 mm, 2230 mm, 2430mm (4 curves).



3D Curved Fence 3.0mm/4.0mm Diameter Welded Wire Mesh Fence 1
