Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions

Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions
Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions

Large Image :  Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: QJ-813
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: loosed packed or palletized
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 10000 pcs one month
Detailed Product Description
Material: Galvanized Steel Plates, Stainless Steel Plates Thickness: 1.8 - 6.5 Mm
Mesh: 3 - 15 Mm Hole Surface Finish: Nature
Hole Shape: Slot Size: 1.0 X 2.0 M, 1.2 X 2.4 M
Highlight:

Slot Hole Perforated Metal

,

Galvanized Steel Slot Hole Perforated Metal

,

1.2 x 2.4 m Perforated Metal



Galvanized Steel Perforated Metal Mesh with Slotted Holes





Product descriptions

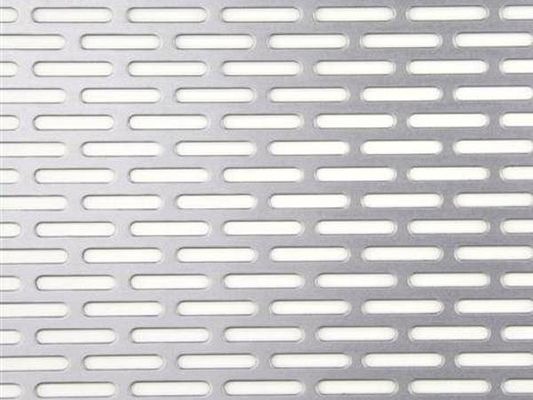

Slot hole perforated mesh has slender holes whose end is round or square. Slot hole perforated sheet plays an important role in screening and solid classification. And it is also widely used in decorative application.

  • Material: Low carbon steel, stainless steel, galvanized, aluminum, Brass and etc.
  • Weaving: Punching and etching, the thickness less than 0.5mm, need to be etched
  • Feature: Winding-resisting, aging-resisting, corrosion resisting
  • Hole shape: Round, long round, slot, oval, square, diamond, triangle, scale, hexangular and etc.
  • Thickness: 0.5mm-4mm, etc.

We can provide different sizes and shapes of perforated metal mesh according to customer requirements.

Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions 0

 The slot hole of perforated metal has two end shapes: square end and round end, each has straight and staggered patterns. The round end slot hole in staggered pattern is the most popular among all ranges of applications.



Round End 45° Slanted Pattern

Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions 1

Round End 45° Staggered Pattern
Item a (mm) b (mm) t (mm) t1 (mm) P (%)
Ld 8 × 40 – 44 × 22 8 40 44 22 31.6
Ld 8 × 45 – 44 × 22 8 45 44 22 35.8
Ld 8 × 56 – 54 × 54 8 56 54 54 14.9
Ld 10 × 25 – 26 × 26 10 25 26 26 33.8
Ld 10 × 30 – 25 × 25 10 30 25 25 44.6
Ld 10 × 30 – 30 × 30 10 30 30 30 30.9
Ld 10 × 56 – 54 × 27 10 56 54 27 36.9
Ld 12 × 39 – 38 × 38 12 39 38 38 30.3
Ld 16 × 60 – 80 × 50 16 60 80 50 22.6
Ld 20 × 45 – 42 × 42 20 45 42 42 46.1
Round End Staggered Pattern
Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions 2
Round End Staggered Pattern
Item a (mm) b (mm) t (mm) t1 (mm) P (%)
Lv 1 × 10 – 7 × 14 1 10 7 14 20.0
Lv 1.5 × 12 – 10.3 × 16 1.5 12 10.3 16 21.3
Lv 1.5 × 20 – 4 × 50 1.5 20 4 50 29.5
Lv 2 × 10 – 10 × 15 2 10 10 15 25.5
Lv 2 × 20 – 10 × 25 2 20 10 25 31.3
Lv 2.1 × 20 – 5 × 25 2.1 20 5 25 65.7
Lv 2.4 × 20 – 5 × 25 2.4 20 5 25 74.8
Lv 3 × 20 – 5.5 × 25 3 20 5.5 25 84.5
Lv 3 × 20 – 8 × 26 3 20 8 26 55.8
Lv 3 × 20 – 14 × 26 3 20 14 26 31.9
Lv 4 × 20 – 10 × 25 4 20 10 25 61.2
Lv 4 × 25 – 6.5 × 45 4 25 6.5 45 66.0
Lv 4.5 × 20 – 8 × 25 4.5 20 8 25 85.6
Lv 4.5 × 25 – 7 × 60 4.5 25 7 60 51.5
Lv4.75 × 20 – 15 × 25 4.75 20 15 25 48.1
Lv 5 × 20 – 20 × 25 5 20 20 25 37.9
Lv 5 × 30 – 9 × 35 5 30 9 35 91.8
Lv 6 × 20 – 24 × 24.8 6 20 24 24.8 37.7
Lv 6 × 20 – 26 × 40 6 20 26 40 21.6
Lv 7 × 20 – 13 × 47.5 7 20 13 47.5 41.9
Lv 7 × 25 – 12 × 30 7 25 12 30 91.4
Lv 7 × 25 – 30 × 30 7 25 30 30 36.5
Lv 8 × 40 – 26 × 47.5 8 40 26 47.5 49.6
Lv 10 × 40 – 20 × 50 10 40 20 50 75.7

Round End Straight Pattern

Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions 3



Round End Straight Pattern
Item a (mm) b (mm) t (mm) t1 (mm) P (%)
Lg 2.4 × 20 – 5 × 25 2.4 20 5 25 37.4
Lg 3 × 25 – 8 × 29 3 25 8 29 31.5
Lg 4.5 × 20 – 8 × 25 4.5 20 8 25 42.8
Lg 5 × 30 – 9 × 35 5 30 9 35 45.9
Lg 6 × 38 – 11 × 52 6 38 11 52 38.5
Lg 7 × 25 – 18 × 35 7 25 18 35 26.1
Lg 8 × 40 – 14 × 92 8 40 14 92 23.8
Lg 20 × 40 – 28 × 50 20 40 28 50 51.0
Lg 20 × 40 – 28 × 48 20 40 28 48 53.1


Square End Staggered Pattern - 1

Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions 4



Square End Staggered Pattern - 1
Item a (mm) b (mm) t (mm) t1 (mm) P (%)
Pv 2.6 × 25.2 – 13 × 30 2.6 25.2 13 30 33.6
Pv 3.5 × 21 – 14 × 30 3.5 21 14 30 35.0
Pv 5 × 10 – 14 × 20 5 10 14 20 35.7
Pv 5.4 × 16 – 16 × 20 5.4 16 16 20 54.0



Square End Straight Pattern - 2

Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions 5



Square End Straight Pattern - 2
Item a (mm) b (mm) t (mm) t1 (mm) P (%)
Pg 3.5 × 21 – 7 × 30 3.5 21 7 30 35.0
Pg 3.5 × 21 – 14 × 30 3.5 21 14 30 17.5
Pg 4 × 18 – 8 × 25 4 18 8 25 36.0
Pg 4.2 × 16 – 7 × 20 4.2 16 7 20 48.0
Pg 4.2 × 16 – 14 × 20 4.2 16 14 20 24.0
Pg 5.4 × 16 – 16 × 20 5.4 16 16 20 27.0
Pg 9.5 × 76.2 – 14 × 81 9.5 76.2 14 81 63.8
Pg 11 × 60 – 28 × 92 11 60 28 92 25.6
Pg 10.2 × 25.2 – 30 × 50 10.2 25.2 30 50 17.1
Pg 15 × 25 – 18 × 28 15 25 18 28 74.4
Pg 15 × 50 – 18 × 60 15 50 18 60 69.4
Pg 20 × 100 – 80 × 200 20 100 80 200 3.6




Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions 6

slot hole perforated hole sheets-S0003



Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions 7

slot hole perforated hole sheets-S0001



Galvanized Steel Slot Hole Perforated Metal With 1.2 X 2.4 M Dimensions 8

slot hole perforated hole sheets-S0002
