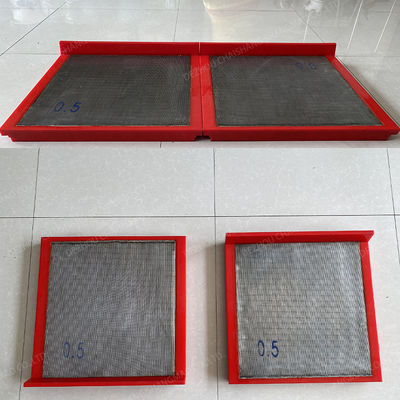

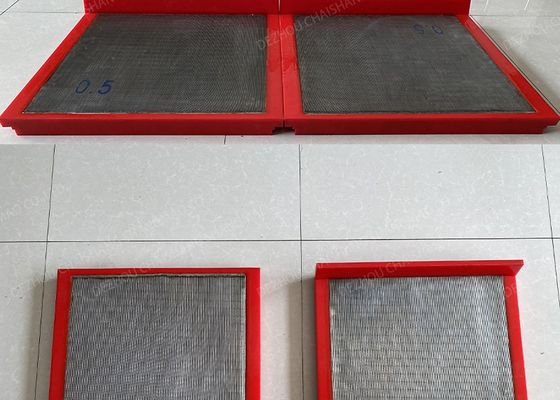

610*610 PU Polyurethane 80-95 Shore A Wedge Wire Mesh
Description
A modular polyurethane screen panel is a good choice for many screening circuits, especially well suited for wet or dry applications. Also available in a variety of formulations including softer compounds that minimize or eliminate blinding.
Products details
Applications: dry as well as wet applications
Size: 1ft*1ft, 1ft*2ft panels, also can make the size according to your special requirements, max length 3600mm panels.
Aperture options: Square, Slot, Round, Continuous slot, etc, size from 0.1mm to 170mm.
Main features:
1. Excellent abrasion resistance performance and long service life: 8`10 times longer than common wire mesh, 3 times longer than stainless wire mesh, and about 3.9 times longer than natural rubber. It has the best wear-resist performance in the mesh material.
2. Little work for maintenance, the polyurethane screen panel is heavy-duty structured and hard to be damaged under normal operation.
a) Capability to withstand heavy loads
b) High open area
c) No clogging
d) Perfectly smooth and flat surface
e) High precision of execution
f) Increased capacity and more precise separation, dewatering and filtration
g) Self-cleaning effect
h) Low pressure loss

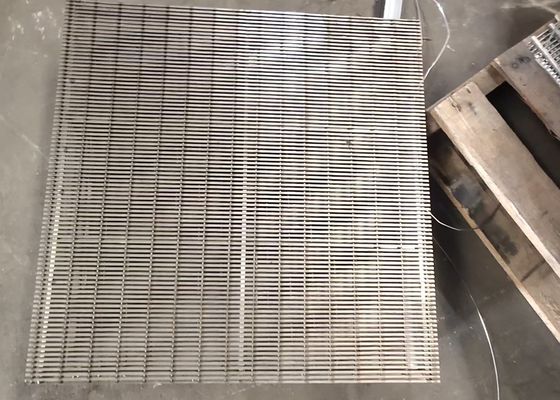

Options for Wedge Wire Screens
1. Slot openings from 0.02mm
2. Standard flatness of 3.175mm and greater
3. Available flat, curved or cylindrical
4. Axial or radial configuration of 152.40mm and up
5. Seamless cylinders from 25.40mm to 1066.80mm and up
| Mechanical Characteristics Of PU |
| Shore Hardness A |
35±5 |
45±5 |
55±5 |
65±5 |
75±5 |
85±5 |
95±5 |
| Tensle Strength(Mpa) |
>8 |
>10 |
>10 |
>25 |
>30 |
>35 |
>40 |
| Elongation(Mpa) |
>4 |
>4 |
>5 |
>6 |
>7 |
>8 |
>12 |
| Tear Strength (KN/m) |
>8 |
>8 |
>15 |
>30 |
>50 |
>70 |
>90 |
| Elongation break (%) |
>700 |
>650 |
>600 |
>500 |
>450 |
>400 |
>400 |
| Compression set (%) |
<15 |
<15 |
<15 |
<15 |
<20 |
<25 |
<25 |
| Abrasive Loss 1mm |
<50 |
<50 |
<50 |
<50 |
<50 |
<50 |
<50 |
| Aklon wear(cm3/1.61km) |
<0.08 |
<0.08 |
<0.08 |
<0.06 |
<0.05 |
<0.05 |
<0.05 |
| Rebound(%) |
>15 |
>15 |
>15 |
>15 |
>20 |
>25 |
>25 |
| Density |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
| Temp(ºC) |
-50~100 |
-50~100 |
-50~100 |
-50~100 |
-50~100 |
-50~100 |
-50~100 |
3. Low noise: our polyurethane and rubber screen media can reduce that noise level by as much as 9 decibels.
4. Variety of fastening options including Pin-Style, Pin and Sleeve, and Bolt Down, clips-on. Whether you need maximum holding power, ease of installation and removal, optimum versatility, or a combination of all of these, we have a fastening system to meet your needs.
