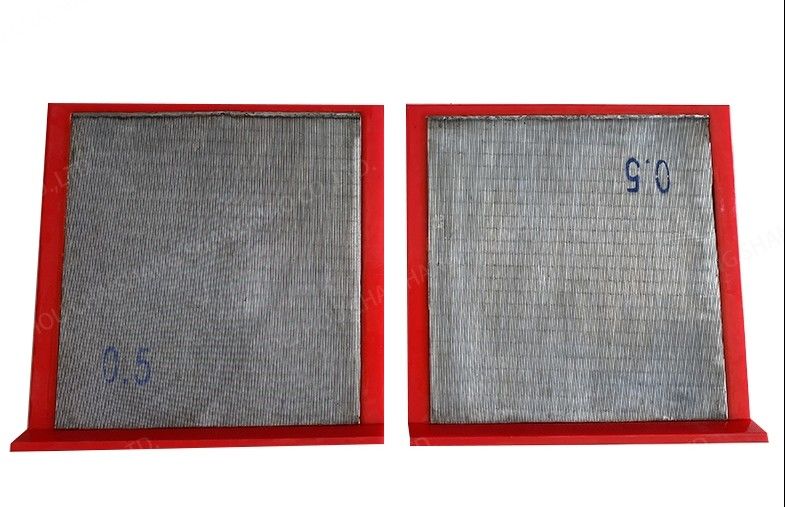

Mining Wedge Wire Screen Low Pressure Loss 0.02mm-12.7mm Opening Range

Mining Wedge Wire Screen Low Pressure Loss 0.02mm-12.7mm Opening Range

For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high-quality production, fast parts changes and a longer part wear life will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.

Wedge Wire Screens Increased efficiency Feature

a) Capability to withstand heavy loads
b) High open area
c) No clogging
d) Perfectly smooth and flat surface
e) High precision of execution
f) Increased capacity and more precise separation, dewatering and filtration
g) Self-cleaning effect
h) Low pressure loss

Options for Wedge Wire Screens

1. Slot openings from 0.02mm

2. Standard flatness of 3.175mm and greater

3. Available flat, curved or cylindrical

4. Axial or radial configuration of 152.40mm and up

5. Seamless cylinders from 25.40mm to 1066.80mm and up

Wedge Wire Screens Specifications

Wedge Wire Screens Products

Wedge wire screen is the most commonly using screen for filtration and separation in liquid/gas, water wasting, mining, food and so on.

They have flat type, cylinder type, basket type and slope type

according to the screen type. Aslo called flat welded screen panel, cylinder wedge screen and sieve bend screen. They are aslo called woven wedge wire and welded wedge wire according to the weaving type, such as crimped wedge wire, welded wedge screen panels.

Our main wedge wire screen are Cylindrical Screens and Flat Panels.

1.Our Cylindrical Screens, which created by wrapping precision profile wires cylindrical around longitudinal placed support rods, provides superior weld strength and accurate slot openings to maximize the available open area.

2. Our wedge wire flat screen panels are used on vibratory screens for dewatering, draining and desliming in Mining Industry.

Wedge wire screens consist of profile wire and support rods with the materials of galvanized steel, low carbon steel and stainless steel 304, 316.

Wedge Wire Screens Applications

Applications for wedge wire screen panels include cross flow sieves, vibrating screen decking,mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, food processing, and flooring for malt kiln, germination, and grain drying.
