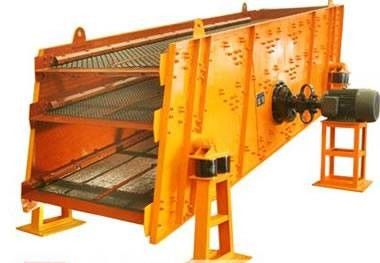

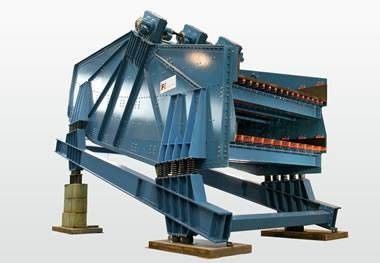

Double Deck Screens (Model# Tyler H-40-X). For Granulation Plant
Designed with a larger-mesh top box and a smaller-mesh rocking sifter, the double decker allows you to sift through two mesh sizes simultaneously.
The upper box is clamped into place on top of the bottom sifting screen.
After the material remaining in the top box is processed, the top box is easily unclipped and removed, leaving the sorted smaller matrix in the bottom rocking sifter - thus aiding in the identification of small objects.
DOUBLE DECK SCREENS (MODEL# TYLER H-40-X).
- Screens for S-7508 (top).
- High tensile carbon steel.
- Width 4 feet
- Length: 5 feet, Tyler 5.
- Wire diameter: 0.054" (opening : 0.156").
- Slots RA with hooks on 5" side metal reinforced with 8 holes at center 22mm.
Model
DOUBLE DECK SCREEN TOP MESH
======================
MATERIAL : HIGH TENSILE CARBON STEEL
WIDTH : 4 feet
LENGTH : 5 feet
TYROD No. : 9440 , TYLER 5
WIRE DIA. : 0.054" (OPENING : 0.156") , SLOT RA = 2"
WITH HOOKS ON ( 5 FEET) SIDE METAL REINFORCED WITH 8
HOLES 22mm DIAMETER AT CENTER
TAG No. : S-7508 & S-7608
LOCATION : GRANULATION PLANT
Model
DOUBLE DECK SCREEN BOTTOM MESH
==========================
MATERIAL : HIGH TENSILE CARBON STEEL
WIDTH : 4 feet
LENGTH : 5 feet
TYROD No. : 9440 (TYLER 9)
WIRE DIA : 0.063" (OPENING 0.080") 2" SLOTS RA
WITH HOOKS ON (5 FEET) SIDE METAL REINFORCED WITH 8
HOLES 22mm DIAMETER AT CENTER .
TAG No. : S-7508 , S-7608
LOCATION : GRANULATION PLANT
TOP POLISHING SCREENS FOR S-7509.
- Type: 722A.
- Material: St. Steel 316, PVC edge eyeleted every 100mm.
- Length: 4316mm.
- Width: 2010mm.
- Aperture: 4 × 7mm.
- Wire diameter: 1.6mm.
